Guangzhou MS Lighting Co., Ltd.(China) >> LED Scan Light / LED Effect Light

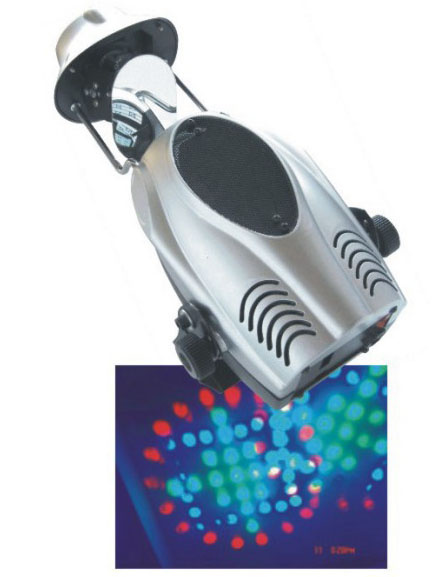

LED Scan Light / LED Effect Light

Name: LED Scan Light / LED Effect Light
Brand: China-Manufacturer-Directory.com
SKU: 677810055
Availability: InStock
Rating: 4.3 (76 reviews)

Supplier:	Guangzhou MS Lighting Co., Ltd.(China)
Price:	US $ 28/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF

Product Specifications

Prod Model:	LED 09
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

LED Light, LED Disco Light, LED Effect Light, LED Scan Light, DMX LED Light, Professional Lighting, Stage light, Scan Light, Disco Light

Model: LED 09
Voltage: AC 110V/220V 50Hz/60Hz
Power: 50W
Light source: LED Red, Green, Blue
The quality of light: 5mm LED 64LED(R32. B20. G12)
Function: Color change, sound control, patterns change according to music, patterns scan
Control signal: Controller with DMX 512(6CH)
Applicable occasion: Dance hall, stage, bar
1. DMX-512 control
2. Dip switches Function
Notice: In Master-slave, Master can be Auto or Sound, Slave with master running in-phase.

CH	Value	FUNCTION
CH 1 A Pattern	0	Right motor reversal rotation
	1-200	0-360° Control1.8° choose address
	201-255	Right motor positive direction rotation
CH 2 B Pattern	0	Left motor reversal rotation
	1-200	0-360° Control1.8° choose address
	201-255	Left motor positive direction rotation
CH 3A Pattern Speed	0-255	Motor speed adjustment, fast to slow
CH 4B Pattern Speed	0-255	50 pattern to choose in right
CH 5A Motor Speed	0-255	50 pattern to choose in Left
CH 6B Motor Speed	0-255	Pattern rotation speed

ON	OFF	Function
	1, 2, 3, 4, 5, 6, 7, 8, 9, 10	1-50 pattern cycle auto running
9	1, 2, 3, 4, 5, 6, 7, 8, 10	Sound activity, Sensitive adjustment, (Delay & shut in not sound)
10	1, 2, 3, 4, 5, 6, 7, 8, 9	DMX-512---6 CH Control ID=1
5, 10	1, 2, 3, 4, 6, 7, 8, 9	DMX-512---6 CH Control ID=2
6, 10	1, 2, 3, 4, 5, 7, 8, 9	DMX-512---6 CH Control ID=3
5, 6, 10	1, 2, 3, 4, 7, 8, 9	DMX-512---6 CH Control ID=4
7, 10	1, 2, 3, 4, 5, 6, 8, 9	DMX-512---6 CH Control ID=5
5, 7, 10	1, 2, 3, 4, 6, 7, 8, 9	DMX-512---6 CH Control ID=6
10	1, 2, 3, 4, 5, 6, 7, 8, 9	ID=1 CH1 Control A Pattern-CH6 Control LED Speed
1, 10	2, 3, 4, 5, 6, 7, 8, 9	ID=1 CH2 Control A Pattern -CH7 Control LED Speed
2, 10	1, 3, 4, 5, 6, 7, 8, 9	ID=1 CH3 Control A Pattern-CH8 Control LED Speed
1, 2, 10	3, 4, 5, 6, 7, 8, 9	ID=1 CH4 Control A Pattern -CH9 Control LED Speed
3, 10	1, 2, 4, 5, 6, 7, 8, 9	ID=1 CH5 Control A Pattern -CH10 Control LED Speed
1, 3, 10	2, 4, 5, 6, 7, 8, 9	ID=1 CH6 Control A Pattern -CH11 Control LED Speed
2, 3, 10	1, 4, 5, 6, 7, 8, 9	ID=1 CH7 Control A Pattern -CH12 Control LED Speed
1, 2, 3, 4, 5 6, 7, 8, 10	9	slave (Master-slave), 17CH

MS Lighting is a professional stage lighting manufactory in China, Our products are LED Light, moving head light(spot/wash, 150W-1200W), DMX scannner, effect lights, disco lights, laser etc.

Our products are very popular by professional from all walks of life; It makes the perfect stage effect with the others stage lighting products. We have excellent quality products and the best after-sales service.

The aim of our work is your satisfaction

This is the good factory that your first choice.
