Guangzhou MS Lighting Co., Ltd.(China) >> LED Stage Light/LED PAR 64 (LED 1002B)

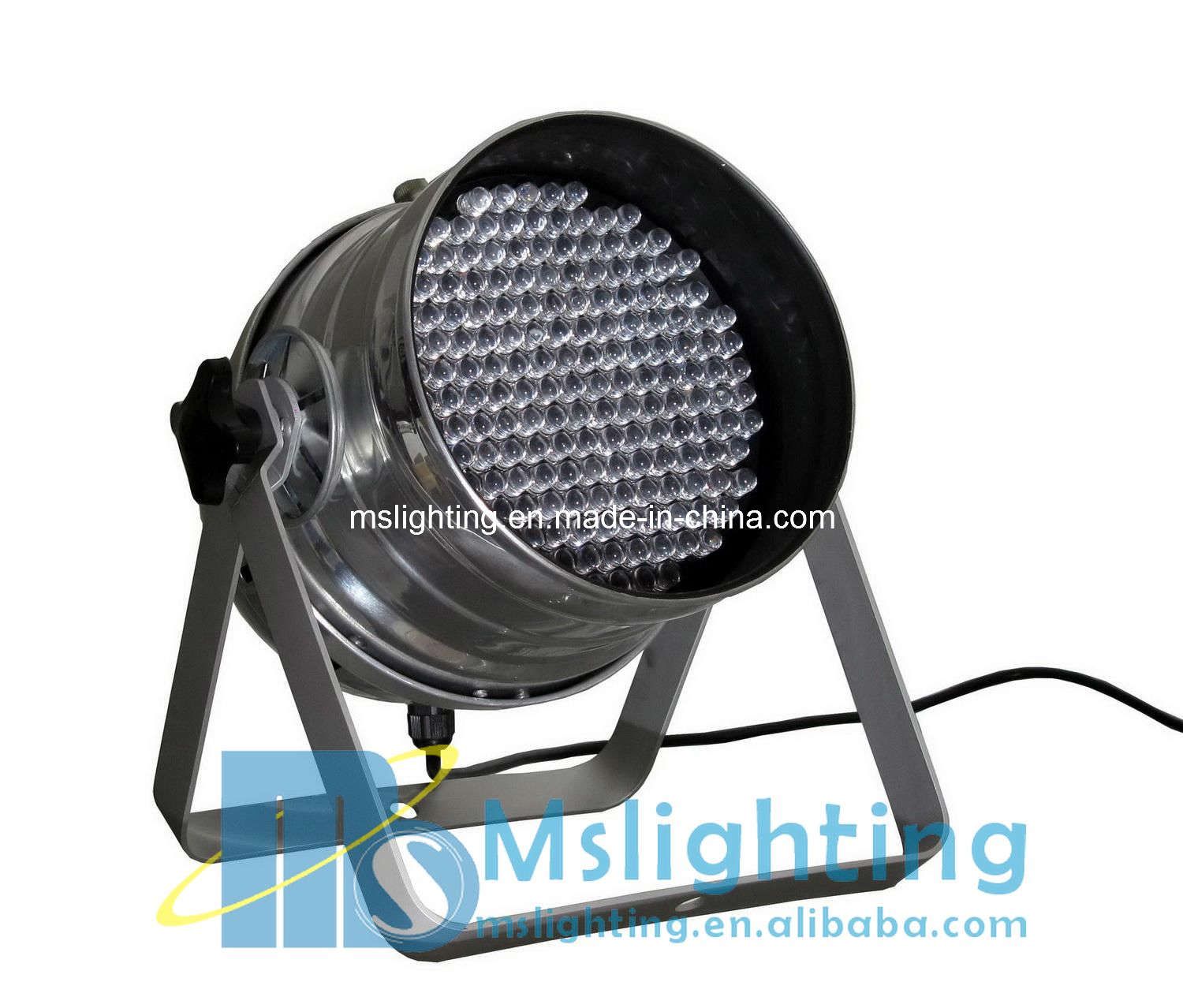

LED Stage Light/LED PAR 64 (LED 1002B)

Name: LED Stage Light/LED PAR 64 (LED 1002B)
Brand: china-manufacturer-directory.com
SKU: 675737145
Availability: InStock
Rating: 4.9 (37 reviews)

Supplier:	Guangzhou MS Lighting Co., Ltd.(China)
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	LED 1002B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	RGB/RGBW/RGBA/RGBWA
Waterproof:	Not Waterproof
Shell Material:	Aluminium Alloy
Electric Current Type:	AC
IP Rating:	IP20
Life:	80000h
Emitting Color:	Full Range
Certification:	LVD
Type:	PAR64
Diffuser:	Tempered Glass
Input Voltage:	220V
LED Chips:	CREE
Power:	30W

Product Description

This light adopts in 177*F10mm LED as light sources. It is new generation green high technology product. It projects long distance, big angle, and abundant colors. It brings people new vision sense, which makes people feel they are in a changeable color world.

The cover is aluminum, artistic generosity, with excellent polishing. The nice design is good for dispelling heat very well and long life. Though distance from the light fixture to the controller is 20m, the effect is still very good. Project angle can be adjusted randomly. The base is with holes, which are facility for orientation and fitting, electronic dimming from 0-100% (no color change) high-speed stroboscopic white or color change; Maximum ambient temperature of 40degree, the largest lamp temperature 60degree.

It is widely used in stage show, casino, advertisement, outside wall of mansion, etc. It is controlled by controller with DMX; The effect can be gradual change, jump change, color glitter, random change, and alternate gradual change and so on. Perfect cast light beam provides architecture designers and light designers abundant imagine space.

Specification:
Model	LED 1002B1 (177X Ø10)	LED 1002D1(177X Ø10)
DMX Channel	6CH/3CH	6CH
Control panel	Digital 4 characters alphanumeric	Dip Switch
Housing Material	Aluminum (Short/Long)
Housing Color	Black/Silver
Aperture Cover	Aluminum
Operating voltage	90-254V AC
LED current	20mA
Control Modes	Direct DMX 512, Master/slave. Stand alone. Sound Activity, Sound activity synchronization
Connector	3-PinXLR (In and Out)
NO.of LED	177 LEDS(60R/ 57B /60G)
LED Life Time	80000-100,000 hours
Beam Angle	25°/30°
Power Consumption	30W
Light Projecting Distance	10-15M
IP Rating	Indoor
Operating Temperature	-20 ºC +45 ºC
Dimensions	L260xØ195 mm(Short), L385xØ195 mm(Long)
Weight	2.00KGS/2.5kgs
Packing Dimension	255255365mm (Short) 255255465mm (Long)
Gross Weight	2.50KGS/3.00kgs
Compatibility:
1. Color Range : 16.7 million additive RGB colors; continuously variable intensity (256×256×256=16777216)
2. Dimming 0-100%with regulated constant color control
3.Strobe: 10 Flashed per second (any color)
4. Function: it is max mix color, color change, color's gradual change, flash, speed/luminance the adjustable and Save function.
5. 6channel Mode and 3channel Mode would change each other in every light
6. 6CH Mode DMX Value	CH 1 _ General dimmer (1-255, from dart to light)
	CH 2_ Red (1-255, Dimmer , from dart to light)
	CH 3 _ Green (1-255, Dimmer , from dart to light)
	CH 4_Blue (1-255, Dimmer , from dart to light)
	CH 5_ Strobe & Color change/ color gradual change open
	CH 6 _Strobe & Color change& color gradual change's speed adjustment (1-255, Speed adjustment, from slow to fast)
7. 3CH Mode DMX Value	CH 1_ Red (1-255, Dimmer, from dart to light)
	CH 2 _ Green (1-255, Dimmer,from dart to light)
	CH 3_Blue (1-255, Dimmer,from dart to light)
8. Control modes	0: Sound activity mode
	1. DMX control mode
	2. Adjusting the color manual
	3. Adjusting the brightness manual
	4. Adjusting the strobe manual
	5. Adjusting the strobe speed manual
	6. Master-slave control mode, as the master
	7. Sound activity synchronization mode
	8. Adjusting color's gradual change manual
	9. Adjusting gradual change's speed
9. Thermal	Maximum ambient temperature: 40°
	Maximum housing temperature: 60°

MS Lighting is a professional stage lighting manufactory in China, Our products are LED Light, moving head light(spot/wash, 150W-1200W), DMX scannner, effect lights, disco lights, laser etc.

Our products are very popular by professional from all walks of life; It makes the perfect stage effect with the others stage lighting products. We have excellent quality products and the best after-sales service.

The aim of our work is your satisfaction

This is the good factory that your first choice.
