Product Specifications
| Prod Model: |
LKSD1000O |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP54 |
| Pixel Configuration: |
1R, 1G, 1B |
| Pixel Pitch: |
10mm |
| Display Function: |
Video Display |
| Scanning Mode: |
1/4 Scan |
| Certification: |
RoHS |
| Pixel Density: |
10000 dot / m² |
| Average Power Consumption: |
780W/Sqm |
Product Description

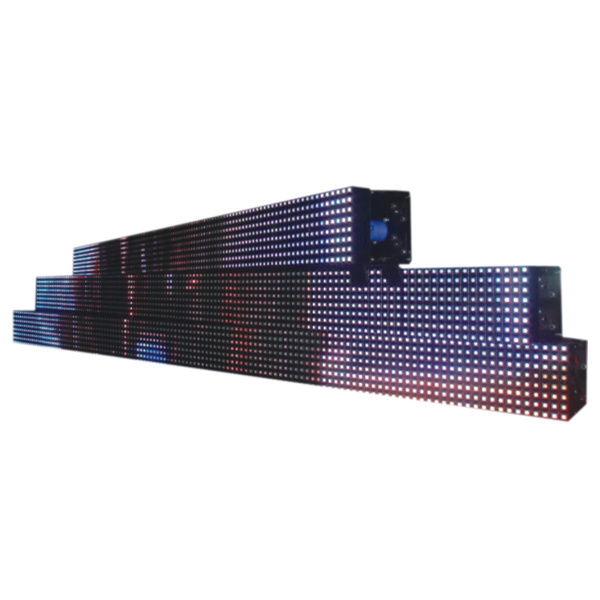

Led staircase display
Features:
Dot matrix module and stable cabinet, high reliability &
Brightness, both indoor & outdoor use, wide viewing angle.
1. Light weight, easy for installation and transportation.
2. Outdoor use, IP65, stable cabinet.
3. High brightness, the brightness is > 6000 cd/sqm.
4. Dot matrix module, high reliability, can be installed
As the staircase and no worry about hitting the surface.
5. Indoor usage is also approved.
|
Pixel pitch |
10mm |
|
Pixel configuration |
1R1G1B(Dot) |
|
Size of block module |
160mm x 160mm |
|
Resolution of module |
16 x 16 |
|
Density |
10000dots/m2 |
|
Module power |
20w |
|
Best viewing distance |
12m |
|
Best viewing angle |
140 |
|
Max power consumption |
<780W/ m2 |
|
Colors |
>16.7M |
|
Gray scale |
14bits |
|
Color temperature |
6500K |
|
Control method |
Synchronization |
|
Driving device |
Constant current |
|
Driving method |
1/4 scanning |
|
Frame frequency |
>60HZ |
|
Refresh frequency |
>960HZ |
|
Brightness |
4500cd/m2 |
|
Working voltage |
AC220V/110V±10% |
|
Working temperature |
–20° C~50° C±10% |
|
Out-of control point |
0.0001 |
|
Brightness control |
256 grade |
|
IP grade |
IP54 |
|
Mtbf |
10,000Hours |
|
Life span |
100,000Hours |
LightKing Tech Group Co., Ltd, which was founded in 2004 with registered capital$62.67 million, is a state-level High-Tech enterprise. We headquarter at Fuyong town, Shenzhen, which is a national Optoelectronic base of China.
Lightking specializes in the R&D, production and marketing of LED Display and LED lighting products. After years of developing, now we have more than 30, 000sqm workshop and nearly 1000 employees. Our main product lines include Indoor full color LED display, Outdoor full color LED display and LED lighting products, which are widely used in financial industry, sports field, advertising industry, transport and television industry.
LightKing is equipped with advanced equipments such as, ASM encapsulation workshop, Wave-peak Soldering Machine, Hot Air Reflow Soldering Machine, SMD Machine, Automatic DIP Assembly Machine. Moreover, we have independent R&D DEP., laboratory and testing DEP, which further enhance the quality of our products. With the development of LightKing, we keep on investing in equipments maintaining and updating and in recruiting skilled technicians. In addition, our R&D team possesses a crew of 20 employees and most of these developing engineers have more than 10 years experience in LED industry. They are the base support to our new products development and customize products according to customers' requests.
Lightking had devoted to "Market orienting" since it was set up and insisted on researching and developing characteristic products to break the price barrier of traditional 3 in 1 full color LED displays. And we have made a few achievements since then and now we have obtained several items of patents with the intellectual right properties.
We have passed the ISO9001: 2008 quality management system. And our products have passed the national and international quality certificates, including UL, CE, RoHS, FCC, CCC. Further more, we are engaging in Total Quality Management "TOM" to further improve the quality of our products. We have been shipping qualified products and services to more than 100 countries and regions all over the world, such as in the USA, France, England, German, Iran, Singapore, Malaysia, Mexico etc.
Seeing is believing! We welcome all friends from all over the world, both new and old, to come and visit our company. LightKing will never upset you.
