LED Street Lamp Solar Light (RHT-SL04)
Product Specifications
| Prod Model: |
RHT-SL04 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pole: |
10m |
| Lamp Power: |
90W |
| Solar Panel: |
2*140W |
| Battery: |
2*180ah |
| Lamp Body: |
Aluminum Alloy |
| Charging Time (',H): |
6 |
| Usage: |
Street |
| IP Rating: |
IP65 |
| Voltage: |
12/24V |
| Certification: |
RoHS |
| Light Source: |
LED Lamp |
| Cell Type: |
Gel-Battery |
Product Description

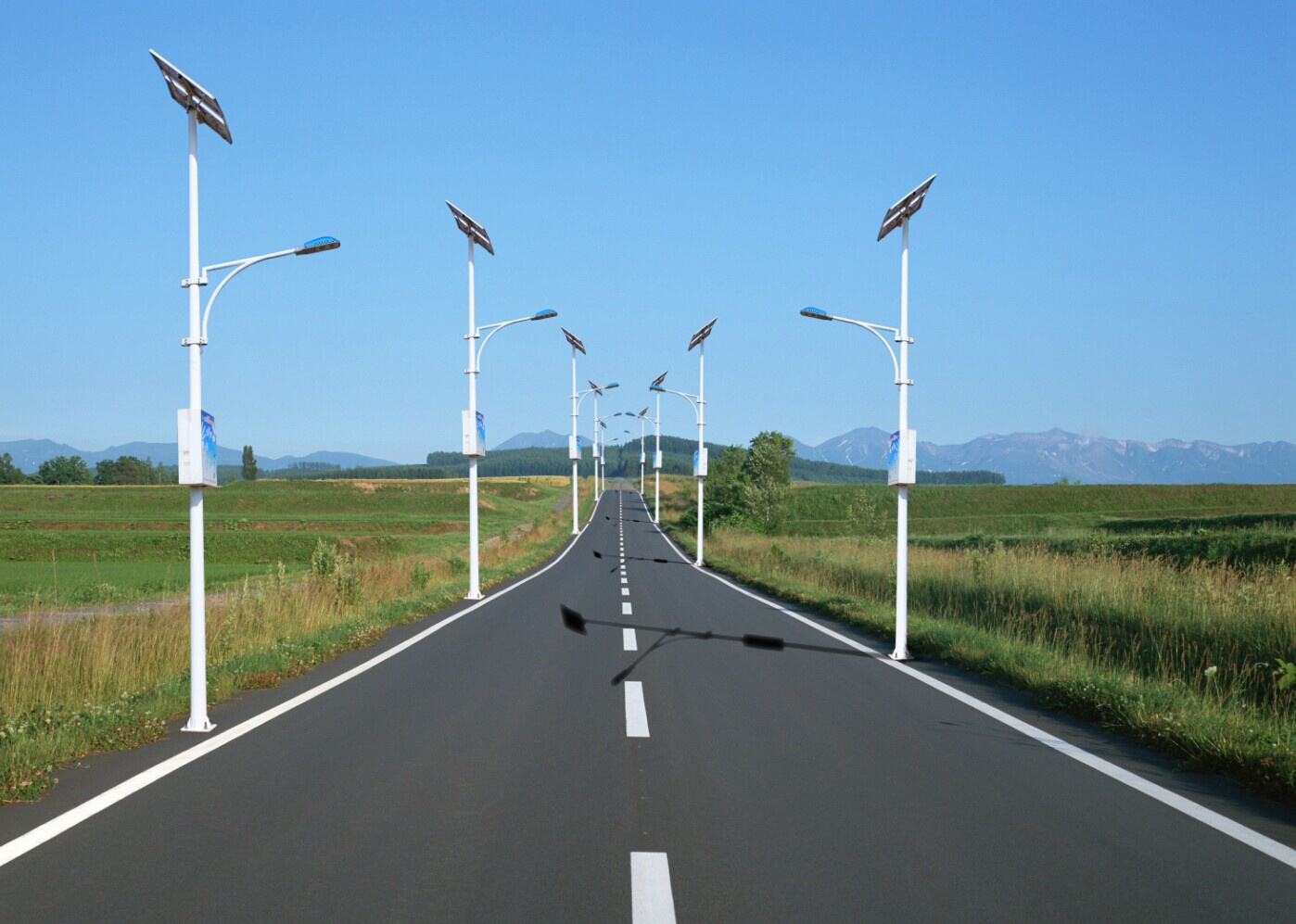

LED Solar Street Light
1. Pole and solar panel bracket
Height: 10m.
Diameter: 80/180mm, 4mm thickness,
Flange: 400*400*20mm
Hot deep galvanized plastic electrostatic spraying,
Working life≥ 25 years
2. LED Lamp
Lighting source: 90W
Aluminum alloy die-casting molding with toughened glass
Working life>50000 hours.
3. Solar Panel
Maximum power: 2*140W
Polysilicon solar panel
Working temperature: -40º C--85º C
Power tolerance: ± 5%
Working life ≥ 20 years
4. Battery
2*180AH
Gel-battery
Working life≥ 3 years
5. Battery Box
2*180AH battery box/engineering plastics,
Working life≥ 20 years
6. Controller
10A/24V working life≥ 3 years
Protection:
· Overheating · Over discharging · Over charging
· Load overload · Load short circuit
· PV reverse polarity · Battery reverse polarity
1. The solar street light system configurations can be customized based on client's specific project requirement and weather condition.
2. The batteries are suggested to be placed in battery box and buried in a underground cement pit. In this way, it can avoid overhigh temperature due to sunshine exposure or too cold weather in Winter, wateproof and theftproof, easy for replacement in late period.
3. The pole patterns are standardized type, practical and economical, which can also be customized as per client's specific requirement.
4. All parts are certified by CE and ROHS certificates, meeting Europe standard.
|
No. |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
|
Lamp power |
30w |
40w |
50w |
60w |
70w |
80w |
100w |
120w |
150w |
180w |
|
Color Temperature |
3000K/4500K/6000K |
3000K/4500K/6000K |
3000K/4500K/6000K |
3000K/4500K/6000K |
3000K/4500K/6000K |
3000K/4500K/6000K |
3000K/4500K/6000K |
3000K/4500K/6000K |
3000K/4500K/6000K |
3000K/4500K/6000K |
Lamp Luminous Efficiency
(lm/w) |
95-105 |
95-105 |
95-105 |
95-105 |
95-105 |
95-105 |
100-108 |
100-108 |
100-108 |
100-108 |
|
CRI (Ra>) |
72 |
72 |
72 |
72 |
72 |
72 |
72 |
72 |
72 |
72 |
|
Power Factor |
0.95 |
0.95 |
0.95 |
0.98 |
0.98 |
0.98 |
0.98 |
0.98 |
0.98 |
0.98 |
|
Input Voltage(V) |
90-264 |
90-264 |
90-264 |
90-264 |
90-264 |
90-264 |
90-264 |
90-264 |
90-264 |
90-264 |
|
Beam angle |
130°×60° |
130°×60° |
130°×60° |
130°×60° |
130°×60° |
130°×60° |
130°×60° |
130°×60° |
130°×60° |
130°×60° |
|
Working Temperature(ºC) |
-40 - 60 |
-40 - 60 |
-40 - 60 |
-40 - 60 |
-40 - 60 |
-40 - 60 |
-40 - 60 |
-40 - 60 |
-40 - 60 |
-40 - 60 |
|
IP Rating: |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
