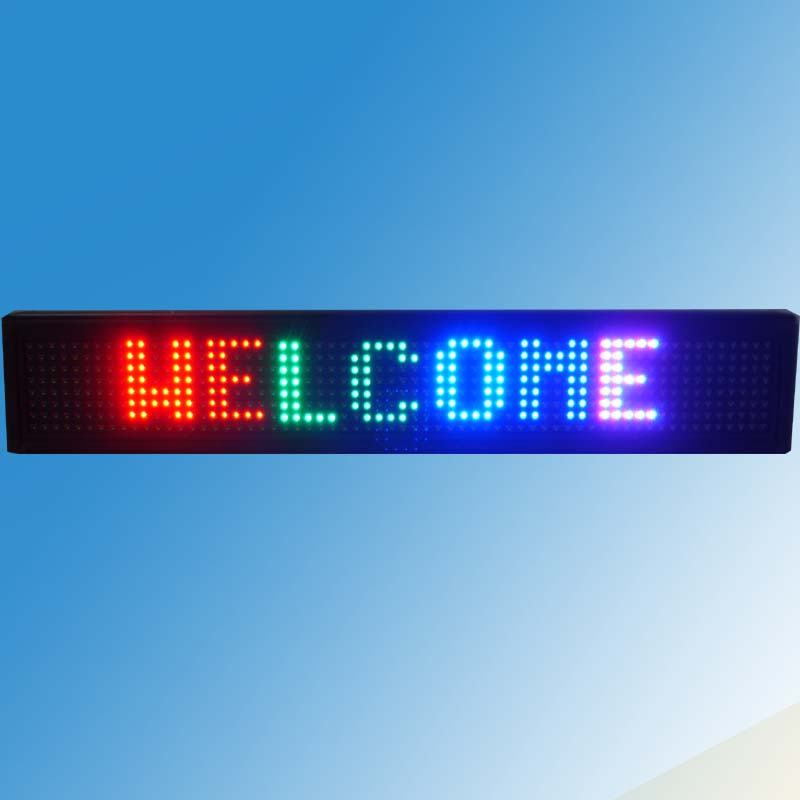

LED Timer Display

Product Specifications

Prod Model:	P8,P10,P12,P16,P20,P25,P31.25
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Outdoor
Tube Chip Color:	Full Color
Display Function:	Video
Certification:	CE

Product Description

Products introduction: LED timer display
Outdoor full color LED display:
Pixel pitch: 10mm

Pixel pitch: 12mm
Pixel pitch: 20mm
Pixel pitch: 20mm
Environment: Outdoor
Resolution: 2, 500 dots/m2
Display brightness: >5, 500CD/m2
Brightness adjustment: 256 manual and eight automatic grades
Viewing angle: >110 degree (left and right viewing angle)
Viewing distance: 10 to 300m
Grey scale: Monochrome 12-bit
Display color: 36-bit
Exchange frame speed: >60fps
Refresh frame frequency: 360Hz
Screen body power consumption:
Maximum 900W/m2
Average: 380W/m2
Screen body weight: Less than 65kg/m2
Control distance: 120m (without relay)
MTBF: >10, 000 hours
Operating platform: Windows 2000, XP and Vista OS
Connector: America AMP
Working temperature: -20 to +60 degrees Celsius
Working humidity: 10 to 95%RH
Unit box size: 1, 280 x 960mm
Pixel pitch: 25mm
Pixel pitch: 31.25mm

Each pixel contains two red, one pure green, one pure blue and total four LEDs
Pixel pitch: 16mm
Environment: Outdoor
Resolution: 3, 906 dots/m2
Display brightness: >7, 500CD/m2
Brightness adjustment: 256 manual and eight automatic grades
Viewing angle: >110 degree (left and right viewing angle)
Viewing distance: 10 to 200m
Grey scale: Monochrome 12-bit
Display color: 36-bit
Exchange frame speed: >60fps
Refresh frame frequency: 360Hz
Screen body power consumption:
Maximum 1000W/m2
Average: 500W/m2
Screen body weight: Less than 65kg/m2
Control distance: 120m (without relay)
MTBF: >10, 000 hours
Operating platform: Windows 2000, XP and Vista OS
Connector: America AMP
Working temperature: -20 to +60 degrees Celsius
Working humidity: 10 to 95%RH
Unit box size: 1, 024 x 768mm

Outdoor double and single
Pixel pitch: 8mm
Pixel pitch: 10mm
Pixel pitch: 12mm
Pixel pitch: 16mm
Pixel pitch: 20mm
Pixel pitch: 25mm
Pixel pitch: 31.25mm



Indoor FULL COLOR:
Pixel pitch: 4mm
Pixel pitch: 6mm
Pitch: 7.62mm

1): With pitch of 7.62mm LED display
2): Optional communication ways: RS232, RS485, USB, TCP/IP, Wireless
3): Easy entry: PC entry or Remote control entry
4): Far viewing distance and wide viewing angle
5): As one ready-to-install unit, sign can be easily mounted to wall or ceiling
6): Ability to display text
7): Ability to display graphic
8): Ability to display time
9): Ability to display countdown
10): Ability to display user logo
11): Ability to display temperature
12): Allows users make fonts and graphic by themselves
13): Available for mono-color and multi-color
14): Delivers 28 messaging presentation ways
15): 5 messaging moving speed
16): 10 messaging stop time
17): Offer password security
18): Brightness adjustable
19): Open protocol

Pixel pitch: 8mm


Indoor double and single
Pixel pitch: 4mm Pixel
Pitch: 4.76mm
Pixel pitch: 7.62mm



Sem FULL COLOR:
Pixel pitch: 10mm
Pixel pitch: 12mm
Pixel pitch: 16mm
Pixel pitch: 25mm
Pixel pitch: 31.25mm
