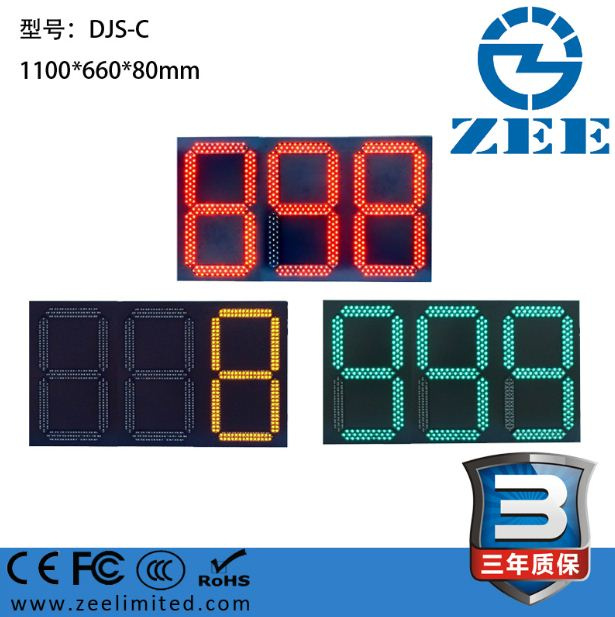

Product Specifications
| Prod Model: |
DJS-C-3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| IP Rating: |
IP65 |
| Impact Resistance: |
IR3 |
| Vibration Test: |
Passed |
| Dimension: |
1100X660X80mm |
| Application: |
Road |
| Light Source: |
LED |
| Certification: |
RoHS |
| Housing Material: |
Non-Metallic Shell |
| Control Method: |
Timing Control |
| Type: |
Count Down Timer |
| Function: |
Vehicle Traffic Ligh |
| Patterns: |
Tri-Color 3 Digits |
| Mask Specification: |
Retangular |
Product Description
Features:
Advanced optical system combined with high bright LEDs to meet maximum requirement of light intensity and visual angle
Controlled by monolithic processor to completely synchronize with controller, and indicate red, yellow and green signal light correctly to guarantee traffic safety
Minimum display time 1 second and maximum display time 99 seconds, 199 seconds and 999 seconds by A, B and C type respectively
Made of Die-cast aluminum alloy with elegant appearance, rugged construction and excellent sealing performance
Specification:
Model |
Luminous components |
Operating voltage |
Power consumption |
Light intensity |
Luminous color |
Character height |
Digits of strings |
Visual distance |
Max display time |
Material |
DJS-C-3 |
LED |
220V(110V)50 /60 HZ |
<40W |
≥4000cd/ m2 |
R/Y/G |
20inch |
Two digits |
≥200m |
999seconds |
Armor plate |
Shenzhen ZOOFER Electric Engineering Co., Ltd (ZEE) was founded by two Chinese guys, who has more than 10 years of Traffic Light industry experience, a profound background in international business and specializes in LED Traffic Light technologies.
ZEE is located in Shenzhen, China. With years of local expertise, ZEE specializes in OMR LED Traffic Light Kits, LED Traffic Light Module, High Power LED Traffic Light Kits, High Power LED Traffic Light Module, Traffic Count-down Timer and Traffic Controller.
Currently ZEE is represented by approx. 20 employees in 5 places all over China. Combined with our flexibility philosophy, this ensures optimum reaction times for debugging or the removal of damages caused by road accidents
Since December 2014 ZEE has been committed to road safety with innovative quality products and systems for over 8 years. LED-based signaling technology for traffic lights and variable message signs as well as high-tech solutions for traffic telematics are the core competencies of ZEE.
ZEE offers a wide-variety of Traffic Light and Service forms to meet the needs of our customers. You can not only choose from our finished products but also request to customize according to the customer demand.
