| Price: | US $ 850/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 1/Piece |
| Pay Type: | T/T |

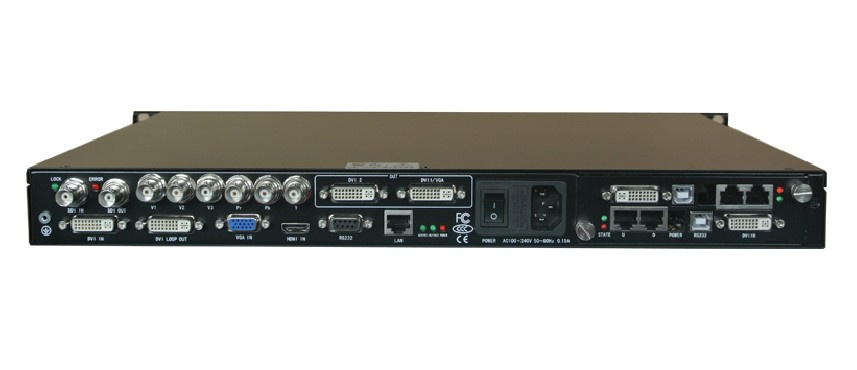

| Prod Model: | CK4L3000P |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: | Video Processor |
Input signal | |||
CVBSx 3 | BNC, female, CVBS x 3, support PAL/NTSC, impedance: 1V ( p_p ) /75Ω | ||
VGAx 1 | VGA (15 pin HD), VGA, 800×600×60Hz, 1024×768×60Hz, 1280×720×60Hz, 1280×1024×60Hz, 1366X768×60Hz, 1400X1050×60HZ, 1600X1200×60Hz, 1920×1080×60Hz | ||
DVIx 2 | DVI-I (DB 24+5), Digital HD, HDMI 1.3, (only DVI 2 is HDCP compaliant) | ||
YPbPr/YCbCrx1 | BNC, female, Analog HD x1, 720×480i×59.94Hz/60Hz, 720×480p×59.94Hz/60Hz, 720×576i×50Hz, 720×576p×50Hz, 1920×1080p×50Hz/59.94Hz/60Hz , 1920×1080i×50Hz/59.94Hz/60Hz YPbPr Impedance extent: Y= -0.3V ~ +0.7V ( p_p ) / 75Ω Pb= -0.35V ~ +0.35V ( p_p ) / 75Ω Pr= -0.35V ~ +0.35V ( p_p ) / 75Ω | ||
SDIx1(optional) | BNC, SDI/SD-SDI, HD-SDI, 3G-SDI, SDI/HDSDI format 720×480i×59.94Hz/60Hz, 720×576i×50Hz, 1280×720p×50Hz/59.94Hz/60Hz, 1920×1080i×50Hz/59.94Hz/60Hz | ||
Output signal | |||
VGAx 1 | VGA x 1 (15 pin D-Sub), for monitoring, R , G , B = 0.7 V ( p_p ) / 75Ω | ||
HDMIx 2 | HDMI-A, female, DVI/HDMID (1920 x 1080P / 60Hz), up to 2048*768/60HZ | ||
SDIx1(optional) | BNC, SDI/SD-SDI, HD-SDI, 3G-SDI | ||
Resolution: | 1024×768×60Hz, 1280×720×60Hz, 1366×768×60Hz, 1280×1024×60Hz, 1400×1050×60Hz, 1600X1200×60Hz, 1920×1080×60Hz, 2048X768×60Hz | ||
Function: | |||
Processing bits: | 10 bits | ||
processing tech: | De-interlacing and Noise Reduction | ||
Trasition: | Cut, Cursion, fade-in and fade out | ||
Transition Speed: | fast, middle, slow | ||
Processing Channel: | single | ||
Scaler: | unlimited scaling | ||
Maxinum resolution: | 1080P, max 2048*1024 | ||
Downscaler: | available, (mixinum 64*64 at custermized) | ||
Output Refresh rate | 60Hz | ||
Logo insert | optional | ||
Key function | no available | ||
Capture function | Available,capture input video source content, accurate to pixel | ||
Local cycle play | Available, 16 inner modes, cutomer scheduled cycle-play list | ||
Control | |||
Front panel button | Full-function operation with LCD indicator, to show status, select input source, adjust image position, color, resolution, scene mode save/recall, etc. | ||
RS232x 1 | RS-232, 9-pin female D connector, support the third party controller system | ||
IR remote | IR remote controller, with 16 scene mode load | ||
TCP/IP | RJ45 port for long distance control, over Internet/LAN/WAN network | ||
PC control Software | WYSIWYG (What You See Is What You Get) Perform software, with detailed user manual | ||
General | |||
Operating Temperature | 0°C - 70 °C | Operating Humidity | 15% - 85% |
Power Supply | 100 - 240Vac, 50Hz | Power Consumption | 15W |
Cabinet | 1U model | Cabinet Dimension | 290 (W)x 430(L) x 55(H) (mm) |
Net Weight | ~3kg | Packed weight | ~5kg |
