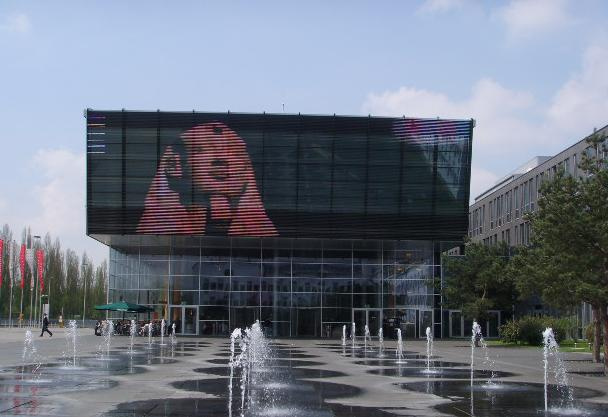

Our giant curtain LED display screen designed as PixParticularly developed for indoor and outdoor installation by realizing remote lively image video effects in the daytime and at night.
With features of higher waterproof IP67 and strong wind-resistant ability, do not worry any damages by strong wind attack for mounting seam spaces between each neighbouring strip modules.
Easy and efficient installation with light weight aluminium materials, diverse pixel pitch design and lower maintenance and higher brightness up to 2000---6000 nits.
EL pitch: 20mm(physical)/10mm(virtual);
LED configuration: 2R1PG1B with oval LED from CREE or nichia
LED wavelength(nm): Red: 625; Green: 525; Blue: 470; Brightness: 6500 NITS
Module size: 1280mm*960mm*220mm;
Pixel density: 64*48dots/module;
Viewing distance: >20m;
Viewing angle: (50% brightness): Hor. 120degree ver, 50degree
Module weight: 70kg
Communication distance: <100meters(by cat5 net cable), 500meters of muti-mode optical fiber; 1000meters of single-mode optical fiber
Brightness adjustment: 100 level;
Grey scale: 16bit/color
Color temperature: Typical 6500k, 5000--9000k be adjustable;
Color: 256*256*256
Frame rate: 60 hertz;
Image refresh rate: (processing depth): 800 hertz
LED driving method: Static scan; Constant current drive
Lose control rate/defected pixel rate: Less than 0.03%, and discrete distribution
Life time: 50, 000hour (50% brightness)
Operating temperature: -20 degree~+60 degree;
Operating humidity: 10%~85%
Operation voltage: AC220V~10%/AC380V~10%, 50hertz~10%
Power consumption(typical): MAX1000W/sq meter (600W/sq meter)
Front color: Black, rubber; Protection: IP65
Input signal: HDTV/PAL/S-VIDEO/VGA
Warranty: 2years, spare parts included
Maintenance: Rear or front of the modules
Protection grade: IP65 /IP45
DALIAN GRANDTRONICS Co., Ltd.is a professional and diversified provider of LED display videowall series and kinds of new LED lighting products with its lighting solutions.
Our LED display family includes indoor and outdoor series with various application type like rental display, advertising display, tri-color traffic signs, sports modules, gas price signs and giant media curtain strip videowall. They are widely applied in the football stadium, commercial square and shopping mall, stage performance and transportation fields.
Our lighting series ranges from power LED bulbs, LED downlight, LED linear light and LED spot light, LED fluorescent tube T8 or T5 light and various LED flexible strips to LED street lights and their matching with transformers adaptor and power switching supplies.
Having got the strong support of world famous LED upstream supplier like nichia cree seoul-semiconductor and meanwell in technology and quality service, and getting ahead on the continuously technology improvement and daily update, our products has been obtained CE OR UL certificate and totally with RoHS standard and they are more attracted and used in various region and countries.
Our goal is to supply our clients with top class QUALITY products and quick high-efficient SERVICE, to meet the future market requirements by continuously stable INNOVATION.
We welcome you to contact us anytime for product information technology discussion and order inquiry, hope you you will one of our precious clients, BRAND, your trusted and reliable business partner of LED products.
