Product Specifications
| Prod Model: |
MH100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Measuring Direction : Supprt 0~360o: |
Hardness Scales: Hl, Hb, Hrb, HRC, Hra, Hv, Hs |
Product Description

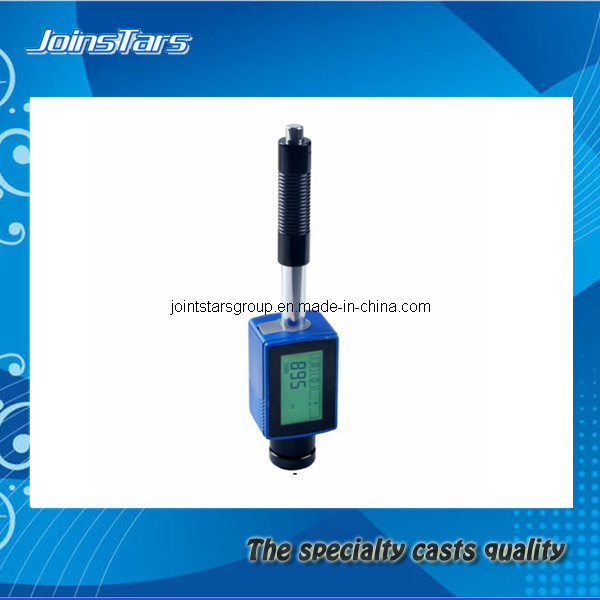

Features of MH100 Pen Type Hardness Tester
With the Leeb hardness measuring principle, the pen-type hardness tester MH100 can do test easily and quickly to various metallic material. It can show the hardness measuring value immediately and can switch to other scales freely.
Specifications
*Measuring Range: (170-960)HLD, (17-68.5)HRC, (19-651)HB, (80-976)HV, (30-100)HS, (59-85)HRA, (13 -100)HRB
*Measuring Direction: Supprt 0~360º
*Hardness Scales: HL, HB, HRB, HRC, HRA, HV, HS
*Display: HD dox matrix LCD and LED backlight
*Data Memory: Max. 500 groups(relative to impact device 32~1)
*Working Power: 3.6V(Integrated Lithium battery and rechargable circuit
*Continous Working Period: About 200 hours (without using backlight)
*Communciation Interface: USB1.1 port
Applicable Materials
Steel and cast steel, cold work tool steel, stainess stee; .
Grey cast iron, nodular cast iron, cast aluminum alloys, BRASS (copper-zinc
Alloys), BRONZE(copper-aluminum/tin alloys), pure copper and forged steel
Working Conditions
Operating temperature -20° C~+60° C
Storage temperature: -30° C~+60° C
Relative humidity: ≤ 90%
The surrounding environment should avoid of vibration, strong magnetic field,
Corrosive medium and heavy dust.
Standard Configurations
1. Main Unit 1
2. Cleaning brush 1
3. Small support ring 1
4. Standard block 1
5. Dataproceeding Soatware with cable 1
6. Accompany documents (including manual, quality certifcate, warranty card And packing list ) 1 set
7. ABS instrument case 1
