Product Specifications
| Prod Model: |
LHT3300 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Standard: |
ISO |
| Application: |
Ceramics and Glass |
| Type: |
Leeb Hardness Tester |
| Measuring Range: |
HB |
| Rated Voltage: |
110-240 |
Product Description

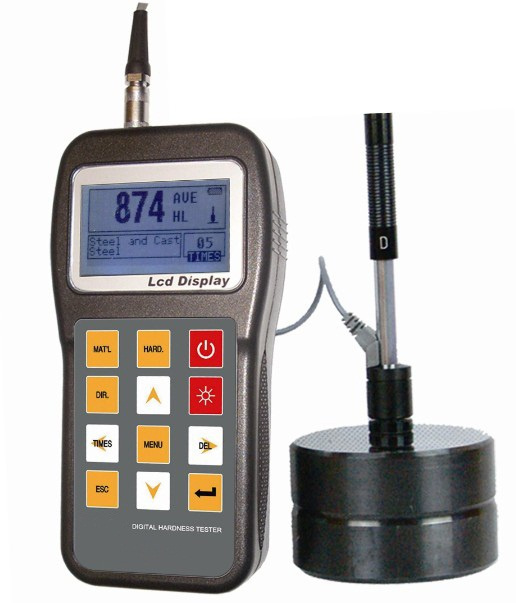

LHT-3300365-NDT LHT-3300 portable leeb hardness tester
LHT-33is 365-NDTLHT-3300 is an advanced hand-held portable hardness tester, featuring: Compact size, high accuracy, wide measuring range and simplicity of operation. LHT3300 is Leeb hardness tester is a digital ultrasonic thickenss gauge. Based on the same operatinfg principles as SONAR, the instrument is capable of measuring the thickness of various materials with accuracy as high as 0.01 /0.1mm. It is suitable for a variety of metallice and non-metallic materials.
Specifications
Outside dimension: 150× 74× 32 mm (main unit)
Weight: 0.25Kg (main unit)
Display: 128× 64 matrix LCD
Measuring range: 170 to 960 HLD
Display error: Plusmn; 0.5 % ( Ref. To L=800)
Measuring direction: 360°
Data memory: 48~600 groups (impact times: 32~1)
Relative repetitive display error: Plusmn; 0.8 %
Hardness scale: (HV, HB, HRC, HRB, HRA, HS).
Communication interface: RS232 interface and USB to PC
Power Source: 2*1.5V "AA" batteries. 200 h (no back light)
Features
1: LCD display of 128× 64 matrix is used.
2: Converts to all common hardness scales(HV, HB, HRC, HRB, HRA, HS).
3: English displaying and menu operating, the operation is easy and convenient.
4: With USB interface, multiple communication modes are adopted to meet customized requirements of various users.
5: Equipped with 7 types of impact devices which need not to be recalibrated when changing them, the system can identify the type of impact device automatically.
6: Max 600 groups(impact times: 32~1)of data can be stored at internal non volatile data storage.
7: Upper and lower limit of hardness can be preset; When the tested value exceeds the limits, alarm will send out automatically to make convenient for the requirements of batch measurements.
8: Back light display has been used to make convenient for the use in poor light.
9: Test values software calibration function.
10: Material of "cast steel" is added; HB values can be read out directly when D/DC impact device is used to measure "cast steel" work piece.
11: Printer be separated from main unit and copies of testing results can be printed as required.
12: Power is two of AA battery. Continuous working period: Approx. 200 h (no back light on).
13: Software of PC can be installed according to the requirements of user, the function will be more powerful to satisfy the more strict demands of quality control and management.
Main Application
A: The assembled machinery and permanently installed parts
B: Die cavity of molds
C: Heavy work piece
D: Failure analysis of pressure vessel, steam turbo-generator set and other equipment
E: Narrow testing space where work piece installed
F: Bearings and other parts
G: Cases which require the test result with normalized original recording
H: Material identification of the metal material warehouse
I: Quick tests of large range and multipoint measuring positions for heavy workpiece
Tandard Configuration
LHT-3300 portable Leeb hardness tester Main unit 1 PCS
D type impact device 1 PCS
Small supporting ring 1 PCS
Nylon brush (A) 1 PCS
High value Leeb test block 1 PCS
Box Of Instrument 1 PCS
