Product Specifications
| Prod Model: |

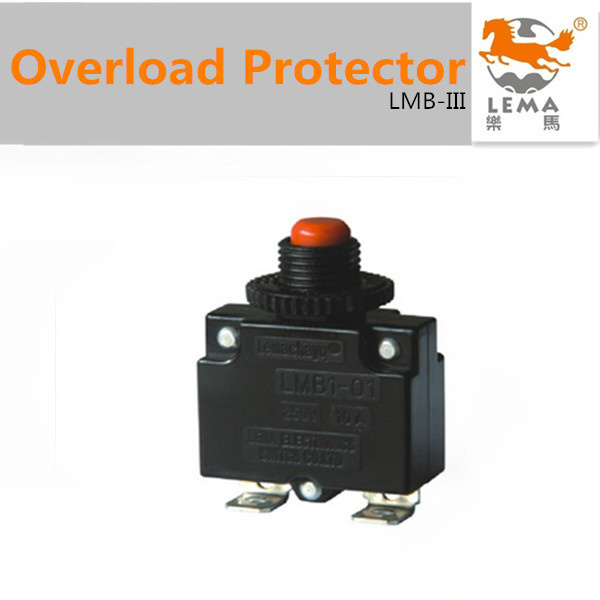

Compressor Overload Protector LMB-III |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
250VAC |
| Current: |
5A, 8A, 10A,15A |
| Meas: |
38.5*31*41.5cm |
Product Description
LMB series equipment overload circuit protectors is suitable for electrical equipment interior branch line with AC50Hz(60Hz), rated working voltage to 250V, rated current 2.5A-32Afor the overload attachment protection, The key parts of product small dish-shape temperature-sensing element uses bimetal, as a result of outstanding design, it namely for heat sensitive sensor, also took the operating mechanism, the movement is accurate and reliable, it is widely used in each kind of mechanical and electrical appliance, for example each kind of generators, electric motors (such as: Clearer and so on ), power tool, electric heating appliance, power source plug and so on.
|
Insulation Resistance |
≥100MΩ min |
|
Contact Resistance |
≤40MΩ min |
|
Rated Current |
2.5-32A 125/250VAC |
|
Break time |
1-120 Seconds |
|
Dielectric Intensity |
≥1500VAC/min |
|
Electrical Life |
≥100,000 |
|
Ambient Air Temperature |
-25 to +85 |
Originated in 1981, this company is specialized in research and development, the micro-switch, the waterproofswitch, the power source plug, the protector, the float spacing controller series product, which are suitable for low voltage electric appliance, domestic electric appliance, instrument measuring appliance electron toy with AC 50Hz, voltage 250V and below, DC voltage 220V and below. The company is located in the economic development zone of Yueqing. The first stage factory building covers an area of 11 Mou with a construction area of 4566 square meters, the second stage covers an area of 42 Mou now, which will put into building soon. The company has a rich technical force, and the key team of the Hi-Tech who dare to innovate, dare to open up. The company has achieved"LEMA"brand to invigorate the Chinese nation with the indication of "setting up the factory with quality, prospering the factory with science and technology"for more than 20 years. Our company has past management system authentication ISO9001-2000 and ISO14001-2004, and the products have won the CE certification, U. S. A. UL authentication, CCC authentication, and SGS checkout. The products are far sold to countries such as Amercia and Europe, Southeast Asia, etc. We could like to offer the best quality, competitive price and best after-sale service to all of our users, " seeking the bosom friends of the four seas, making the friend all over the world", wish to make progress together with the domestic and international friends to achieve more glorious future
