| Supplier: | Zhejiang Lema Electrics Co., Ltd. |
|---|---|
| Price: | US $ 5/Piece |
| Min Order: | 1/Piece |
| Quantity:: | |
| Trade Terms: | FOB,CFR,CIF |
|
|
| Prod Model: | Kw12f-5 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: | Kw12f-5 |
| Protection: | Waterproof |
| Size: | Normal Size |
| Environment: | ﹤250℃ |
| Brand: | Lema |

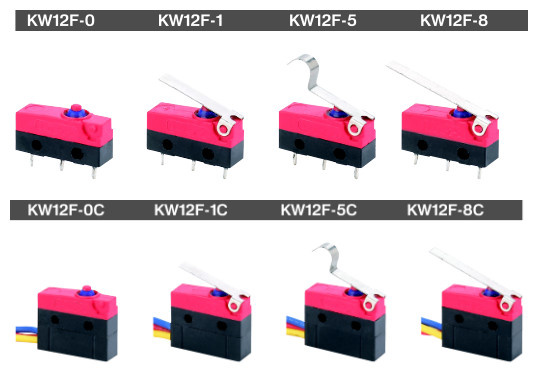

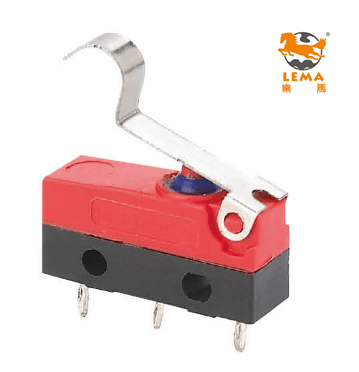

Lema KW12F-5 Waterproof IP67 Bent Lever Micro Switch
| Operating speed | 0.1mm-1m/s | |
| Operating frequency | Mechanical:60 times/min | |
| Electrical:25 times/min | ||
| Initial insulation resistance | 100MΩmin.(at 500VDC) | |
| Initial contact resistance | 100MΩ lead wires type depends on the lemght of the wires | |
| Dielectric strength | Between non-consecutive terminals | 1,000Vrms, 50/60Hz for 1 min |
| Between non-current carrying metal parts and each terminal | 1,500Vrms, 50/60Hz for 1 min | |
| Between ground and each terminal | 1,500Vrms, 50/60Hz for 1 min | |
| Vibration resistance | 10-55Hz,1.5mm double amplitude | |
| Max.shock resistance | Endurance | 1000m/s2(approx.100G)max |
| Malfunction | 300m/s2(approx.30G)max | |
| Operating life | Mechanical life | 1,000,000 operations min. |
| Electrical life | 50,000 operations min. | |
