| Supplier: | Zhejiang Lema Electrics Co., Ltd. |
|---|---|
| Price: | US $ 0.6/Piece |
| Min Order: | 1000/Piece |
| Quantity:: | |
| Trade Terms: | FOB,CFR,CIF |
|
|

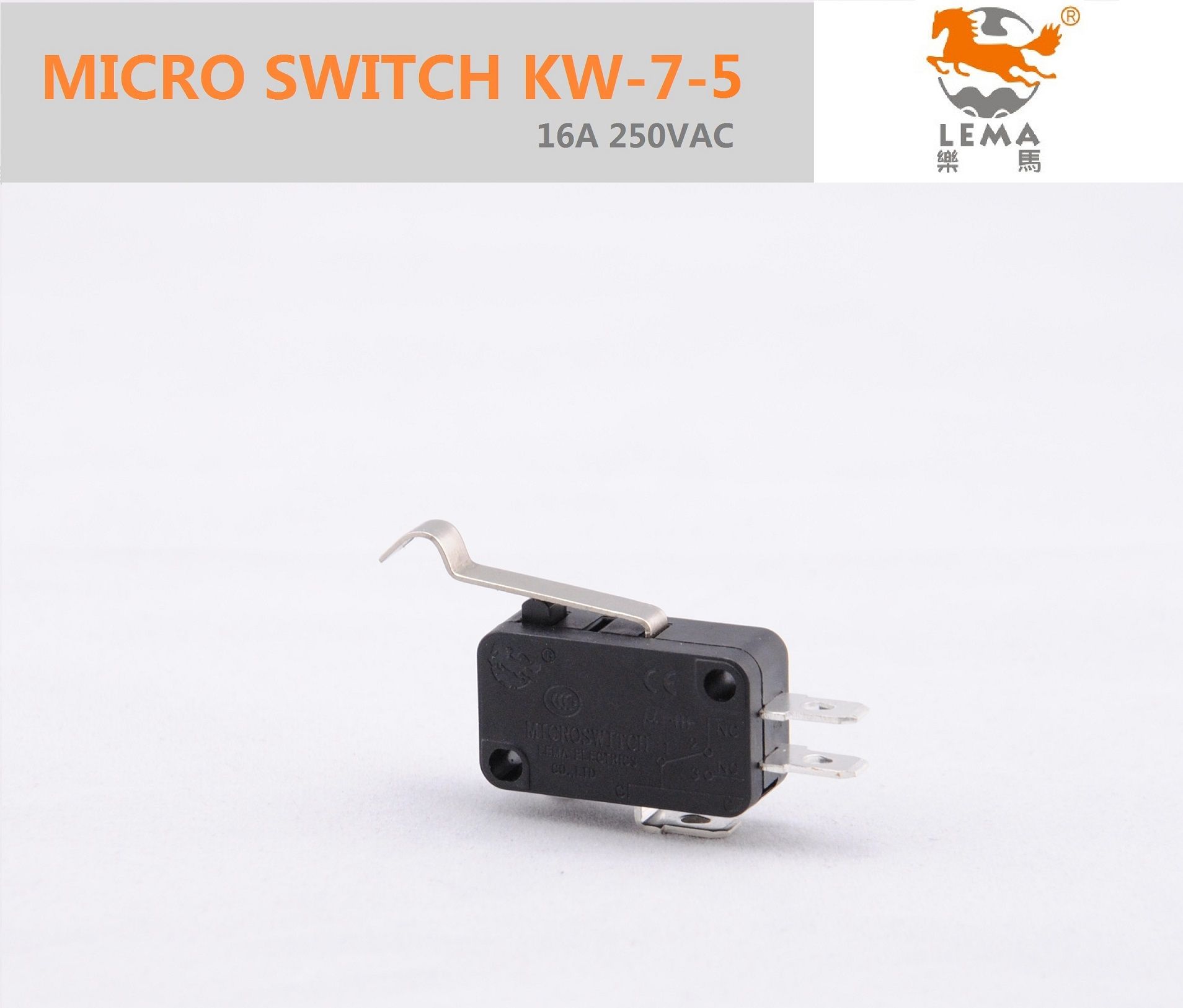

| Prod Model: | KW7-5 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rating: | 16A |
| Certificates: | CCC, CE, UL, VDE |
| Protection: | Dust-Proof |
| Size: | Normal Size |
| Breaking Form: | Single Type |
| Environment: | ﹤250℃ |
| Brand: | Lema |
| Rating | 3A,8A,16A/250VAC,125VAC 0.6A/125VDC 0.3A/250VDC | |
| Initial contact resistance | ≤25mΩ | |
| Initial insulation resistance ( At 500V DC) | ≥100mΩ | |
| Dielectric strength | Between non-consecutive terminal | 1000Vrms,50/60Hz,1min |
| Between current carrying and non-carry metal parts | 1500Vrms,50/60Hz,1min | |
| Between ground and each terminal | 1500Vrms,50/60Hz,1min | |
| Max.shock resistance | Mechanical durable | 1000m/s2 |
| Malfunction | 300m/s2 | |
| Vibration resistance | 10-55Hz , 1.5mm double amplitude | |
| Expected life | Mechanical | 20000000 |
| Electrical | 100000 | |
| Ambient temperature | -25 to +85 | |
| Ambient humidity | 85%RH max | |
| Operating frequency | Mechanical | 60 times/min |
| Electrical | 25 times/min | |
| Operation speed | 0.01mm-1m/s | |
