Supplier: | Zhejiang Lema Electrics Co., Ltd. |
---|---|
Price: | US $ 0.15/Piece |
Min Order: | 1/Piece |
Quantity:: | |
Trade Terms: | FOB,CFR,CIF |
![]() |
Prod Model: | led light illuminated push button switch |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Name: | Lema |
Usage: | Reset Button |
Kind: | Single-pole on-off Switch |
Type: | Normal Close |
Brand: | Lema |

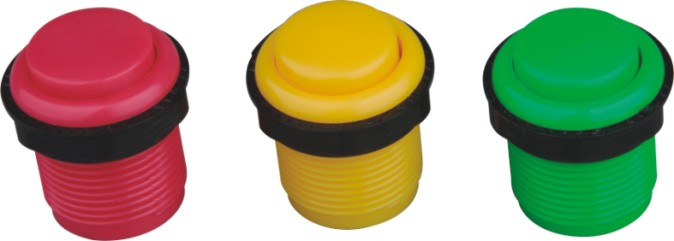

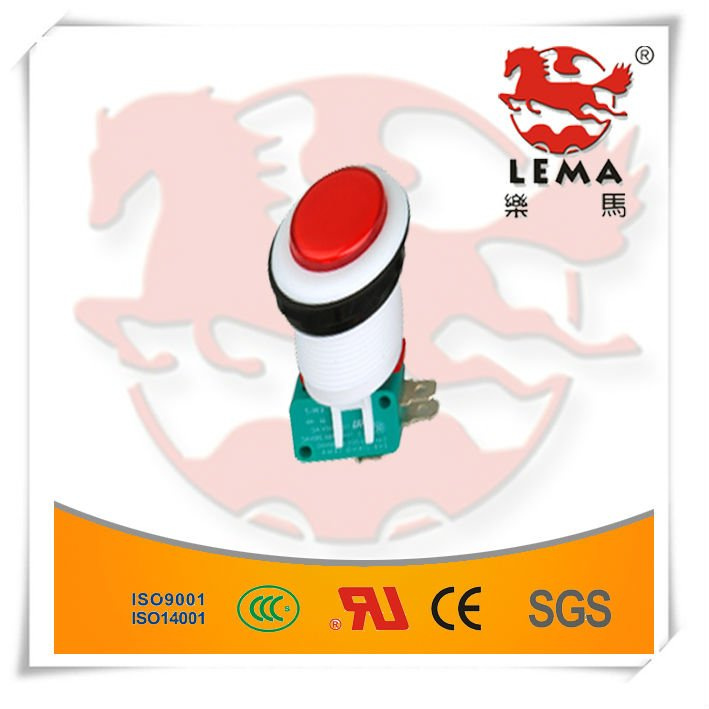

Lema PBS-001 34mm yellow push button micro switch for game machine
Rating | 3A, 8A, 16A/250VAC, 125VAC 0.6A/125VDC 0.3A/250VDC | |
Initial contact resistance | ≤25mΩ | |
Initial insulation resistance ( At 500V DC) | ≥100mΩ | |
Dielectric strength | Between non-consecutive terminal | 1000Vrms, 50/60Hz, 1min |
Between current carrying and non-carry metal parts | 1500Vrms, 50/60Hz, 1min | |
Between ground and each terminal | 1500Vrms, 50/60Hz, 1min | |
Max. Shock resistance | Mechanical durable | 1000m/s2 |
Malfunction | 300m/s2 | |
Vibration resistance | 10-55Hz, 1.5mm double amplitude | |
Expected life | Mechanical | 20000000 |
Electrical | 100000 | |
Ambient temperature | -25 to +85 | |
Ambient humidity | 85%RH max | |
Operating frequency | Mechanical | 60 times/min |
Electrical | 25 times/min | |
Operation speed | 0.01mm-1m/ |
