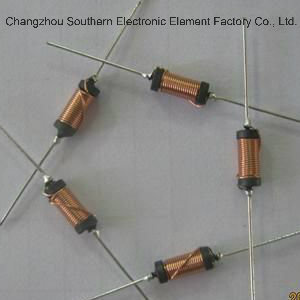

LGA Power Inductor/Choke Coil Inductor with RoHS

Name: LGA Power Inductor/Choke Coil Inductor with RoHS
Brand: china-manufacturer-directory.com
SKU: 775216005
Availability: InStock
Rating: 4.9 (141 reviews)

Supplier:	Changzhou Southern Electronic Element Factory Co., Ltd.
Price:	US $ 0.01-9/Piece
Min Order:	1000/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	LGA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Productor Name:	LGA Power Inductor/Choke Coil Inductor with RoHS
Environmental Certification:	ISO14000
Other Certification:	RoHS
Size:	Axial
Type:	Choke Inductor
Structure:	Inductive Choke
Brand:	Liwang

Product Description

Product description of the LGA Power Inductor/Choke Coil Inductor with RoHS
Specifications
1.Filter Inductor
2.Inductance:Measured at 1Khz with no DC current
3.Solid soft copper wire
4.Pre-tinned lead,polyolefin tube

1.High Inductors & inductors
*Size:0306~1016
*Inductance:1UH~47000UH
*Tolerance:+/-10%
*Short Lead time

2.Features

a. Printed circuit mounting (axial leads)

b. Protected by polyolefin sleeve

c. Pre-tinned leads

d. High saturation bobbin used, allowing high inductance with low DC resistance

1.Shielded and unshielded types available
2. Ferrite bobbin core, low core loss at frequency
3. Size: 3*6mm;4*6mm;6*8mm;8*10mm;10*12mm; 10*16mm ect.
4. Inductance Range:1uH ~47000uH
5.Winding covered with shrinkable tube
6. Magnetic shielding,used in high-density mounting configurations
7. Excellent Q-frequency characteristics
8. High withstanding voltage and insulation resistance
9. Operating temperature:-20°c to 105°c(include coil heat)
10. Storage conditions:-20 °c to 85°c(do not expose to direct sunlight(JIS C805))

3.Electrical
Inductance: Measured at 1Khz with no DC current
Current Rating: Maximum continuous operating current based on a 50°C rise
Dielectric Rating: 2500 VRMS between winding and outer circumference to within 0.25of the insulating sleeve edge.
Temperature Range: -55°C to +105°C

4.Primary advantage:
1 Professional engineer
2 Qualified material competative price
3 Good after-sale service
4 RoHs compliant, CE certification

5.Mechanical
Wire: Solid soft copper
Terminals: 20 AWG tinned copper leads
Coating: Polyolefin tubin

6.Why Choose us?

1 Professional engineer
2 Qualified material competative price
3 Good after-sale service
4 RoHs compliant, CE certification

5. High quality and best services.
6. We have RoHS and REACH certification.
7. Our Products has the UL Insulation System.
8. Our company has pass the ISO9001: 2008 and ISO 14001: 2008

7.Note:

1. MOQ: 1000PCS
2. Delivery time: 10-12 days or as per customer's quantity
3. Payment terms: 50% deposit of total amount in advance and the rest after seeing B/L, T/T.
4. Samples is free, but the fee of freight must be paid by recipient
5. Port: SHANGHAI
6. Package: As per customer's requirements

We will feel appreciated if you can provide the parameters of the product or the photo of the item.
All products of the size, electrical performance can be designed
According to customer requirements in R&D.

Don't hesitate to contact us if any interested in our products.

Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.

Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.

Factory' S quality policy: "product quality, service in advance, customer satisfaction".

Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment".
