Changzhou Southern Electronic Element Factory Co., Ltd. >> Lgb Choke Coil Power Inductor for AC with RoHS

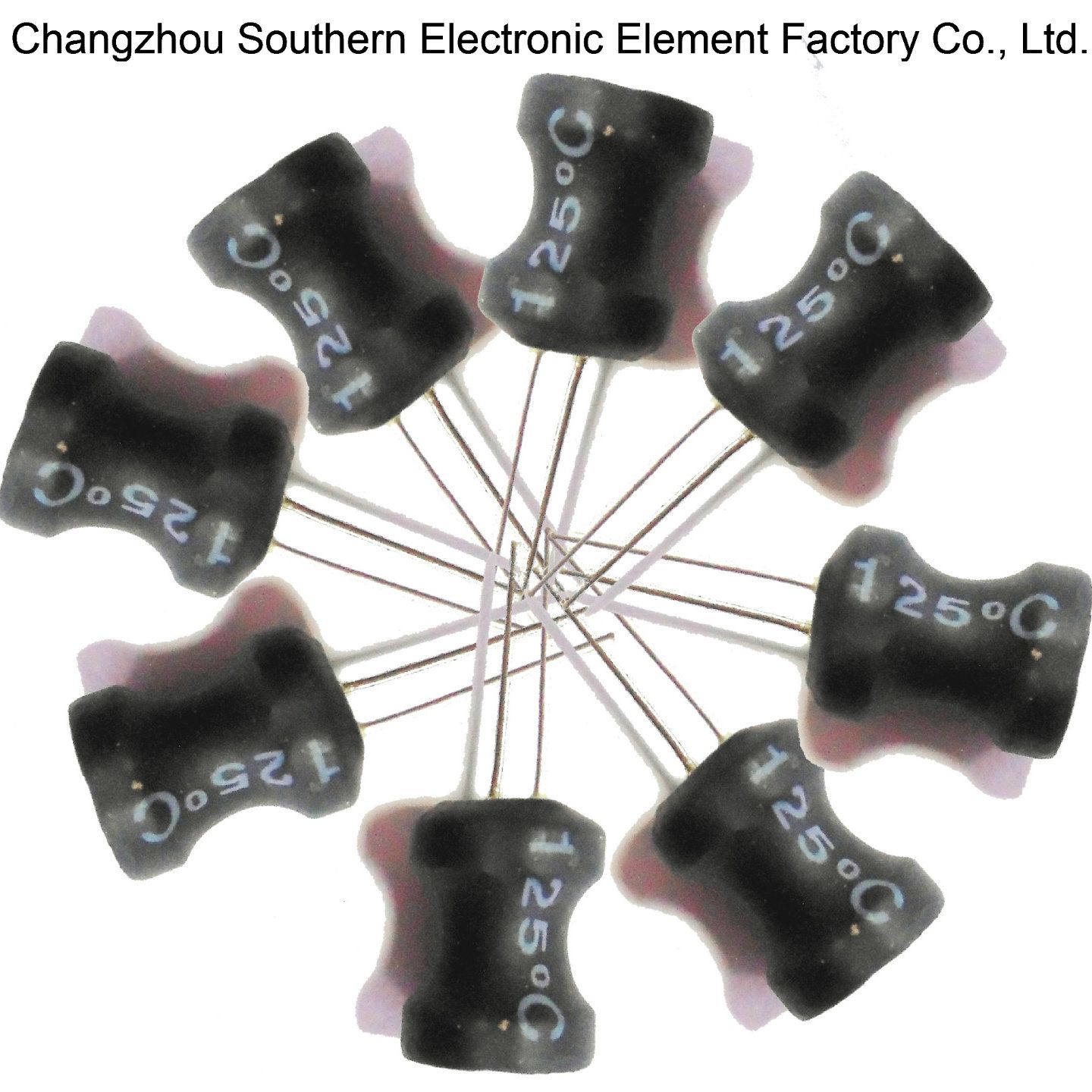

Lgb Choke Coil Power Inductor for AC with RoHS

Name: Lgb Choke Coil Power Inductor for AC with RoHS
Brand: china-manufacturer-directory.com
SKU: 775295905
Availability: InStock
Rating: 4.5 (58 reviews)

Supplier:	Changzhou Southern Electronic Element Factory Co., Ltd.
Price:	US $ 0.01-5/Piece
Min Order:	1000/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	LGB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Productor Name:	Lgb Choke Coil Power Inductor for AC with RoHS
Environmental Certification:	ISO14001
Safety Certification:	CQC 03003095~3097
Other Certification:	RoHS
Quality Certification:	ISO9001
Type:	Fixed Inductor
Structure:	Mutual Inductor
Brand:	Liwang

Product Description

Product description of the Lgb Choke Coil Power Inductor for AC with RoHS
Applications:
(1) Video cameras.
(2) Portable VCRs.
(3) Audio equipments.
(4) TV tunners.
(5) Switching power supplies.
(6) Other circuits of consideration aganist radiation.

Power Inductors

Component	Materials
1.Core	Ferrite core
2.Wire	Poiyurethane enameled copper wires
3.Lead wire	Tinned copper wires
4.Tube	Heat shrinkable tube,PVC or UL
5.Glue	Epoxy resin

Storage conditions:Do not expose to direct sunligh

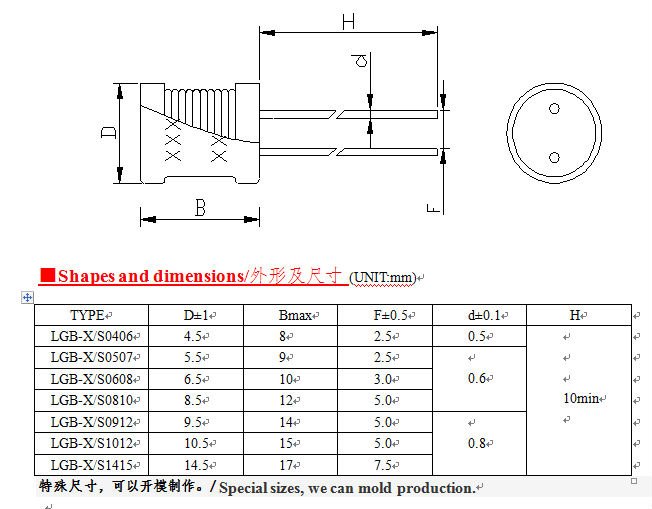

TYPE	D±1	Bmax	F±0.5	d±0.1	H
LGB-X/S0406	4.5	8	2.5	0.5	10min
LGB-X/S0507	5.5	9	2.5	0.6
LGB-X/S0608	6.5	10	3.0
LGB-X/S0810	8.5	12	5.0
LGB-X/S0912	9.5	14	5.0	0.8
LGB-X/S1012	10.5	15	5.0
LGB-X/S1415	14.5	17	7.5

Special sizes, we can mold production.

[Our Features]

(1)Fastest Lead Time

(2)Low Minimum Order

(3) Regular purchase with competitive prices and reliable supply

(4)Warranty is A Least 8 Months

(5)New Original & PB Free

[Payment Information]

1. T/T (Wire Transfer)

2. WESTERN UNION

3. L/C

If you have any other questions please feel free to contact us in any time !

Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.

Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.

Factory' S quality policy: "product quality, service in advance, customer satisfaction".

Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment".
