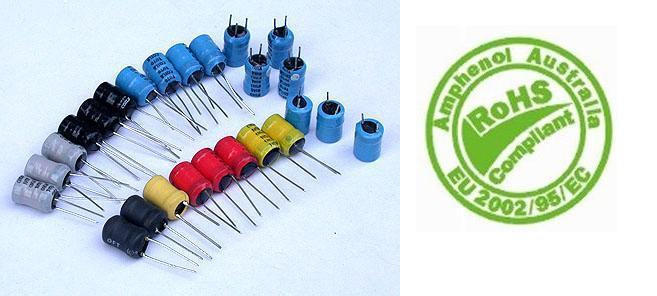

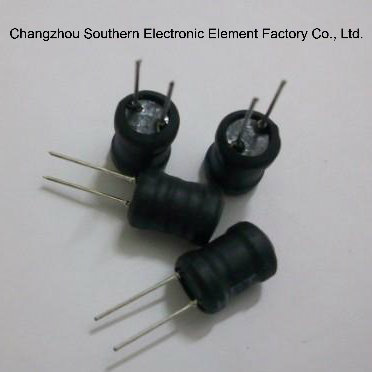

Lgb Choke Coil Power Radial Inductor with RoHS for PCB

Name: Lgb Choke Coil Power Radial Inductor with RoHS for PCB
Brand: china-manufacturer-directory.com
SKU: 775853135
Availability: InStock
Rating: 4.5 (95 reviews)

Supplier:	Changzhou Southern Electronic Element Factory Co., Ltd.
Price:	US $ 0.01-5/Piece
Min Order:	1000/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	LGB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Productor Name:	Lgb Choke Coil Power Radial Inductor with RoHS for
Environmental Certification:	ISO14001
Quality Certification:	ISO9001
Safety Certification:	CQC 03003095~3097
Other Certification:	RoHS
Type:	Fixed Inductor
Structure:	Mutual Inductor
Brand:	Liwang

Product Description

Product description of the Lgb Choke Coil Power Radial Inductor with RoHS for PCB
Applications:
(1) Video cameras.
(2) Portable VCRs.
(3) Audio equipments.
(4) TV tunners.
(5) Switching power supplies.
(6) Other circuits of consideration aganist radiation.

Power Inductors

Component	Materials
1.Core	Ferrite core
2.Wire	Poiyurethane enameled copper wires
3.Lead wire	Tinned copper wires
4.Tube	Heat shrinkable tube,PVC or UL
5.Glue	Epoxy resin

Storage conditions:Do not expose to direct sunlight

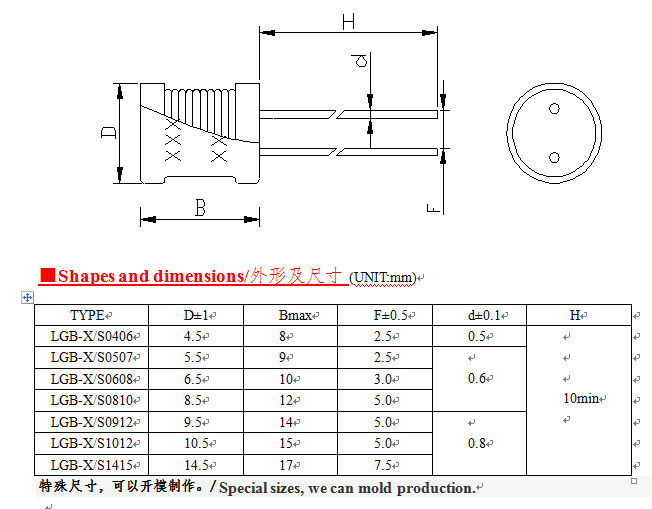

TYPE	D±1	Bmax	F±0.5	d±0.1	H
LGB-X/S0406	4.5	8	2.5	0.5	10min
LGB-X/S0507	5.5	9	2.5	0.6
LGB-X/S0608	6.5	10	3.0
LGB-X/S0810	8.5	12	5.0
LGB-X/S0912	9.5	14	5.0	0.8
LGB-X/S1012	10.5	15	5.0
LGB-X/S1415	14.5	17	7.5

Special sizes, we can mold production.
