Supplier: | Fujian Longhe Machinery Manufacturing Co., Ltd. |
---|---|
Price: | Negotiable/Piece |
Min Order: | 1set |
Quantity:: | |
Trade Terms: | FOB,CFR,CIF |
![]() |
Prod Model: | TLQ16D-B001 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Item: | Forklift Push Pull |
Type: | Non-Sideshifting |
Platen Size: | 436X1300 |
Push Plate Size: | 1016X1070mm |
Mounting Class: | II |
Stroke Of Push/Pull: | 270-1540mm |
Outside Platen Spacing: | 875/1110mm |
Min Truck Carriage Width: | 760mm |
Vcg: | 300mm |
Weight: | 660kgs |

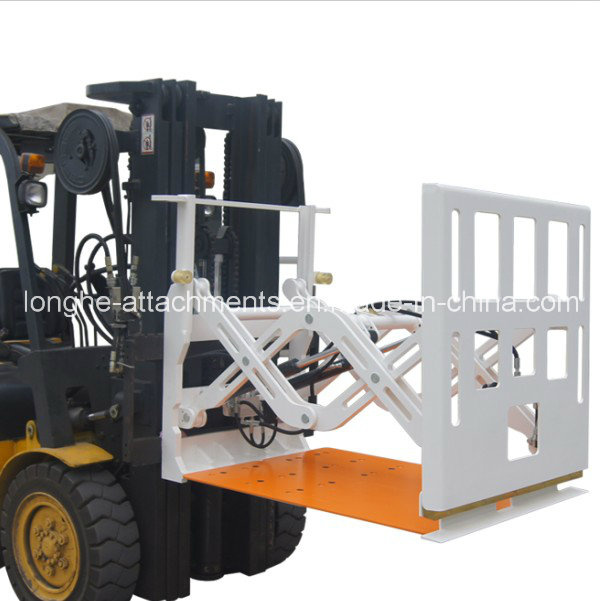

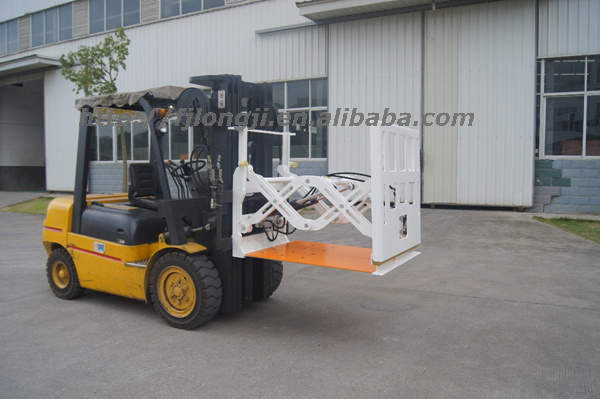

LH forklit push pull with orange and white
Push pull is designed for slipsheet applications requiring hige productivity with easy maintenance. Used to transfer the goods placed on the slide plate to attain high-efficiency for forklift.
Features
*Excellent driver visibility
*Flexible spacing between bothh fork planks
*Smooth contact parts ease the damage of slide plate
*Strength and durability to work in demanding applicaction
*High strength and secure structure
*Simplified hydrualic system
*Smooth operation with the buffering function of cylinder
Capaticy@ Load Center (Kg@mm) | Catalog Order No. | Platen Size W X L (mm) | Mounting Class | Outside Platen Spacing (mm) | Mimimum Truck Carriage Width (mm) | Vertical Center of Gravity VCG (mm) | Weight KG | Effective Thickness ET (mm) | Horizontal Center of Gravity HCG (mm) |
QFMTM(Quick Fork Mount) | |||||||||
1600@600 | TLQ16D-B001 | 455x1220 | II | 875\1110 | 760 | 305 | 530 | 272 | 246 |
1600@600 | TLQ16D-C001 | 436x1200 | III | 875\1110 | 760 | 305 | 530 | 272 | 246 |
