| Supplier: | Fujian Longhe Machinery Manufacturing Co., Ltd. |
|---|---|
| Price: | Negotiable/Piece |
| Min Order: | 1set |
| Quantity:: | |
| Trade Terms: | FOB,CFR,CIF |
|
|
| Prod Model: | TLQ16D-B013 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: | Forklift Push Pull |
| Type: | Sideshifting |
| Platen Size: | 200X1460mm |
| Push Plate Size: | 1068X1100mm |
| Mounting Class: | II |
| Stroke Of Push/Pull: | 330-1590mm |
| Outside Platen Spacing: | 1100/1254mm |
| Min Truck Carriage Width: | 1000mm |
| Vcg: | 235mm |
| Weight: | 820kgs |

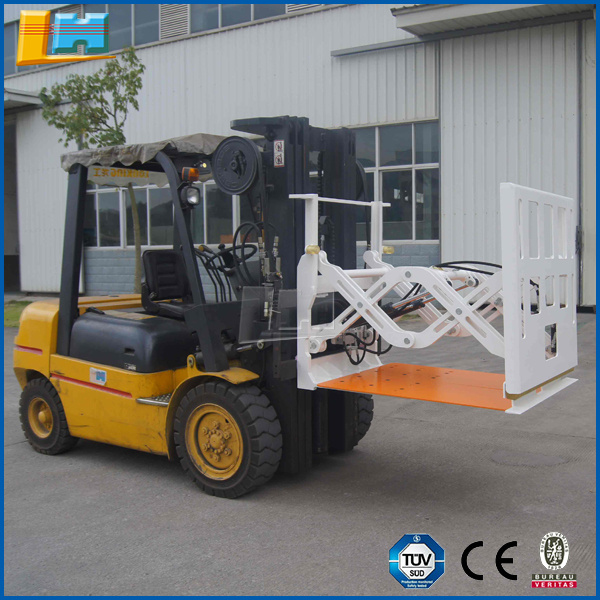

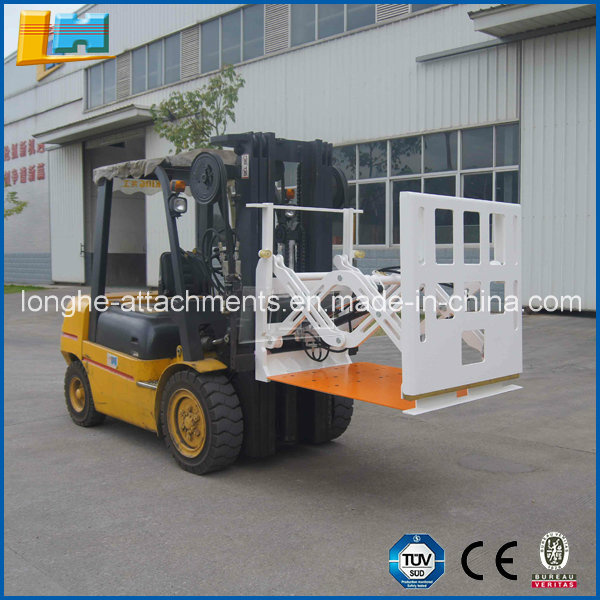

LH manufacturing forklift push pull with slip-sheet
Push pull is designed for slipsheet applications requiring hige productivity with easy maintenance. Used to transfer the goods placed on the slide plate to attain high-efficiency for forklift.
Features
*Excellent driver visibility
*Flexible spacing between bothh fork planks
*Smooth contact parts ease the damage of slide plate
*Strength and durability to work in demanding applicaction
*High strength and secure structure
*Simplified hydrualic system
*Smooth operation with the buffering function of cylinder
| Capaticy@ Load Center (Kg@mm) | Catalog Order No. | Platen Size W X L (mm) | Mounting Class | Outside Platen Spacing (mm) | Mimimum Truck Carriage Width (mm) | Vertical Center of Gravity VCG (mm) | Weight KG | Effective Thickness ET (mm) | Horizontal Center of Gravity HCG (mm) |
| QFMTM(Quick Fork Mount) | |||||||||
| 1600@600 | TLQ16D-B013 | 1068x1100 | II | 1100/1524 | 1000 | 235 | 820 | 330 | 670 |
| 1600@600 | TLQ16D-C013 | 1068x1100 | III | 1100/1254 | 1000 | 235 | 840 | 330 | 670 |
