Life boat used with Certificate/davit/crane lifesaving equipment

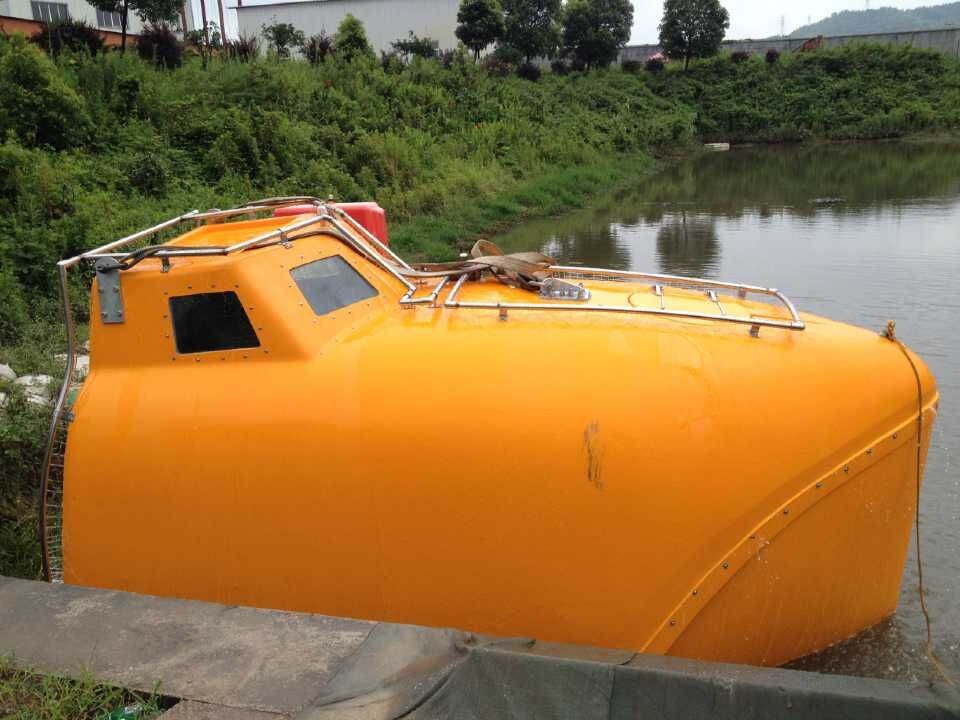

Specification of CCS, BV, EC, ABS, RINA Approved 20 Persons GRP Fully Enclosed Lifeboat
1. Applied rules of CCS, BV, EC, ABS, RINA Approved 20 Persons GRP Fully Enclosed Lifeboat
SOLAS amendments and International life-saving appliance regulation (LSA) MSC.272(85)
& MSC.274(85)
2.Principal Particular of CCS, BV, EC, ABS, RINA Approved 20 Persons GRP Fully Enclosed Lifeboat
1) Principal dimension of CCS, BV, EC, ABS, RINA Approved 20 Persons GRP Fully Enclosed Lifeboat
Length (main body) 5.00m
Breadth (mid) 2.20m
Depth (mid) 1.20m
Height to top of enclosure from bottom of keel abt.3.10m
Lifting hook span 4.60m
No. of persons
As lifeboat(Max.30P) 24P
As rescue boat 6P
Standard weight See next page
Speed Over 6knots
2) Population engine
Kind of engine 380J-3
No. of set 1 set
Starting system Electric
Rated output 28ps
3) Propeller shaft and propeller
Propeller shaft 1 set
Propeller 1 set
Rated nozzle 1 set
4) Fuel oil tank
Material Galvanized steel plate
Capacity 195 liters
5) Rated Nozzle - - rudder
Material FRP
No. of set 1 set
Material of stock Galvanized steel
3. Maim material of CCS, BV, EC, ABS, RINA Approved 20 Persons GRP Fully Enclosed Lifeboat
Hull and enclosure
(Fire protected Polyester resins and fiberglass)F.R.P
Buoyancy Polyurethane foam or PVC foam
4. STANDARD WEIGHT ofCCS, BV, EC, ABS, RINA Approved 20 Persons GRP Fully Enclosed Lifeboat
No Of Person | Weight(KG) |
| Boat | Equipment | As Lifeboat | As Rescue Boat |
| Persons | Total | Persons | Total |
| 24 | 1929 | 159 | 1980 | 4068 | 495 | 2583 |
Note:
Incl. Fuel oil .
The total weight allowance is ± 5%
5. General Drawing of CCS, BV, EC, ABS, RINA Approved 20 Persons GRP Fully Enclosed Lifeboat
