Lifting Jacks

Name: Lifting Jacks
Brand: China-Manufacturer-Directory.com
SKU: 757544965
Availability: InStock
Rating: 4.7 (89 reviews)

Supplier:	Wuxi Haiying International Trade Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Lifting Jacks

Application

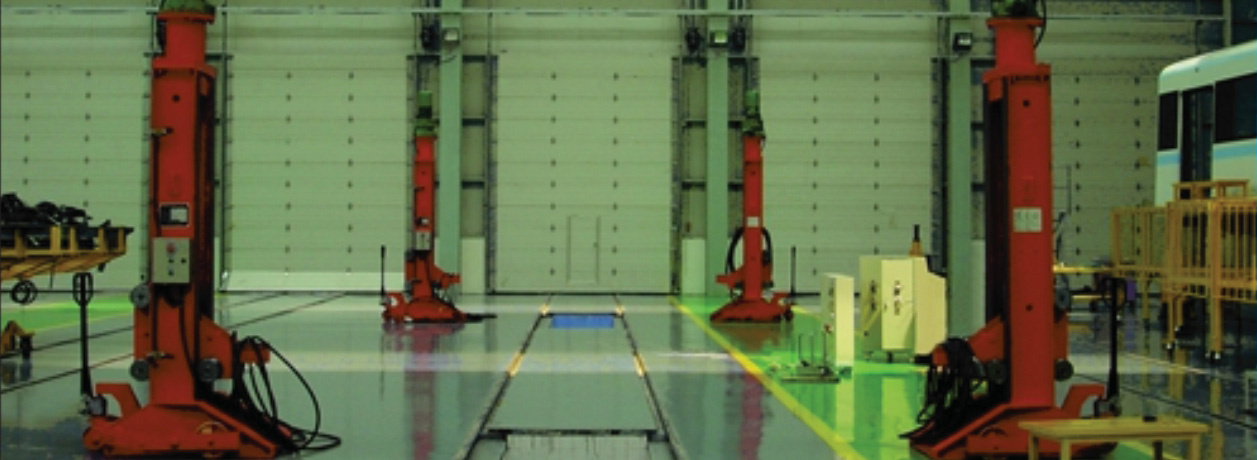

Lifting jacks is suitable for the body increasing of all types of car rack locomotives, passenger cars, trucks, EMU, metro vehicle manufacturing plants and the maintenance testing unit, which in order to maintain and replace the mechanical, electrical parts in the lower part of the body.

Composition
The equipment consists of lifting mechanism, frame, hydraulic mobile carts (without JC), brackets, electrical control, security parts, etc.

Main Technical Parameters

Model	YJC-16	YJC-25	JC-16	JC-25
Elevating Power Per Unit (KN)	160	250	160	250
Max Stroke of Tractors (mm)	1500/1800	1500/1900	1500/1800	1500/1800
Lowest Position of Tractors (mm)	600	700	800	900
Elevating Speed (mm/min)	200	200	200	200
Synchronized Accuracy Per Unit	≤±4mm	≤±4mm	≤±4mm	≤±4mm
Synchronic Accuracy of 6 Units	≤±10mm	≤±10mm	≤±10mm	≤±10mm
Power Per Unit (KW)	4	5.5	4	5.5
Supply Voltage (V)	380	380	380	380
Note	Mobile	Mobile	Permanent	Permanent

Wuxi Haiying International Trade Co., Ltd. is located at Wuxi, Jiangsu nearby Shanghai. The availabe products in Haiying International Trade are as follows: Medical ultrasonic diagnostic system and series probes, ICP Monitors, Ocean navigational measuring, detecting & imaging equipments, Sonar equipments, Transducers, Piezoceramics and Sensors.

Haiying gained the GB/T 19001-ISO9001 and CE mark for its medical ultrasound scanners, and maintains its strength and ambition on development. We will continue to serve the customers with "the first class of products and the first class of service".

Haiying is moving to a bright future with you.
