Product Specifications
| Prod Model: |
Low Angle Slide Flatbed Wrecker Tilt Tray |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Emission Standard: |
Euro 3 |
| Towing Tonnage: |
3T |
| Certification: |
CCC |
| Engine Type: |
4 Stroke |
| Fuel: |
Diesel |
| Condition: |
New |
| Brand: |
Lufeng |
Product Description

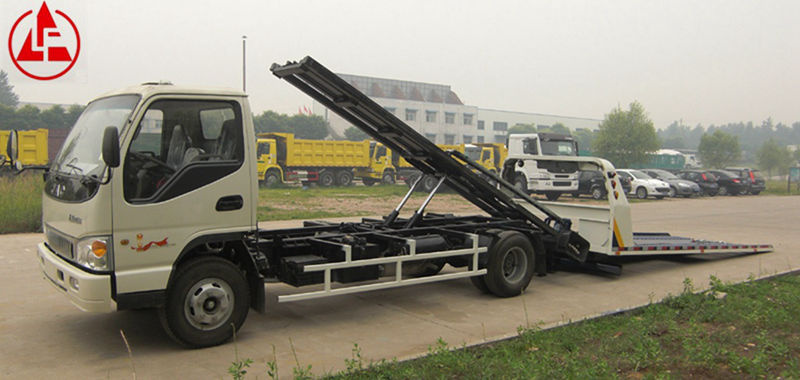

Light Duty Full Landing Low Angle Slide Flatbed Wrecker Tilt Tray
Work Parameter
Truck | Model | UP300 |
| Overall Dimension | L×W×H(mm) | 8240,7650×2300×2280 |
| Wheel Base(mm) | 3815 |
| Weight | Max. Total Weight(kg) | 7625 |
Chassis | model | HFC1081P91K2C5 |
Engine |
Model/Power(kw) | CY4102-CE4B/100,
YZ4DB1-40/97,
ISF3.8s4141/105 |
Special Features |
Platform | L×W(mm) | 5620×2200,2300 |
| Extension stroke(mm) | 3100 |
| Min. inclination angle(°) | 4 |
| Max. loaded weight(kg) | 3000 |
Under-lift | Max.towing weight(kg) | 7600 |
| Rated lifting weight(kg) | 2100-1500 |
| Max.effective length of underlift(mm) | 1705 |
| Extension stroke(mm) | 1600 |
Technical characteristics:
1. Digestion and absorption of U.S. Wrecker design and manufacturing technology
2 key components using the finite element stress analysis (CAE technology)
3 important components of high quality carbon steel rectangular pipe, no welding deformation
4. The hydraulic system uses two filtering technology to ensure that the hydraulic system clean
5 .critical hydraulic lines imported from Germany seals seals
6. consumption of gas by pipeline gas supply device protection valve leads to ensure the safety of vehicle braking systems
7 is equipped with ratchet tied up, fast and safe rescue
8 with fork lifts in three sizes to accommodate a variety of specifications models
9 folding flat, more suitable for ultra-low front bumper limousine rescue
10. voice reminder, "Please take off PTO drive", highlighting the user-friendly design
11 optional automatic tire holding fixture type device, trailers and more quickly
Shandong Lufeng Special-Purpose Vehicle Co., Ltd., with 40 years of history, is innovating and developing constantly. Our company is one of the earliest enterprises specializing in manufacturing special vehicles. Owning more than 700 sets of special equipment, our annual output of all kinds of semi-trailers and special vehicles reaches 10, 000 sets and all kinds of axles more than 10, 000 sets.
Lufeng took the lead in obtaining ISO 9001: 2000 certification and CCC certification. Our company is an advanced enterprise, exemption from inspection enterprise of Shandong Province, and national security authentication enterprise. Moreover, our company obtained independent import and export rights 2002. Our "Lufeng" brand products have 200 varieties of five series including semi-trailers, tank trucks, wreckers, auto-unloading vehicles and highway maintenance vehicles.
Lufeng possesses the most advanced domestic designs of special vehicles, and we can design and produce vehicles according to different requirements of customers. Most of our products and technology are national scientific and technological projects, filling the blank of domestic products, being substituted for import and having obtained national patents and awards of national scientific and technological progress. Especially the design and production of our wrecker has reached internationally advanced level.
In recent years, we have actively developed overseas market. Our products have been sold to more than 20 countries or regions in Europe, America, Asia and Africa. Our export proceed is increasing at a high speed of 40 percent per annum.
Lufeng supplies customer with professional products and professional services in a professional attitude. We are looking forward to establishing long term and good business relationships with all the clients worldwide. We will keep on developing our factory and do our best to support you.
