Product Specifications
| Prod Model: |
EBA2000001 |
| Markets: |
North America,South America,Eastern Europe,Mid East,Western Europe |

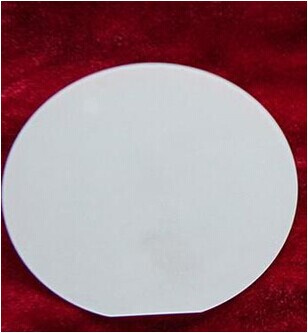

Product Description
"advantages:
Technology: We use high precision photoresist coating process, make the photoresist coating process strictly control in manageable, so as to avoid the coating defects, using nanoscale lithography process, through the application of photoresist equipment adjustment, solved the out-of-focus problem under the level 1 um lithography, so that the image size control in the scope of regulation, to ensure the uniformity of the graphics is consistent, high efficiency, high precision etching technique. By dry etching process of the ICP etching equipment, the cylindrical photoresist mask etching for conical best graphics, so as to achieve the nanoscale etching, and solved the wafer etching uniformity and conical graphic size deviation, etc.
Product parameters:
Material: High purity single crystal AI203 > 99.99;
Orientation: C axis (0001) + / - 0.20;
Substrate diameter: 50.8 + / - 0.25 mm;
Substrate thickness: 430 (including m + 20 (including m;
Substrate warp degrees: 0 - (-) 10 (including m;
Direction of locating surface: A surface (11-20) + / - 0.30;
Localization length: 16 + / - 0.5 mm;
Total thickness difference (TTV): < (including 10 m;
On the back: Ra = 0.5 to 1.0 (including m;
"
EVERLAND OPTICAL TECHNOLOGIES CORP. JILIN PROVINCE was established in June 2011. The registered capital is 50 million yuan RMB. The main business: Optical products, electronic products R&D, product sales, and the import and export of goods and technology import and export and agency.
