Light Keel Roller Forming Machinery Making Building Material

Light Keel Roller Forming Machinery Making Building Material
Supplier: Botou Huikeyuan Engineering Control Co., Ltd.
Price: US $ 15000-30000/Set
Min Order: 1/Set
Quantity::
Trade Terms: FOB,CFR,CIF
contact supplier

Product Specifications

Prod Model: HKY
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Main Moter Power: 7.5kw
Material Of Roller: 45#Steel Hard Chrome Plating
Hydraulic Station Power: 3kw
Hydralic Oil Pump: CB-E310
Speed: 8-12m
Spocket: P-25.4
Method: Hydraulic Pressure
Product: Tile
Brick Raw Material: Color Steel
Automation: Automatic

Product Description


light keel roller Forming Machinery Making Building Material

Technical Parameters:
1. Main Motor Power: 5.5KW
2. Hydraulic Station Power: 4KW
3. Hydraulic Oil Pump: CB-E310
4. Sprocket: P-25.4mm
5. Control system: PLC
6. Yield strength: 32Mpa
7. Diameter of Principal Axis: Ø 80mm
8. Material of Roller: 45#steel hard chrome plating
9. Processing Speed: 8m-12m/min
10. Frame: 300H steel welding
11. Roll plate thickness: 0.3-1mm

Equipment parts: Decolier, main roll formingmachine, hydyaulic cutter, hydraulic station, electric control system, counter, product supporter



Certificate

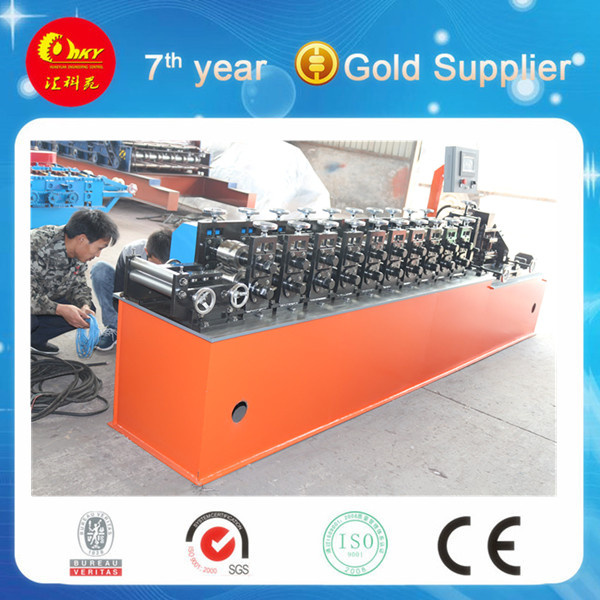

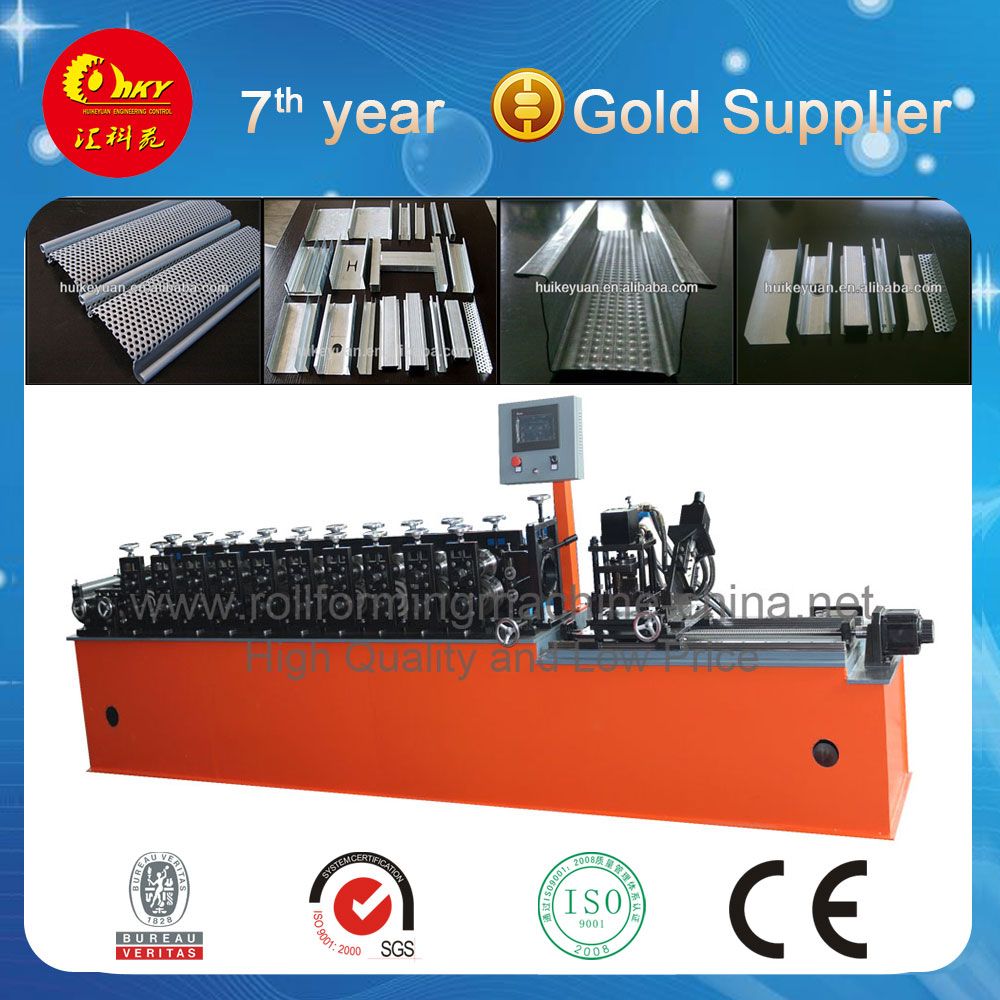

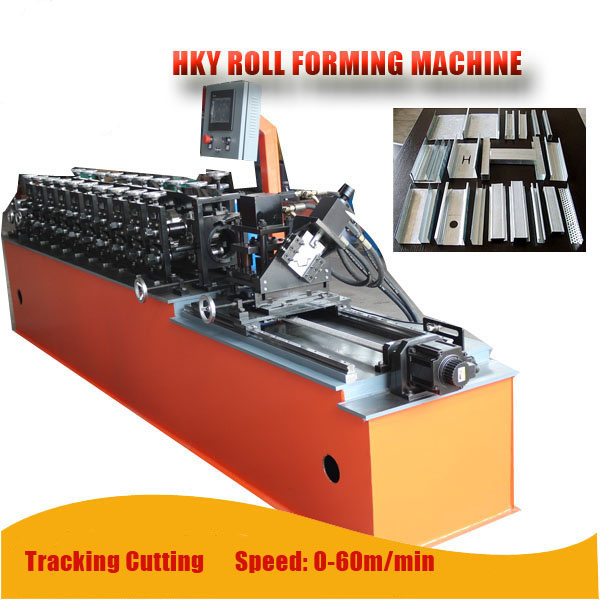

Light keel roll forming machine





                 Technical Parameter
ItemSpecification
Raw MaterialTypeColored  steel coil & galvanized coils
Thickness(mm)0..2-1.2mm
Yield strength(mpa)32Mpa
Roller material45# steel ,  hard chrome plating
Diameter of principal Shaft95mm
Forming speed(m/min)8-15m/min
Output speed(m/min)About 12 for 6m length sheet
Speed adjusting mode frequency transformer
Roller drive                                      Decelerating motor + Chain drive
Cutting modeHydraulic cutting
Cutter material GCr12 mould steel
Control modePLC
Main motor power(kw)5.5KW
Process flowDecoiler – Feeding-Leveling -- Roll forming---Hydraulic Cutting – product to run out table
                 Components of machine
Decoiler (manual decoiler )1set
Main roll forming machine1set
Hydraulic cutting system1set
PLC Controlling system1set
Run out table (auto. Stacker for option)1set



Botou Huikeyuan Engineering Control Co., Ltd is the "Important individually-run enterprise"of Botou City. Since many years, we devoted ourselves to develop the metal-plate cold forming machine, now we have unique management pattern and products development ability. Our company leads first in the same field. Our products have light structure and reasonable design, they won praise from same steel structure field because of the innovation constantly.
The company is located at side of No. 104 national road in Botou City, which is the famous casting city in China. The company covers an area of over30, 000 square meters. We have near 100 technicians in different skills. We remain the first-rate level on design and production of C-type and Z-type steel equipment, at the same time, we increased the tile press computer control system production line, antique glazed tile machine production line, H-type steel machine production line, big-span, no-beam structure equipment production line and automobile carriage board machine production line. We can design and manufacture the special type machine according to the customer's requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
According to the requirements of market, ou company produced new and high technological products-KDQ type quantified cutting control system in Jan. 2000. This control system has functions of measuring, monitoring and early warning. It has high starting point, accurate measurement, easy operating and complete monitoring. It is the originated one in domestic, a breakthrough of cutting control on microcomputer technique and the miracle of rutting fields.
At recent years, large of products were sold to Russia, India, England, Australia, America, Kazakhstan, Tajikistan, Malaysia, Nigeria, Rumania and Albania etc, more than 50 countries and regions. ur products won acclaim from all customers in domestic and abroad.
