Packaging & Delivery
Packaging Detail: 2k/rool with antisatstsic bag
Delivery Detail 5-10 day after the order is confirmed
Specifications of LED Light Source:
E and RoHS approved
1 color: White, warm white
2 IV: 2000-2500mcd
3 lifespan: 100000hrs, Taiwan chip
4 CRI: 75

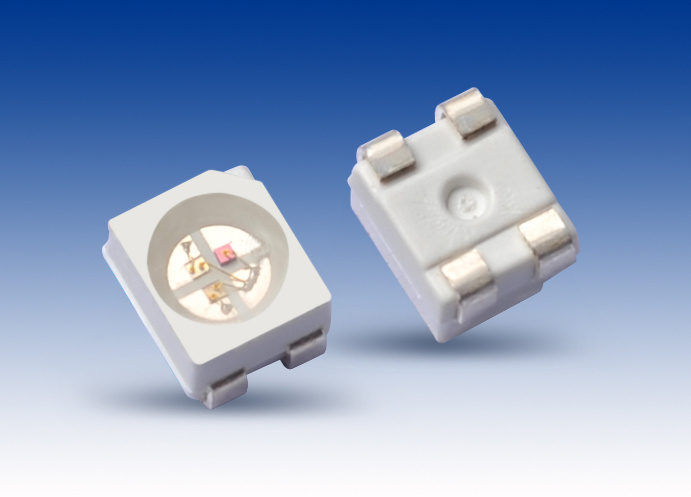

LED Light Source
Size: 3.5*2.8*1.9mm
Features-LED Light Source:
1, Extremely wide viewing angle
2, moisture sensitivity level: Level 4
3, suitable for all SMT assembly and solder process
4, RoHS compliant
5, Available on tape and reel
6, Package: 2000PCS/reel
7, PLCC-2 Package
Applications-LED Light Source:
1, Optical indicator
2, interior automotive lighting
3, indoor display
4, light pipe application
5, Backlight for LCD, switch and symbol display
6, General use, such as LED tube, LED strips, LED bulbs and so on.
Storage Profile of LED Light Source:
1. Do not open the moisture proof bag before ready to use the LEDs.
2. The LEDs should be kept at 30 degree or less and 60%RH or less before opening the package. The max, storage period before opening the package is 1 year.
3. After opening the package, the LEDs should be kept at 30 degree/40%RH or less, and it should be used within 7 days.
4. If the LEDs be kept over the condition of 3, baking is reduired before mounting, baking condition as below: 60± 5 degree for 12 hours.
|
Led Light Source Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Test Condition |
|
Luminous Intensity |
Iv |
2000 |
/ |
2500 |
mcd |
IF = 20mA |
|
Viewing Angle |
2θ 1/2 |
120° |
deg |
IF = 20mA |
|
Color temperature |
TC |
2800 |
/ |
9000 |
K |
IF = 20mA |
|
Forward Voltage |
VF |
3.0 |
|
3.6 |
V |
IF = 20mA |
|
φ (Lm) |
/ |
6 |
/ |
7 |
lm |
IF = 20mA |
|
Reverse Voltage |
VR |
/ |
/ |
5 |
V |
VR = 5V |
|
Reverse Current |
IR |
/ |
/ |
10 |
μ A |
VR = 5V |
