Product Specifications
| Prod Model: |
FS-D014 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material Forming: |
Hot Rolled Steel |
| Roof: |
Space Frame, Pipe Truss or as Required |
| Column: |
H Section Galvanized or Painted Steel |
| Clading: |
Corrugated Steel or Sandwich Panel |
| Door: |
Sliding Door |
| Connection: |
Bolt Connection |
| Size: |
as Per Customer Needs |
| Steel Type: |
Q235,Q345 |
| Window: |
PVC, Steel, Alluminium Alloy etc. |
| Advantage: |
Easy Installation, Eco-Friendly etc. |
| Material: |
Steel Structure |
| Usage: |
Workshop |
| Certification: |
BV |
| Customized: |
Customized |
Product Description
Detailed Information of Light Steel Structure Prefabricated Building for Workshop:
1. General Description of Light Steel Structure Prefabricated Building for Workshop:

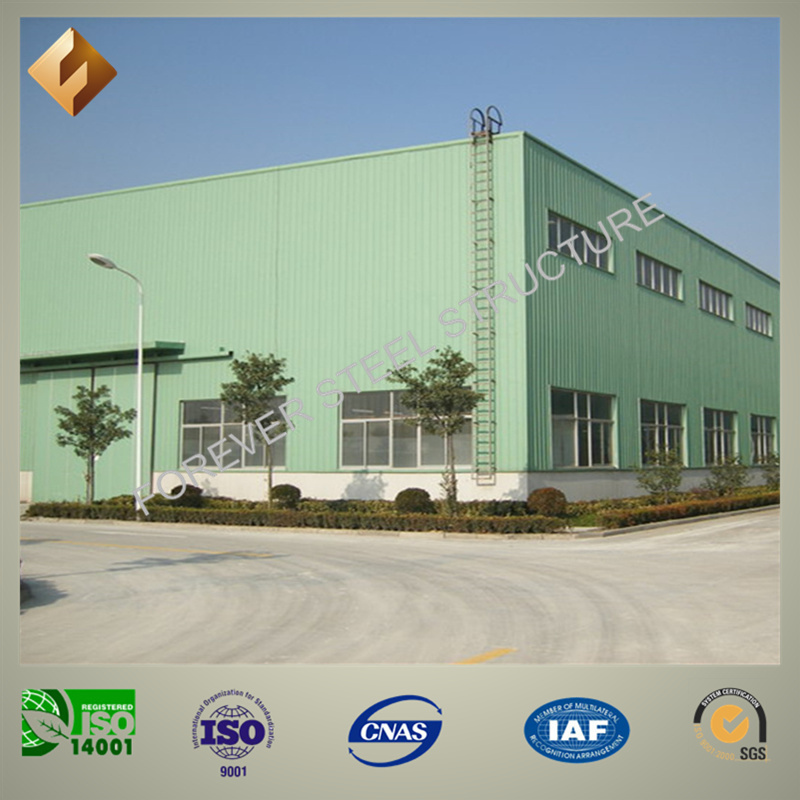

Light steel structure building is a new type of building structure system, which is formed by the main steel framework linking up H-section, Z-section, and U-section steel components, roof and walls using a variety of panels and other components such as windows and doors. Light steel structure building is widely used in warehouses, workshops, large factories, and so on.
2. Advantages of Light Steel Structure Prefabricated Building for Workshop:
1) Wide span: Single span or multiple spans, the max span is 24m without middle column.
2) Low cost: Unit price range from USD45/sqm to USD80/sqm according to customers' request.
3) Fast construction and easy installation.
4) Long using life: Up to 50 years.
5) Others: Environmental protection, stable structure, earthquake proofing, water proofing, and energy conserving.
Our Advantages as a Light Steel Structure Prefabricated Building for Workshop supplier:
1. Long History and Rich Experience in steel structure industry
We have more than 9 years' experience with steel structure manufacturing and steel building projects running. Now our projects stand in more than 20 countries around the world
2. Well-trained workers and advanced equipment.
More than 200 skilled workers running the 6 production lines all year round to ensure the project finished on time. All equipment is up to standard and all the facilities are maintained periodically by professional technicians.
3. Wide Range of Steel Structure Products:
Our products almost include all kinds of steel structure buildings, such as light steel workshops and warehouses, heavy industrial steel structure buildings, steel commercial buildings, prefab houses, container houses, steel structure aircraft hangars, space frame and pipe truss roofs, and mining belt conveyor galleries.
4. Solid Design and Management Ability:
We have more than 20 experienced engineers who are familiar with the structure design and management procedures of all steel structure projects. There is a high-qualified, high-efficiency and professional technical team ready to find best solutions for you at any time.
5. Best Service and Qualified QC Management:
Every one of our marketing managers is well trained and willing to provide best services. And we have a strict quality supervision system, every process will be inspected by specially-assigned technician. Meanwhile we are certified to ISO 9001.
| Material List for Light Steel Structure Prefabricated Building for Workshop |
| Foundation | Anchor bolts |
| Canopy | steel frame + steel sheet |
| Column | H section steel | Roof cladding | EPS sandwich panel |
| Tubular pillar | PU sandwich panel |
| Lattice column | Rockwool sandwich panel |
| Cross column | Corrugated steel sheet |
| Box column | Skylight panel |
| Beam | H section steel | Ventilator |
| Lattice beam | Wall cladding | EPS sandwich panel |
| Pipe truss | PU sandwich panel |
| Space frame | Rockwool sandwich panel |
| Roof purlin | C section steel | Corrugated steel sheet |
| Z section steel | Mezzanine | Decking floor |
| Wall purlin | C section steel | Checkered steel plate |
| Tie bar | Steel pipes | Insulation | Fiber glass wool |
| Roof bracing | Angle steel | Fasteners | High strength bolts |
| Steel pipes | Common bolts |
| Column bracing | Angle steel | Expansion bolts |
| Steel pipes | Accessories | Flashing |
| Pulling strap | Steel round bar | Trim |
| Sleeves | Steel pipes | Gutter |
| Knee bracing | Angle steel | Down pipe |
Qingdao Forever Steel Structure Co., Ltd lies in the City of Qingdao, a prosperous port for international shipping lines and hometown of many world-famous industry brands. Established in the year 2005, Forever has been specializing in the design, fabrication, exporting and installation on varied kinds of steel structures for 9 years.
There are 6 production lines for steel fabrication that all consists of advanced equipment in a total plant area of 100, 000 square meters. Different kinds of structural steel parts including welded H beams, T beams, "+" beams, box beams, steel pipe parts, angle steel parts, lattice beams, special shaped steel components, etc. Are fabricated here with an annual production capacity of 50, 000 metric tons. More than 200 experienced workers are busy with the production every day.
Qingdao Forever Steel Structure Co., Ltd has a professional technical team of more than 20 experienced engineers who are familiar with the structure design, local condition, customers' preference, governments' codes, etc. For overseas markets. Our team can help to design the structures of light steel gabled frames, commercial buildings, industrial platforms, pipe truss & space frames, petroleum pipe galleries and trestle structure for coal conveyors.
Forever has acquired the ISO9001 quality management system certificate and ISO14001 environmental management system certificate. With inherent honesty and growing strength that never stops, Forever has attracted customers from all over the world and our products have been shipped to more than 10 countries in Northern Asia, Middle East, Africa, Australia and Latin America.
