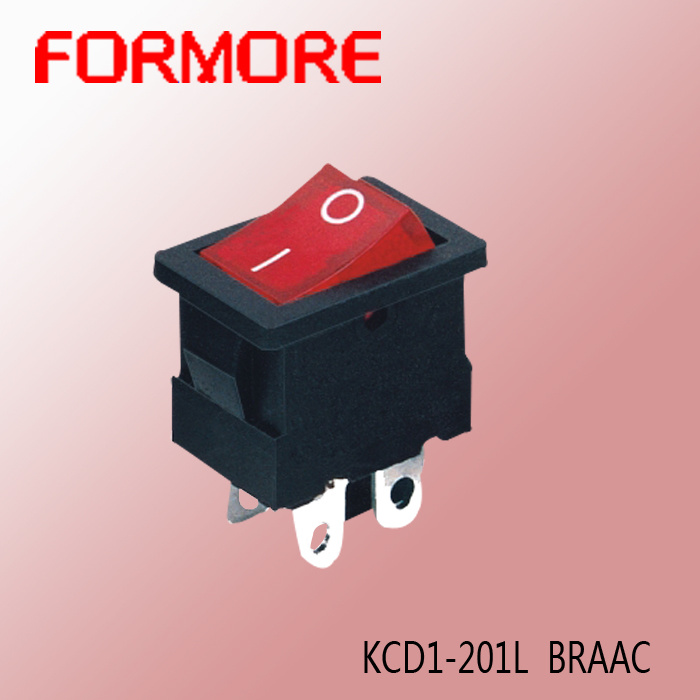

Lighted Rocker Switch

Product Specifications

Prod Model:	KCD1-201L
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
21*15:	Illuminated Rocker Switch, Four Pins
Usage:	Electrical Appliance

Product Description

Illuminated rocker switch


Advantagei


NO.1	Good quality!
NO.2	10 years manature!
NO.3	Many types of circuit breaker switch we can supply
NO.4	High quality, competitive price, great service!
NO.5	The best indicator light at the best price!

The Main Technical Parameters


Item	Different types of rocker switches
Mterial	PA66 /PC
Rating	6A 125VAC/3A 250VAC
Single package size	18X16X8 CM/500PCS
Contact Resistance	≤35MΩ
Insulation Resistance	≥500VDC100mΩ
OperatingTemperature	-25C~+85C
Ambient Temperature	-10ºC~+85 ºC
Dielectric Strength	1500VAC,1 Minute
Type	ROCKER SWITCH
Elactric life	>10000 Cycles
Electrical Life	>50000 Cycles
Terminals & Mid pins	Copper with silver plated
Ways And Pins	1 Way and 2 Pins
Contacts	Copper with compound silver
Terminals & Mid pins	Copper with silver plated

Technical Parameters


Experimental Current	Starting Condition	Experimental Time	Expect Result
1In	Cold Start	1h	Not Trip
1.5In	Followed The Experiment	t<=1h	Trip
2In	Cold Start	(t1)2s≤t≤60s(t2)	Trip
6In	Cold Start	(t3)0.1s≤t≤2ss(t4)	Trip
10In	Cold Start	(t5)0.02s≤t≤0.5s(t6)	Trip

SHIPPING && PAYMENT

Shipping way : Ship worldwide by sea,by air or by express like DHL, UPS, TNT, FEDEX,CHINA POST
Payment way l: Paypal, T/T, Western union, MoneyGram, or other methods.

COMPAY INFORMATION


Our company specializes in the R & D, design and manufacture of all types of rocker switches, rotary switches, inching switches, push button switches, electronic tool switches and power sockets, which are widely applied to home electrical appliances, car accessories and other electric equipments.

OUR SERVICE

Please kindly inform us which items you are interested, and the best price will be provided you upon receipt of your new enquiry
Any questions about more items, please feel free to contact us.
We are sincerely looking forward to establishing cooperate relationship with you.

Free sample is available!
If you need any parts, please kindly send us your drawing or sample for quotation.
