Product Introduction
TRSW series wireless signal surge protective device,designed according to IEC standard,decided international F10 head,ANSI F10 head, BNC head,N mode,L16,SL16,TNC and ETC coaxial interface,suitable for satellite ground station of satellite,wireless communication equipment gs GSM,CDMA,microwave station and etc system and wireless broad network and etc coaxial communication equipment,it can protect electronic communication equipment from being damaged by over voltage due to lightning strike,inductive over-voltage,and static discharging.
Technical Parameter

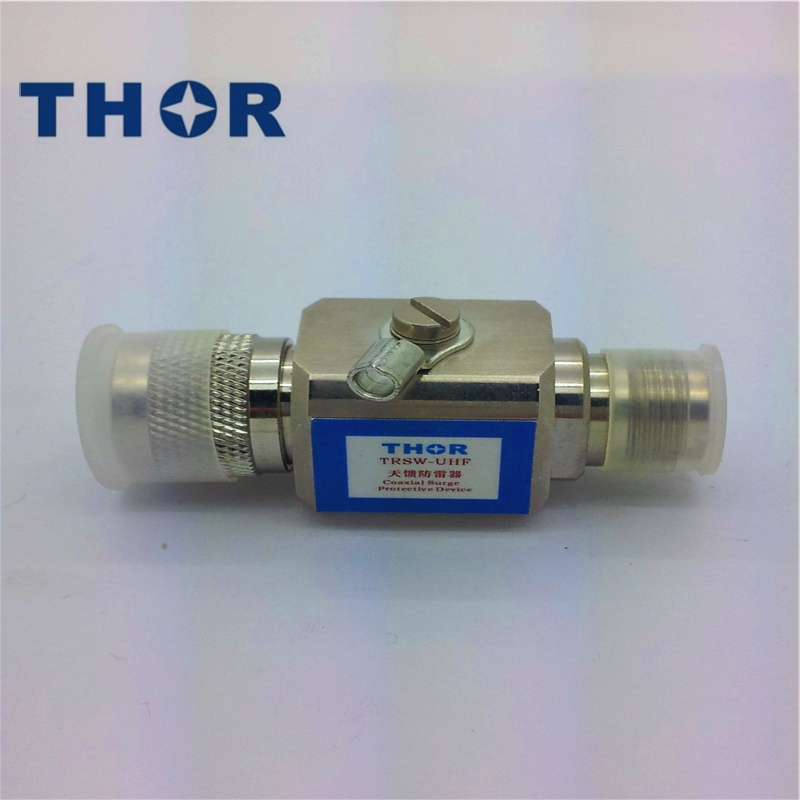

UHF-KK-G Lightning Surge Protection
| Name: | UHF-type gas discharge tube arrester
|
| Gender : | Male to Female
|
| Material Code: | TR3.640.291
|
| Type: | UHF-KK-G
|
| Level: | Universal Connector 2 levels
|
| Connection: | Threaded connection 5/8-24UNEF-2A
|
| Applicable standards: | IEC60169-1,IEC-60169-12
|
| Matching Relations: | With UHF-type pin, socket connector contacts match
|
| Specifications : |
1. Materials and Surface Treatment
|
| Inner conductor: | Material for the bronze QSi3-1 GB3123-82
|
| Overlay: | Three alloy electroplating
|
| Housing material: | Brass HPb59-1 GB4425-84
|
| Overlay: | Nickel plating |
| Insulator: | Politef
|
| Rubber washer: | Silicone rubber |
| Gas discharge tube arrester : | 90V/230V/350V
|
2. Electrical specifications:
|
| A.Characteristic resistance: | 50Ω |
| B.Frequency band range: | DC0.5GHz
|
| C.Rated voltage : | 750V
|
| D.Dielectric voltage: | 5000V |
| E.Insulation resistance: | ≥2000mΩ |
| F.Contact resistance: | Inner conductor≤5mΩ; outer conductor≤5mΩ |
3. Mechanical property:
|
| A.Separation of power within the conductor: | 1.1N |
| B.Mechanical lifetime: | 500times (12times/minute)
|
| C.Coupling nut torque: | Recommend 0.68~1.13N. m
|
4. Working environment:
|
| A.Environment temperature: | -4085ºC |
| B.Relative humidity: | +40ºC arrived 95% |
| 5.Installation mode : | Free Installation |
| 6.Storage conditions: | Within -10ºC+35ºC |
7,Relative humidity:
|
Not larger than 80 % , Ambient air without acid, alkali and other corrosive gases stored within the Treasury
|
| 8.Technology Use: |
When the prior on the butt after being tightened with a torque wrench
|
| 9. Materials meet the ROHS requirements |
