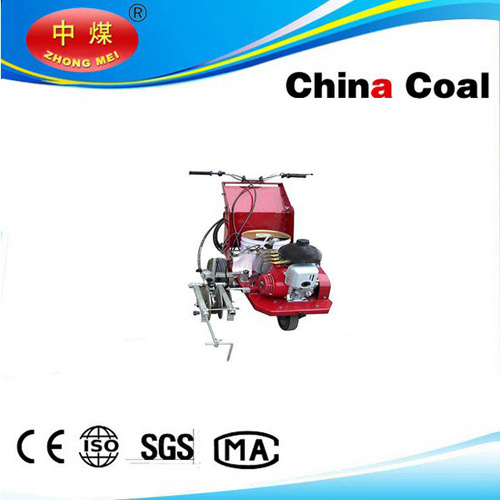

Product Introduction
The basic components of LJ-HXJ Line Marker machine is from the Graco
company (United States). Our company combine with the requests of sports venues line
and improve the technology. Line marker machine selects Honda engines which output
is stable and strong. The machine has the following features as high flow capacity, wide
application scope and easy operation. It is suitable for both the spray of ordinary paint
and that of higher viscosity paint, such as oil paint, alkyd resin lacquer, nitro lacquer,
epoxy resin lacquer and other kinds of paint.
Structure & Function:
1. Airless spraying painting technology for which the high-pressure pump is driven by a gasoline engine has been adopted in the line marking
machine to create clear, smooth, saturating and even limes, providing a high working
efficiency.
2. Both sides of the spraying gun are equipped with a paint-limiting plates, ensuring the line free of raw edges. Such plates may be lift through a
pulling line in steering, turning flexibly.
3. The spraying gun may be conveniently dismantled to change different nozzles and
control the line width, suitable for common airless spraying for marks or labels.
4. It runs by pushing, with convenient turning, reliable orientation, and flexible turning.
Main Parameter
| Honda engine power | 9.5Hp |
| Marking rate | 0.5-3KM/H |
| Common pressure | 10-20Mpa |
| Max flow rate | 11.4L/Min |
| Weight | 90Kg |
| Appearance measurement | 750*420*660mm |
Shandong China Coal Industrial & Mining Supplies Group Co., Ltd. is Situated Near The Beautiful Lake Named Weishan in The Centre of Jining City, Which Is The Hometown of Confucius and Mencius. The Reserved Coal Resource Is More Than 20 Billion Tons and Is One of The Top Eight Coal Production Bases in China.
Shandong China Coal Industrial & Mining Supplies Group Co., Ltd. is a Big Joint-Stock Enterprise and Was Founded at The Beginning of 1980s, Which Is an Comprehensive Company Specially Doing The Business of The Mine Construction Materials, Mechanical and Electrical Equipments, Pneumatic Machineries and Accessories. We Have Six Economy and Trading Branches and One Machinery Manufacturing Branch.
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with the high quality at the reasonable price.
