Product Specifications
| Prod Model: |
XTL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Chair, Sofa, Cabinet, Table, Massage Chairs, Dental |
| Name: |
Linear Actuator |
| Input Voltage: |
12V or 24V DC |
| Limit Switches: |
Inner |
| Type Of Duty: |
S2-10min |
| Max Speed: |
6mm-36mm /S |
Product Description

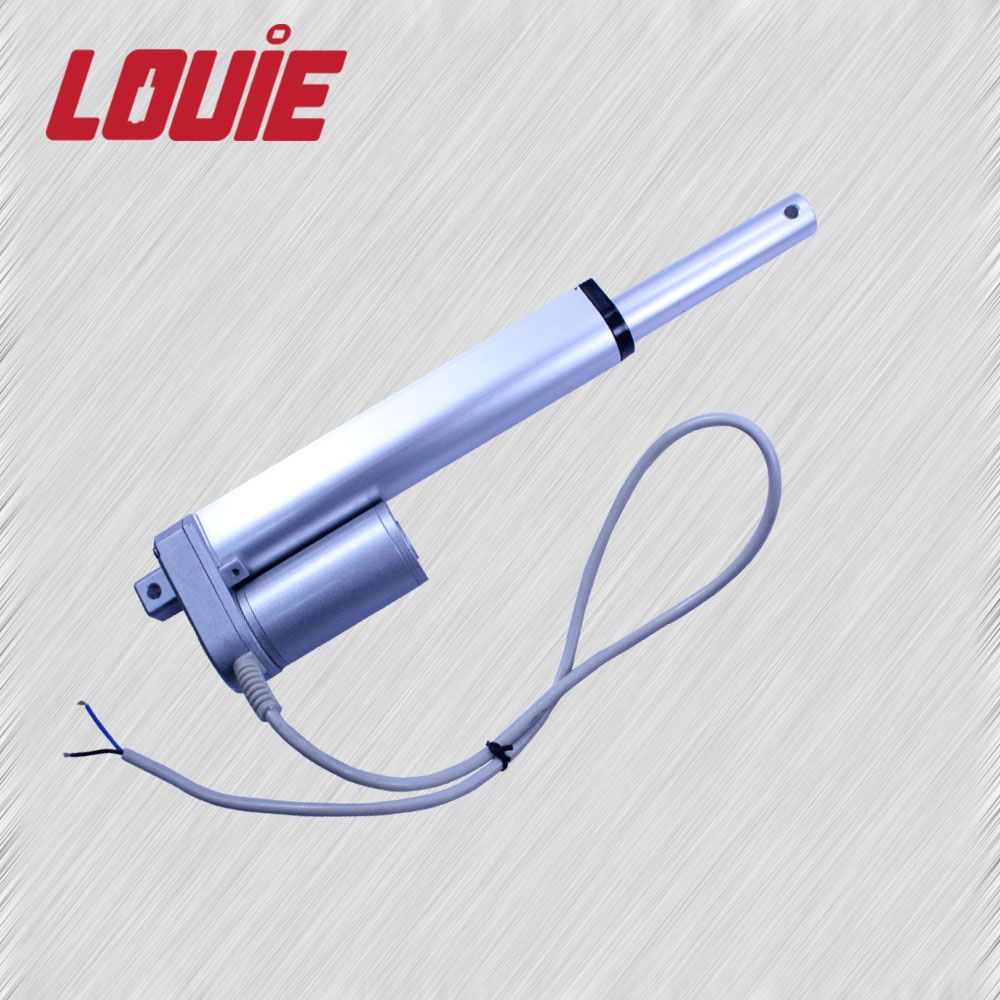

Mini linear actuator dc motor
1. Small motor linear actuator with ACME screws, built-in Micro switch and an internal diode,
2. Can automatically stop and enables the change of direction by simply reversing the applied voltage polarity.
3. Stroke length can be customized. Switches are not made to be adjustable.
4. Inversely proportional to the speed and power.
Technical Parameters
Input: 12V/24V/36V/48VDC
Load Capacity: <1000N
Speed: 5mm/s or 10mm/s
Stroke: 50~1000mm(option)
Min installation Dimension: SL=105mm+S
Limited Switches: inner
Operation temperature: -40°C to +65°C
Protection class: IP 65
Type of duty: 10% S2-18min
Control mode: wired,wireless
Covering color: Silvery white
Application : Furniture, Industry
Size formula
Installation size = stroke S +105 (± 3)
{installation of the potentiometer mounting dimensions = the stroke S +125(± 3)}
Installation Dimension Calculating Description:
Standard XTL:
For example: stroke 200mm,
Installation size = 200mm +105 mm = 305mm (± 3)
Extending maximum size 505MM (± 3)
Micro Linear Actuator 12V
| specification | stroke(mm) | mini install dimensions(mm) | thrust(N) | pulling(N) | speed(mm/s) |
| XTL50 | 50mm | S+105MM | 80N-1700N | 50N-1300N | 7/12/24/48 |
| XTL100 | 100mm | S+105MM | 80N-1700N | 50N-1300N | 7/12/24/48 |
| XTL150 | 150mm | S+105MM | 80N-1700N | 50N-1300N | 7/12/24/48 |
| XTL200 | 200mm | S+105MM | 80N-1700N | 50N-1300N | 7/12/24/48 |
| XTL250 | 250mm | S+105MM | 80N-1700N | 50N-1300N | 7/12/24/48 |
| XTL300 | 300mm | S+155MM | 80N-1700N | 50N-1300N | 7/12/24/48 |
| XTL350 | 350mm | S+155MM | 80N-1700N | 50N-1300N | 7/12/24/48 |
| XTL400 | 400mm | S+155MM | 80N-1700N | 50N-1300N | 7/12/24/48 |
| XTL450 | 450mm | S+155MM | 80N-1700N | 50N-1300N | 7/12/24/48 |
| XTL500 | 500mm | S+155MM | 80N-1700N | 50N-1300N | 7/12/24/48 |
| We can make different specifications according to your requirement. |
