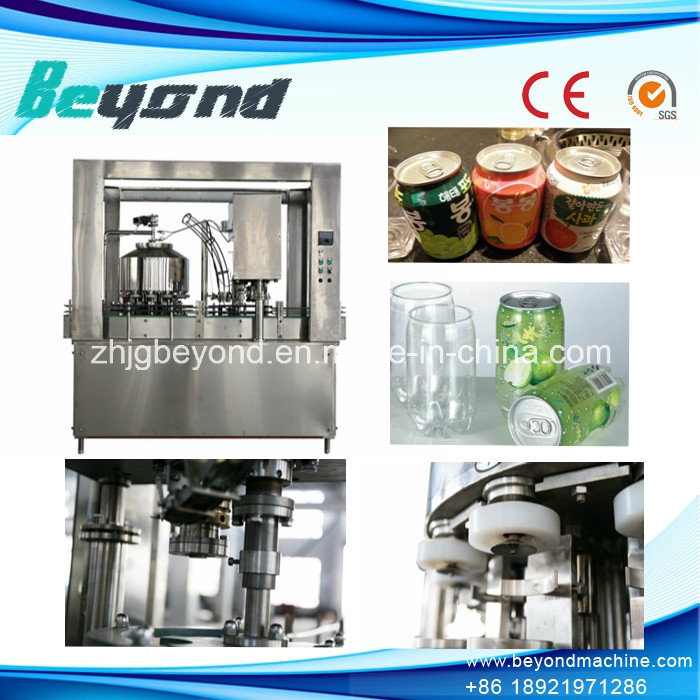

automatic high speed 2in1 can filliing seaming machine
Application And Features
1. It is applicable for pressure filler and capper of carbonated drinks in beer and drink industry.
2. It is a pop canned beer in the digestion and absorption of advanced foreign and domestic sealing machine on the basis of independent evelopment of the can filling, sealing unit.
3. Filling and sealing is the overall designed, power system by filling sealing system to ensure that both the absolute synchronization and coordination. It adopts the advanced machine, electrical equipment, and pneumatic control technology.
4. It has the characteristics of filling reposefully, high speed, liquid level control, capping reliably, frequency conversion timing, less material loss.
5. It can equip long distance control system according to the customers' request. It is the preferred equipment for the medium beer and beverage plant.
6. Major electrical components used in Japan Mitsubishi PLC, inverter and proximity switches, Siemens of Germany's Simulation output and solenoid valves of South Korea.
Rotary filling part
The filling system adopts isobaric filling principle. The liquid material tank is from stainless steel, inside or outside mirror polished. It is equipped with level controller. These valves are suitable for filling the beer.
Rotary capping part
1. There is a buffering system on the machine so that there is no can broken in process;
2. The can mouth is positioned automatically and the sealing mould shares good power distribution guaranteeing better sealing quality;
3. The sealing head with enough pressure so that there is no leaking after sealing;
4. Stable performance, low noise, less energy consumption and high working efficiency as well;
TWO IN ONE CAN FILLING MACHINE

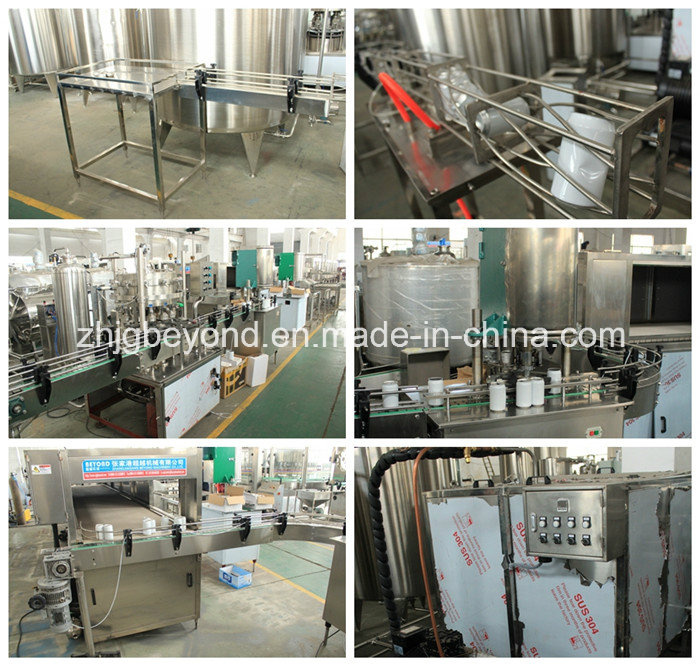

Liner can filling line
DATE | Items | YDGF18-4 | YDGF12-12-1 | YDGF18-18-4 |
| Production capacity | 5000-6000cPH (330ml) | 1500-3000cPH (330ml) | 6000-9000cPH (330ml) |
| Filling head | 18 | 12 | 18 |
| sealing head | 4 | 1 | 4 |
| Washing head |
| 12 | 18 |
| Applied can | 200/202/206/209 |
| Filling style | Isobaric filling |
| Filling temperature | 0-5 . c |
| Filling accuracy(liquid level) | +/-1mm |
| power | 4 KW | 3kw | 5.5kw |
| Power supply | 380V-50HZ/220V-60HZ |
| Size (mm) | 2500×2000×2350 | 2850×1800×2200 | 3200×2100×2350 |
| weight | 4200Kg | 3200kg | 4600kg
|
Connection:
Phone:+86 18921971286
Tel: +86-512-55398012
Fax: +86-512-55398012
Address: sanxing Industry park,
Zhangjiagang city, jiangsu province

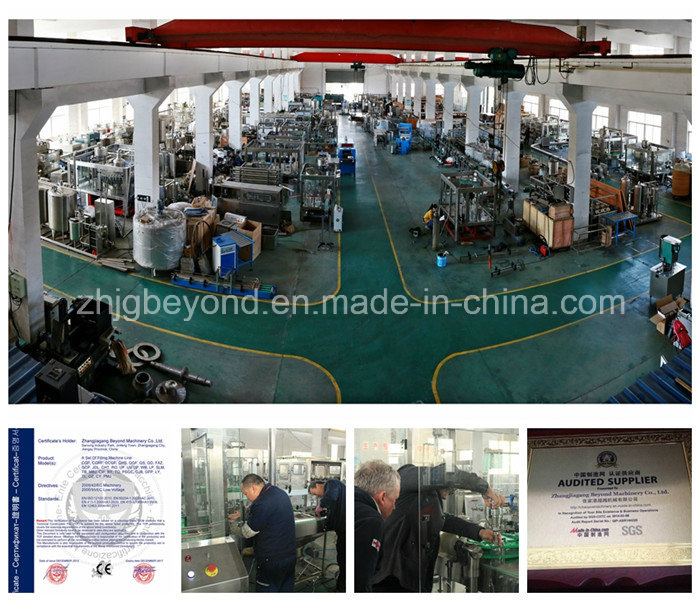

Zhangjiagang Beyond Technology Co., Ltd. Has more than 15 years experiences on beverage filling and packing machinery. We devote ourselves to the development, research and production of liquid food and beverage packing and filling industry and automatic blow molding machine in China.
For beverage machine, our Main products including:
The capacity of 2000-- 40000 BPH for hot filling (juice and tea filling) and MID-temp filling and aseptic cold filling lines.
The capacity of 2000-- 40000 BPH for mineral water and purified water producing line.
The capacity of 2000 -- 36000 BPH for carbonated beverage and cold filling producing line.
The capacity of 1000_8000BPH for vinegar and alcohol producing line. The capacity of 100 -- 2000 TBH for 3 gallon and 5 gallon barrel producing line.
The capacity of 2000--10000 BPH for milk producing line.
All kinds of water treatment equipment.
PET perform inject and blowing-stretching machine.
Plate and tube UHT device, and CIP system.
We carry a strict quality management system in accordance with CE and ISO9001 requirements. We have established a complete processing line including design and manufacture and sale and after sale service. Our products are sold well around the world.
We are proud to adhere to our company slogan "Engineering Excellence". Please be free to contact us for more information and we are ready for making business relations with you in the near further.
