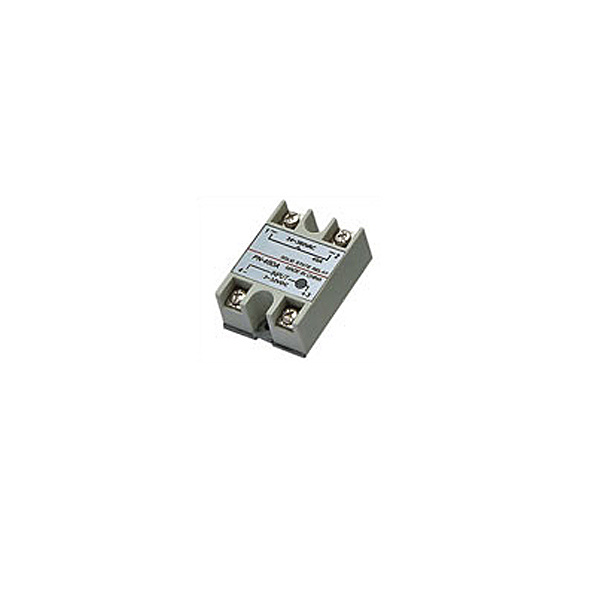

Linear Control Solid State Relay

Name: Linear Control Solid State Relay
Brand: China-Manufacturer-Directory.com
SKU: 765994255
Availability: InStock
Rating: 4.4 (112 reviews)

Supplier:	Elecal Electric Appliance Co., Ltd.
Price:	US $ 10/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Application :

High rellability by S.M.T & TQC.(Surface Mounting Technology)
High Isolation over than 50MQ/500VDC
High dielectric over than 2.5KV
Low enable current less than 7.5mA/12VDC CMOSIC or TTL Compatible.
Low EMI/EFI& surge by Zeero cross Trigger Method.
High surge current duration,over 10 Times of rated current/one cycle.
High surge voltage duration by snubber circuit.

Guiding of Model :

Control Method :

Zero Cross Trigger Method
Output TURN ON or TURN OFF only on zero cross point of sine wave,may avoid surge or EMI/RFI occurring.
Specially suited to control resistive,capacitive and Non-saturated inductive loads

Variable resistance control method
Power output is controlled by the trigger angle of triac with variable resister 250KQ/110VAC,500KQ/220VAC

Application Hints :

Input	NPN	Output	NO	Input	NPN	Output	NO	Input	NPN	Output	NO

Input	NPN	Output	NO	Input	NPN	Output	NO	Input	NPN	Output	NO

Type	Standard type				High voltage type
Model	PN-25LA	PN-40LA	PN-50LA	PN-75LA	PN-25LAH	PN-40LAH	PN-50LAH	PN-75LAH
Rated load current	25A	40A	50A	75A	25A	40A	50A	75A
Input voltage	4-20mA
Input resistance	Appr.1.2K
Control method	Phase control
Operating voltage	90-250VAC				250-480VAC
Min. black voltage	600VAC
Voltage drop	1.0V/25ºC
Max. durated current	275A	410A	550A	820A	275A	410A	550A	820A
Leakage current	% of full load
Dielectric strength	Over 2.5KVAC/ 1min.
Isolation strength	Over 50M/500VDC
Operating temperature	-20ºC~+80ºC
Housing Material	Intensive ABS
Weight	105G

Elecal Industrial Automation is Specializing in the manufacture and export of low-voltage and hight-voltage electrical products in China. Such as MCB, MCCB, ELCB, RCD, Contactor, Fuse, Relay, Switch, Distribution Box etc.

All the manufacturing process of the products is in strictly conformity to international IEC standard and we have established and perfected quality control procedures in accordance with ISO9001 international quality management system.
