Linear Type Juice Beverage Filling Line / Machine / Machinery

Product Specifications

Prod Model:	Linear Type
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name:	Linear Type Juice Beverage Filling Line / Machine
Bottle Shape:	Round or Square
Touch Screen:	Siemense
PLC:	Siemense
Filling Temperature:	0-85 Degree
Machine Weight:	2500kgs
Size:	2500mm*2050mm*2100mm
Automatic Grade:	Automatic
Structure:	Linear
Feed Cylinder Structure:	Multi-Room Feeding
Type:	Volumetric Filling Machine
Filling Valve Head:	Multi-Head
Packaging Container Lifting Structure:	Chute Pneumatic Combination Lifting
Filling Principle:	Pressure
Packaging Type:	Bottle
Dosing Device:	Plunger
Material Type:	Juice ,Water
Packaging Material:	Wooden Cases

Product Description

Linear Type Juice Beverage Filling Line / Machine / Machinery


Linear Type Juice Beverage Filling Line description:

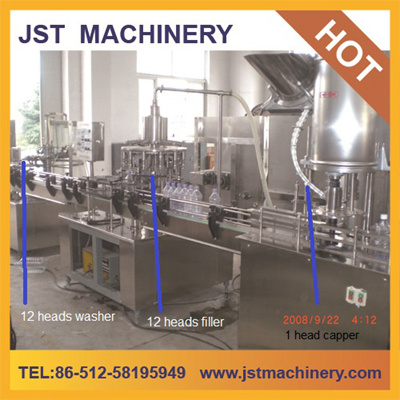

RCGF 12-12-1 Machine is a kind of professional filling machine integrator for no-gassy beverage. It is multifunctional which can be used for washing, filling and capping. It is a kind of advanced filling machine integrator which is innovated in following the process requirements of filling Pure water, Mineral water, juice, wine and etc based on the importing and assimilating the foreign advanced technology
Besides using photo-electronic detectors to detect the running of every important sub-process, it employs PLC from OMRON or Siemens for automatic control of the whole process and new type air-channel for bottle-loading featuring speediness and damage-free of bottle. The handing-over of bottles between two linking structures is fulfilled by applying clamping-bottle-neck method. For bottle of different shape only a few parts need to be changed and the substituting is simple, which shows the machine is of good adaptability.


Linear Type Juice Beverage Filling Line rinser:
The empty bottles can be turned over 180° Along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high. Rinsing machine adopts JST original overturn and double-opened bottle clip. Bottle clip lock the bottleneck, the material of bottle clip is SUS304, which is hygienic and durable. Bottle clip equipped with efficient spray on nozzle. The extrusive droplet with 15° Angleensures to wash all side of the bottle, and can save the water.


Linear Type Juice Beverage Filling Line filler:
Filling machinery design of filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck, the control accuracy is within ± 2mm (subject to bottle design). The filling valve material is SUS304. The filling system has liquid level automatic control. Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck, it starts to fill. Bottle is conveying by the wheel in the filling part.


Linear Type Juice Beverage Filling Line capper:
Screw capping machine is most precision part in the 3-1 machine, it has a big influence to the goods stability and defective rate. Our screw capping has following feature.
1)JST import of advanced technology of screw capping, improve the stability and reliability of the screw capping machine. The magnetic torque is used for screw capping. Thepower of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.
2) In the screw capping part. It installed photoelectrical control, when it has no cap, or the cap is bad, the machine will stop automatically.


Linear Type Juice Beverage Filling Line after sales service:
We will send one professional engineer to install the whole line for you, but you should pay him USD 60 / DAY as salary, also include his return tickets, room, food and visa fee.
Machine guarantee time: 12 months


How to get your suitable machine or Juice Beverage Filling Line?
Enquiry: Contact us by email, phone call, fax, Instant Messenger and let us know your enquiry.
Discussion: Specify the items you desire, confirm specification
Quotation: Prices offered and accepted.
Place order as per contract or discussion.
Perform invoice( sales contract ) In duplicate confirmed and kept by both sides.
Payment settled.
Order completed under our arrangement.
Goods shipped as per contracted term.
Goods arrive at local port or warehouse, depending on contracted term.


Any question about this machine, contact with us please, sincere service for you and welcome to JST Katherine.
