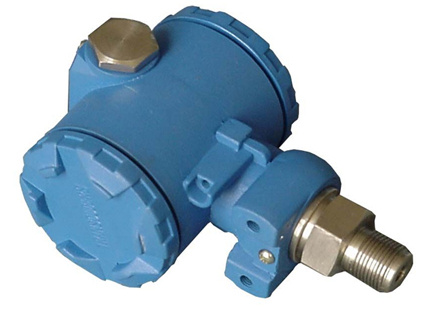

Liquid Pressure Transmitter

1. High accuracy, good stability.
2. All series have unified structure.
3. Strong interchangeability of parts, strong resist.

Features:
1. Employing hi-quality sensor and exclusive V/I integrated circuit, little peripheral device, high simple and easy maintenance.

2. Little volume, slight weight, convenient installation and debugging

3. Overall and sound design, respectively provide ordinary type, corrosion-proof, intrinsically safe explosionproof type and isolation explosion-proof type.

4. Aluminum die casting outer shell, tri-terminal isolation, hi-temperature baking lacquer protective cover, firm and durable.

5. 4-20mA DC two-wire system, strong interference -resistance ability, long transmitting distance.

6. LED, LCD, pointer, the three kinds of indicating gauge head; Convenient local reading

7. Can be applied to measure viscous, crystallized and corrosive mediums

Model	A1	B1
Accuracy	0.075%   0.1% F@ S        0.25% F@ S        0.5% F@ S
Measuring range	-95kPa~60MPa
Medium	Liquid, gas and vapor
Storing temperature	-40C ~125C
Operation temperature	-10C~80C	-40C ~80C
Corrosion-proof material	316 SS	ceramics
Effect of temperature	< 0.02%/C	< 0.015%/C
Loading resistance	< 750 Ohm
Overload ability	Triple span	double span
Mechanical protection	IP65
Humidity	< =95% RH
Output	Two wire   4~20mA DC              four wire 0~10mA DC
Related equipment	EXZ231B safety grid
Weight	2.5 Kg
