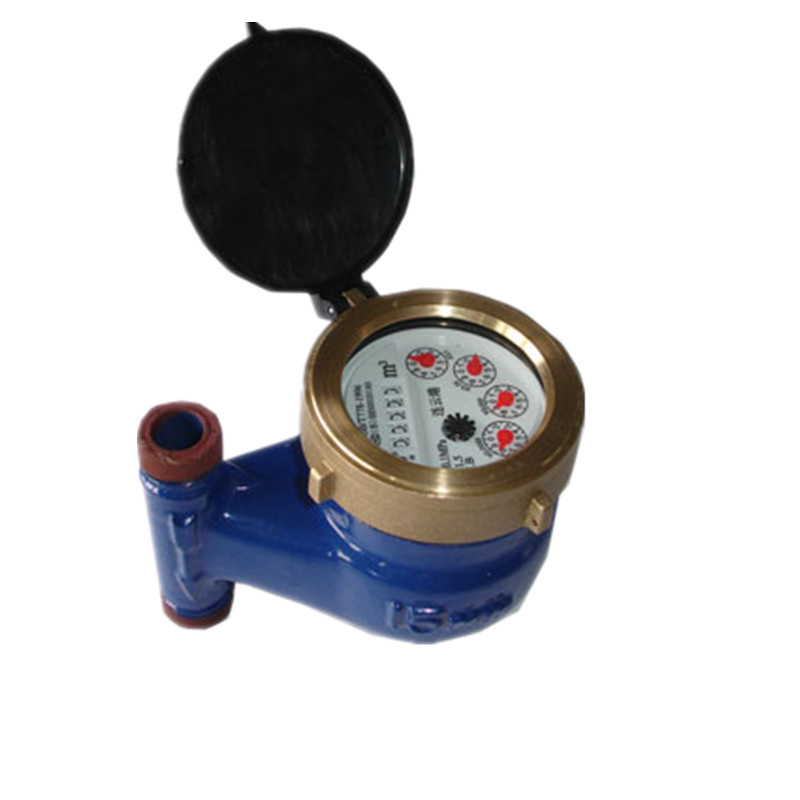

Liquid Sealed Vertical Water Meter for Water Through Pipeline
Product Specifications
| Prod Model: |
SKZS-25 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Standards: |
ISO 4064 |
| Accuracy: |
Class B |
| Water Temperature: |
0.1~40 Centigrade |
| Water Pressure: |
Less Than 1.0MPa |
| Overload Flow: |
5m3 |
| Transitional Flow: |
200L/H |
| Minimum Reading: |
0.0001 |
| Maximum Reading: |
99,999 |
| Connecting Thread: |
G1b |
| Brand: |
Radarking |
| Install: |
Horizontal |
| Medium Temperature: |
Cold Water |
| Level Measurement: |
B |
| Counter Instructions: |
Digital |
| Nominal Diameter: |
15-50mm |
| Application: |
Civil |
| Principle: |
Speed of Water Meter |
| Medium Pressure: |
General Water Meter |
| Work Environment: |
Dry Water Meter |
Product Description
This range of water meter is used to measure the total quantity of cold(hot) potable water which consumed in household or a resident unit, passing through the pipeline.
Compliance with standard: ISO 4064 Class B
Feature
Wet-dial, dry dial or liquid sealed for option
Multi-jet
Measuring accuracy conform to ISO 4064 Class B standard
Installed in vertical pipeline and is suitable for household as branch meter
Cold water meter or hot water meter for option
Specifications:
Ambient condition:
Water temperature: ≤ 40º C
Water pressure: ≤ 1MPa
Standard: ISO4064
Error indicating:
Low zone: ± 5% from minimum flow rate to transitional flow rate
High zone: ± 2% from transitional flow rate to overload flow rate
Meter size
Dia DN (mm) | Class | Qs Overload Flow | Qp Nominal Flow | Qt Transitional Flow | Qmin Min Flow | Min Reading Lectura | Max Reading Lectura |
| m3 /h | 1/h | m3 |
| 15 | A | 3 | 1.5 | 150 | 60 | 0.0001 | 99999 |
| B | 120 | 30 |
| 20 | A | 5 | 2.5 | 250 | 100 | 0.0001 | 99999 |
| B | 200 | 50 |
| 25 | A | 7 | 3.5 | 350 | 140 | 0.0001 | 99999 |
| B | 280 | 70 |
Wuhan Radarking Electronics Corp. is a high-tech corporation which established in 2002. As professional manufacture in meters, our mainly products including: Full Digital IC Card Prepayment Electronic Meters, Smart Electronic Meters, IC Card Prepayment Water Meters, Gas Meters as well as Meter (network) Reading System. We are one of the few manufacturers in Hubei Province whose annual production of electronic meters and water meters can be up to 2.4 million sets.
Employee: There are more than 200 employees including 50 technicians, 10 senior technical staff and 70 employees who have already got college degree, 30 of them obtained metrological verification certificate. Production and technical staff all undergo a rigorous pre-service training, who are skilled and have a strong sense of quality.
Technology: We have a R & D group of 20 persons (About 10% of the company's employees).
Equipment: We have 260 sets of production and testing equipments, including 7 production lines, more than 20 units of the calibration device such as wave soldering machine, reflow soldering machine, automatic placement machine, plug-in assembly lines, assembly lines, packing lines and etc, which have all meet the production requirement.
Material: Materials are in strict accordance with the requirements of the meters and the procurement of national standards, we have already established a qualified supplier evaluation system, and developed a series of test standard. All the materials have to pass strict test before entering into factory, and then be used in production. Measures have been taken to prevent damp and static electricity to ensure the normal performance of the raw materials.
Craft: To make a variety of electronic meters in accordance with the production process, we have developed process documents, to ensure the quality of the products.
Test: We have electronic meter laboratory and full range of test equipments, such as EMC Equipment (ESD, EFTB, SURGE, RF, Attenuation Oscillasion Impulse, DIP, Impulse Current, Pulsed Voltage and etc), Environmental Test Equipment (Alternating Temperature Humidity Test Chamber, Dust Test Devices, Waterproof Test Device, Shock Test Device, Vibration Test Device and etc), R&D Testing Equipment. We make a variety of electronic meters in accordance with the test and develop our test documents to ensure the quality of the products.
Environment: Our production base covers an area of 30 acres, and self-building workshop covers an area of 7000 square meters, production and storage area covers more than 5000 square meters.
Management: We have a high efficiency, innovative, serious management team, and the factory has already passed ISO9001-2008 QMS.
