Product Specifications
| Prod Model: |
LWGY |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Experience: |
More 20 Years |
| Exported: |
More 80 Countries |
| Price: |
Competitive |
| Maintenance: |
Less and Easy |
| Technology: |
Advanced |
| Type: |
Turbine Flow Meter |
| Accuracy: |
>?à1% |
| Measuring Media: |
Liquid |
| Measuring Principle: |
Mechanics |
| Size: |
DN10-50 |
| Main Application: |
Corrosive Liquid/Gas |
Product Description

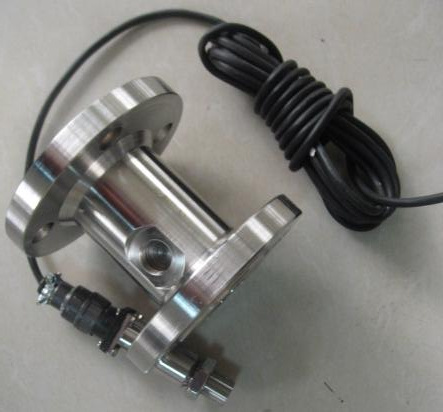

Liquid Turbine Flowmeter
Description
4mm, 0.04 ~ 0.25m3 / h
6mm, 0.1 ~ 0.6m3 / h
10mm, 0.2 ~ 1.2m3 / h
15mm, 0.6~6m3 / h
20mm, 0.8~8m3 / h
25mm, 1 ~ 10m3 / h
32mm, 1.6 ~ 16m3 / h
40mm, 2 ~ 20m3 / h
50mm, 4 ~ 40m3 / h
65mm, 8 ~ 80m3 / h
80mm, 10 ~ 100m3 / h
100mm, 20 ~ 200m3 / h
125mm, 25 ~ 250m3 / h
150mm, 30 ~ 300m3 / h
200mm, 80 ~ 800m3 / h
1% accuracy
For DN4-DN40, process connection is thread type, Max pressure is 6.3Mpa.
For DN50-DN200, process connection is flange type. Max. Pressure is 2.5Mpa;
For DN4-DN10, sensor was equipped with straight pipe and filter.
For sensor over DN15, straight pipe can be equipped per request.
(2)Operation and adjustment
To keep liquid clean and no fiber and impurity.
Please open valve slowly and fill the sensor gradually. High water hamper to the empty sensor Was prohibited.
Normally sensor maintenance period is six months. During cleaning of sensor, please pay Attention not to damage measurement cavity parts, especially the turbine. Before assembly, please Pay attention to the relationship between the turbine and flow-guider.
For storage, please clean the liquid inside the sensor, and cover 2 ends of the sensor Against Impurity entering the sensor. Please keep the sensor in dry and clean place
For equipped filter, please clean it periodically. When it's not used, please clean and store it
Just as to sensor.
Sensor's transmission cable can be laid overhead or underground (please put the cable into Metal pipe if it's buried underground. )
Before sensors installed, please connect electrically the sensor to indicator to see whether Indicator shows flow when user rotates the turbine. If no flow displays on indicator, please check the Relevant part to kill trouble before installation.
nstallation |
Horizontal side mounted ( G1 is exterior,G2 is inbuilt) |
Installation screw |
G1 is NPT1/2",G2 is M10~M16 |
Electric connection |
300mm, UL1430 AWG22 |
Material |
SUS304 |
Application ration |
Above 0.65 |
Working pressure |
20 Bar |
Working temperature |
-10~80°C |
Accuracy |
±2mm (in the water) |
Repeatability |
±1mm (in the water) |
Form switch |
N.C./N.O |
Working voltage |
250Vac, 200Vdc |
Contact capacity |
0.7A/50W/SPST |
Float dimension |
Dia.17 * 55 |
Would you pls give us more specific information as below:
What's the medium?
What's material ?ss304 ,ss316 or plastic)
What's installation :vertical or horizontal?
Is one float or 2 float type switch?
What's required dimension of level switch?
What's required screw type and flange ?
what's the pressure ?
What's the length of the cable?
what's distance for move point?
required dimension of level switch?
Payment Terms
1.Loading Port: Shanghai China
2. Samples Leading Time: 3-7 working days
3. Delivery Time: Within 7-15 days after payment
4.Payment: T/T, Western Union, Paypal
After-sales service
We promise to deliver the following after-sales service:
1. Warranty: The warranty period is 12 months starting from the shipping date;
2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;
3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges incurred such as travel expense;
4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.
Cixi flowmeter Co., Ltd. Was established in 2008 and since then has been dedicating itself to research and manufacture of various kinds of flowmeter. With sophisticated experience in technology and management, CIXI Flowmeter has made a name for itself as an excellent manufacturer of various kinds of flowmeter. In 2007, we have especially set up Shanghai Cixi Instrument Co. Ltd for handling the deals of Export.
Thanks to outstanding performance of products, CIXI Flowmeters are being applied in more and more fields where there' S liquid to measure. Now company involves in polyurethane, fuel consumption, automotive, dispensing robots, semiconductors, odorizing equipment, batteries, electricity, telecommunications, petroleum, chemical, coal, metallurgy, water conservancy, food, medical, machinery and other industries. CIXI Flowmeters have found users in many countries besides China, such as Malaysia, India, Thailand, Vietnam, South Africa and so on. Increasing number of users are finding that CIXI Flowmeter are kind of product with super performance and reasonable price.
Now we have super mirco flow meter, oval gear flow meter, coriolis mass flow meter, electromagnetic flow meter, piston flow meter, and Spur gear flow meter, gear pump, gear metering pump. There is no other manufactures who can produce micro flow meter and many company import this kind of flow meter from Japan or America. After we put our micro flow meter into market, the news was spreaded widely and we got many reputation from our client. We now have sold this flow meter to more than 100 countries which contain wide and different applications. Meanwhile our oval gear flow meter has aquired many certificates and filled the vacancy of Chinese market. At the same time, in order to cooperate with the whole set of sales and services of the product, we can also produce supporting quantitative systems, various proportioning systems and industrial automation systems, allowing customers to have a wider range of choices.
