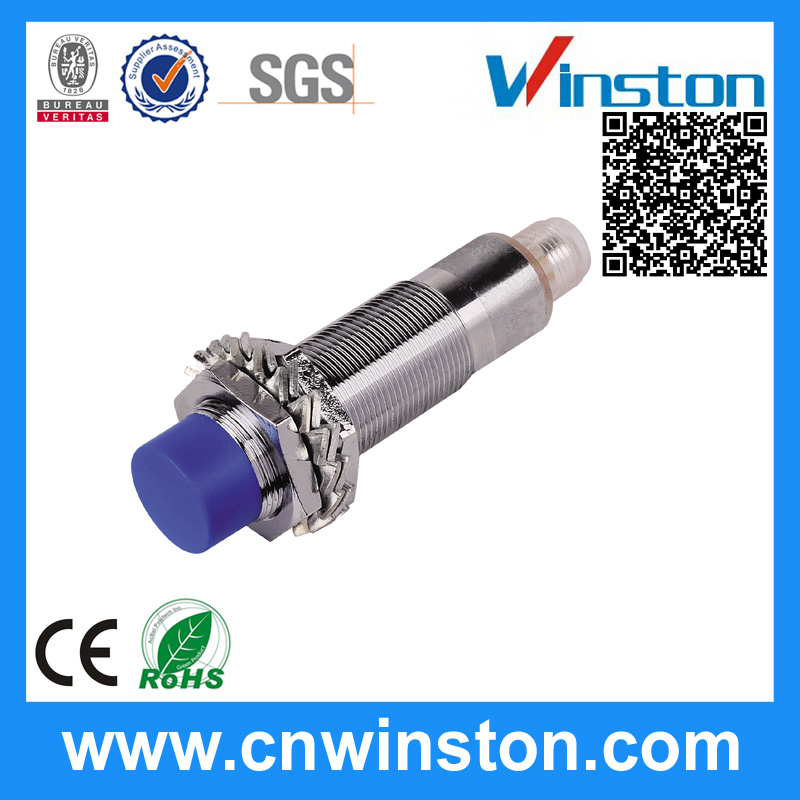

Product Description:
(1)Compact volume
(2)High precision of repeated location
(3)Diversified exterior structures
(4)Good performance of anti-interference.
(5)Many output forms
(6)High on-off frequency.
(7)Wide voltage range
(8)Dust proof, vibration proof, water proof and oil proof.
(9)With short-circuit protection and inverted connecting protection.
(10)Long service life
Technique parameter:
1. Switch category(LM: Inductance type; CM: Capactitance type; SM: Hall type; AM: Safety explosion-proof type; XM: Mimic linear type)
2. Outward appearance code(C: Cylinder type; F: Angular column type and planeinstallation type)
3. Operating voltage(30: 6-36VDC; 310: 5-24VDC; 320: 12-60VDC; 20: 90-250VAC; 210: 24-250VAC; 220: 380VAC; 40: 12-240VDC/24-240AC; 50: Special voltage)
4. Detection distance( 01: 1mm; 05: 5mm; 10: 10mm)
5. Output method (N: Three-line DC NPN output; P: Three-line DC PNP output; L: Two-line DC output; AC two-wire output; J: Relay output; NP: NPN+PNP output)
6. Output status(A: NO; B: NC; C: NO+NC; MU: Mimic voltage; MI: Mimic current)
7. Auxi function code(T: With connector; Y: Water proof, oil proof; I: Special requirement; H: High temp resistance; R: Ring type)
| DETECTION DISTANCE 5mm |
|
| Flush | DC 10-30V | NPN | NO | LM18-3005NAT3 |
| NC | LM18-3005NBT3 |
| NO+NC | LM18-3005NCT3 |
| PNP | NO | LM18-3005PAT3 |
| NC | LM18-3005PBT3 |
| NO+NC | LM18-3005PCT3 |
| two wire system | NO | LM18-3005LAT3 |
| NC | LM18-3005LBT3 |
| AC 90-250V | SCR Control-lable silicon | NO | LM18-2005AT3 |
| NC | LM18-2005BT3 |
| NO+NC |
|
| Relay output |
|
| DETECTION DISTANCE 8mm |
| Non-Flush | DC 10-30V | NPN | NO | LM18-3008NAT3 |
| NC | LM18-3008NBT3 |
| NO+NC | LM18-3008NCT3 |
| PNP | NO | LM18-3008PAT3 |
| NC | LM18-3008PBT3 |
| NO+NC | LM18-3008PCT3 |
| two wire system | NO | LM18-3008LAT3 |
| NC | LM18-3008LBT3 |
| AC 90-250V | SCR Control-lable silicon | NO | LM18-2008AT3 |
| NC | LM18-2008BT3 |
| NO+NC |
|
| Relay output |
|
| Controloutput | DC | 200mA |
| SCR/ Relay | 300mA |
| Output voltagc dropDC/AC | NPN/PNP< 3V, Two wire< 3.9V, AC< 10V |
| Consumption current | DC< 15mA, AC< 10mA |
| Standard detected object | 18*18*1(A3 iron) |
| Repeated precision | 0.02 |
| DC/AC | 200Hz/25Hz |
| Working environment temperature | -25~+70º C |
| Insulation resistance | 50MΩ |
| Shell material | Metal |
| Protection grade | IP67 |
| Altemative model at home and abroad | LJ18A3-8- |
