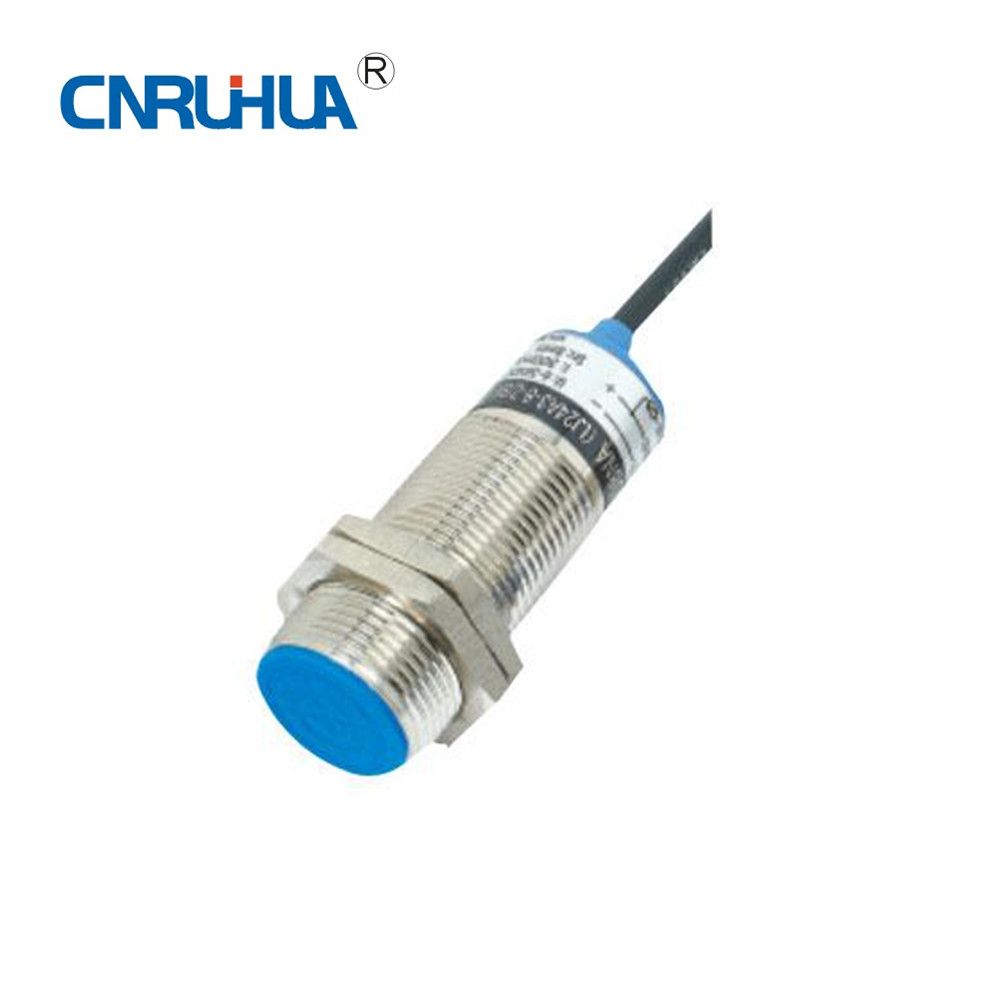

LM24 Cylinder type inductive proximity sensor switch
CE, OEM, ODM
Long service life
High on-off frequency
Dust proof
LM24 Cylinder type inductive proximity sensor switch
Main features:
Compact volume
High precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof, vibration proof, water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Long service life
Model explanation of proximity switch
1. Switch category(LM: Inductance type; CM: Capactitance type; SM: Hall type; AM: Safety explosion-proof type; XM: Mimic linear type)
2. Outward appearance code(C: Cylinder type; F: Angular column type and planeinstallation type)
3. Operating voltage(30: 6-36VDC; 310: 5-24VDC; 320: 12-60VDC; 20: 90-250VAC; 210: 24-250VAC; 220: 380VAC; 40: 12-240VDC/24-240AC; 50: Special voltage)
4. Detection distance( 01: 1mm; 05: 5mm; 10: 10mm)
5. Output method (N: Three-line DC NPN output; P: Three-line DC PNP output;
L: Two-line DC output; AC two-wire output; J: Relay output; NP: NPN+PNP output)
6. Output status(A: NO; B: NC; C: NO+NC; MU: Mimic voltage; MI: Mimic current)
7. Auxi function code(T: With connector; Y: Water proof, oil proof; I: Special requirement;
H: High temp resistance; R: Ring type)
Technical Parameters:
| INDUCTIVE PROXIMITY SWITCH |
| Outward appearance code | LM24 |
| Appearance |
|
|
|
|
|
|
|
|
|
|
| Dimension |
|
|
|
|
|
|
|
|
|
|
| Flush | Detection distance | 8mm |
| NPN | NO | 3008NA |
| DC | NC | 3008NB |
| 6 | NO+NC | 3008NC |
| ~ | PNP | NO | 3008PA |
| 36 | NC | 3008PB |
| V | NO+NC | 3008PC |
| two wire system | NO | 3008LA |
| NC | 3008LB |
| AC | SRC Control label silicon | NO | 2008A |
| 90 | NC | 2008B |
| ~250 | NO+NC | 2008C |
| V | Relay output |
|
| Non-flush | Detection distance | 10mm |
| NPN | NO | 3010NA |
| NC | 3010NB |
| DC | NO+NC | 3010NC |
| 6 | PNP | NO | 3010PA |
| ~ | NC | 3010PB |
| 36 | NO+NC | 3010PC |
| V | two wire system | NO | 3010LA |
| NC | 3010LB |
| AC | SRC Control label silicon | NO | 2010A |
| 90 | NC | 2010B |
| ~250 | NO+NC | 2010C |
| V | Relay output |
|
| Control output | DC | 200mA |
| SCR/Relay | 300mA |
| Output voltage dropDC/AC | DC<3V AC<10V |
| Consumption current | DC<15mA AC<10mA |
| Standard detected object | 24×24×1(A3 iron) |
| Repeated precision | 0.05 |
| DC/AC Response frequency | 200Hz/25Hz |
| Working environment temperature | –25-75 |
| Insulation resistance | 50MΩ |
| Shell material | Metal |
| Protection grade | IEC standard IP67 |
| Altemative model at home and abroad | LJ24A4-10 |
