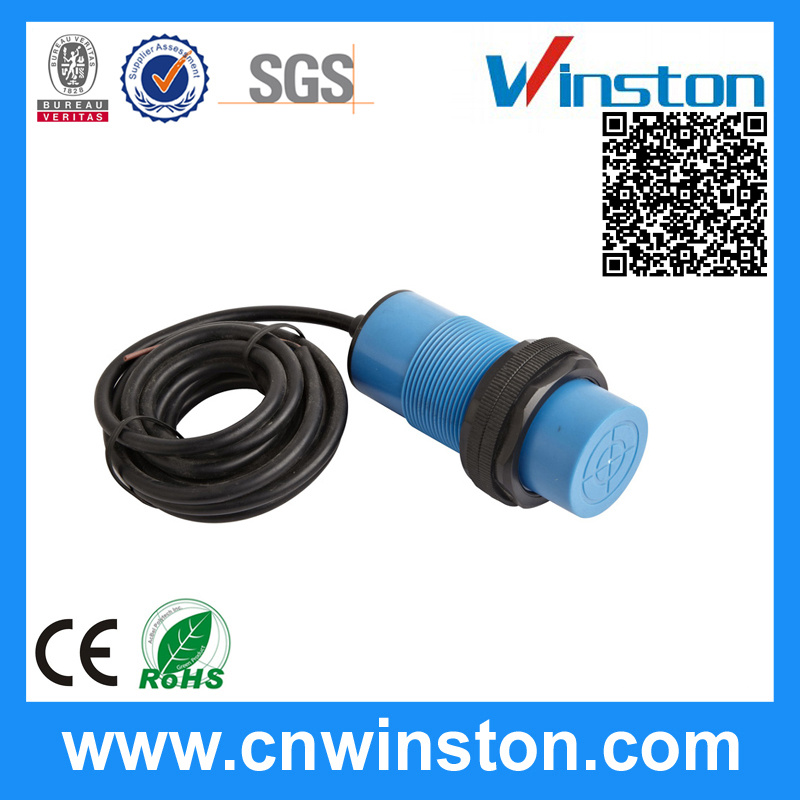

Product Description:
Compact volume
High precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof, vibration proof, water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Long service life
Technique parameter:
1. Switch category(LM: Inductance type; CM: Capactitance type; SM: Hall type; AM: Safety explosion-proof type; XM: Mimic linear type)
2. Outward appearance code(C: Cylinder type; F: Angular column type and planeinstallation type)
3. Operating voltage(30: 6-36VDC; 310: 5-24VDC; 320: 12-60VDC; 20: 90-250VAC; 210: 24-250VAC; 220: 380VAC; 40: 12-240VDC/24-240AC; 50: Special voltage)
4. Detection distance( 01: 1mm; 05: 5mm; 10: 10mm)
5. Output method (N: Three-line DC NPN output; P: Three-line DC PNP output; L: Two-line DC output; AC two-wire output; J: Relay output; NP: NPN+PNP output)
6. Output status(A: NO; B: NC; C: NO+NC; MU: Mimic voltage; MI: Mimic current)
7. Auxi function code(T: With connector; Y: Water proof, oil proof; I: Special requirement; H: High temp resistance; R: Ring type)
| DETECTION DISTANCE 10mm |
|
| Flush | DC 10-30V | NPN | NO | LM30-3010NAT3 |
| NC | LM30-3010NBT3 |
| NO+NC | LM30-3010NCT3 |
| PNP | NO | LM30-3010PAT3 |
| NC | LM30-3010PBT3 |
| NO+NC | LM30-3010PCT3 |
| two wire system | NO | LM30-3010LAT3 |
| NC | LM30-3010LBT3 |
| AC 90-250V | SCR Control-lable silicon | NO | LM30-2010AT3 |
| NC | LM30-2010BT3 |
| NO+NC | LM30-2010CT3 |
| Relay output | LM30-2010JCT3 |
| DETECTION DISTANCE 15mm |
| Non-Flush | DC 10-30V | NPN | NO | LM30-3015NAT3 |
| NC | LM30-3015NBT3 |
| NO+NC | LM30-3015NCT3 |
| PNP | NO | LM30-3015PAT3 |
| NC | LM30-3015PBT3 |
| NO+NC | LM30-3015PCT3 |
| two wire system | NO | LM30-3015LAT3 |
| NC | LM30-3015LBT3 |
| AC 90-250V | SCR Control-lable silicon | NO | LM30-2015AT3 |
| NC | LM30-2015BT3 |
| NO+NC | LM30-2015CT3 |
| Relay output | LM30-2015JCT3 |
| Controloutput | DC | 200mA |
| SCR/ Relay | 300mA |
| Output voltagc dropDC/AC | NPN/PNP< 3V, Two wire< 3.9V, AC< 10V |
| Consumption current | DC< 15mA, AC< 10mA |
| Standard detected object | 30*30*1(A3 iron) |
| Repeated precision | 0.05 |
| DC/AC | 200Hz/25Hz |
| Working environment temperature | -25~+70º C |
| Insulation resistance | 50MΩ |
| Shell material | Metal |
| Protection grade | IP67 |
| Altemative model at home and abroad | E2E-X18M |
