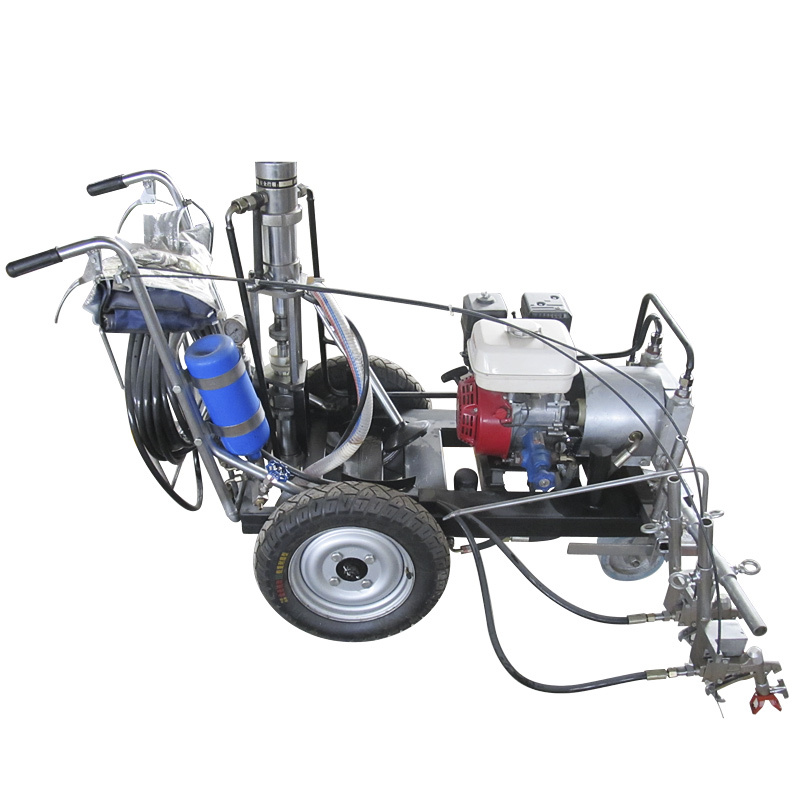

Lm30 Type Hydraulic Hand Push Room Temperature Marking Machine

Name: Lm30 Type Hydraulic Hand Push Room Temperature Marking Machine
Brand: China-Manufacturer-Directory.com
SKU: 704641862
Availability: InStock
Rating: 4.7 (124 reviews)

Supplier:	Shandong Lumei Traffic Facility Co., Ltd.
Price:	US $ 3500/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	LM30
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pump:	Piston High Pressure Coatings Pump
Engine:	Honda 5.5HP Gasoline Engine
Device:	Mechanical Control Automatic Reversing Device
Spraying Gun:	Special Spray Gun Adjustment on The Work Double,
Spray Nozzel:	Post Type Swirl Nozzle, Easily Solve The Congestio
Control Apparatus:	Unique Spray Gun Control Device
Pressure:	Large Flow,
Linetype:	It Can Draw Line, Single Line,Double Line and So O
Type:	Air-Assisted Airless Spray Equipment
Application:	Hardware Spraying Equipment
Certification:	REACH
Method Type:	Automatic

Product Description

LM30 type hydraulic hand push room temperature marking machine, simple operation, superior performance, low price, durable, high efficiency, is domestic most advanced marking machines at present,This marker for the airless spraying, coating of high-pressure pump to high up to 20 mpa (about 100 kg/cm2), make the coating (marking paint) by spray gun forced pressure spray to the road, let road marking paint combined with close, without micro bubbles, compactness and much higher than the brush and air spraying, line is durable, does not fall off.Simple to use, the function is all ready.

main technical parameters forHand-push Piston Pump High Pressure Road Marking Machine For Cold Paint LM30

Model		KM30
Pump	Piston high pressure coatings pump






Engine	Honda 5.5HP gasoline engine
Device	Mechanical control automatic reversing device
Spraying gun	Special spray gun adjustment on the work Double, in hand or fixed Hydraulic pressure spray gun, switch quickly, marking and tidy

Spray Nozzel	Post type swirl nozzle, easily solve the congestion problem
control apparatus	Unique spray gun control device, which can realize crossed in a garage into a regulation
pressure	Large flow, high pressure and the maximum pressure of 20 mpa, hydraulic table shows a reading of 10 mpa (supercharging effect of the hydraulic cylinder, hydraulic table shows reading about 1/2 of coating pressure), commonly used 15 mpa pressure (about 100 kg/cm2), hydraulic table shows readings for 7 mpa, maximum flow 8 l/min
linetype	It Can draw line, single line,double line and so on
Marking Speed	3-5 kilometer/hour,Using large nozzle can draw up to 2-4 km/h
working pressure	15mpa
Nozzle	Pillar type swing the hard edge nozzle

Width of spraying	5-40cm adjustable,equipped with two spray gun
Structure	Compact structure and multifunctional, high effeciency, operate easy
Dimension (LWH)	1400x1100x1000mm
weight	70kg
