Lmp40/10-H Peristaltic Type Squeeze Mortar Spraying Plastering Machine
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
Product Specifications
| Prod Model: |
LMP40/10-H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Customised |
| Condition: |
New |
| Certification: |
CE |
| Type: |
Shotcrete |
| Machining Process: |
Welded Molding Machine |
Product Description

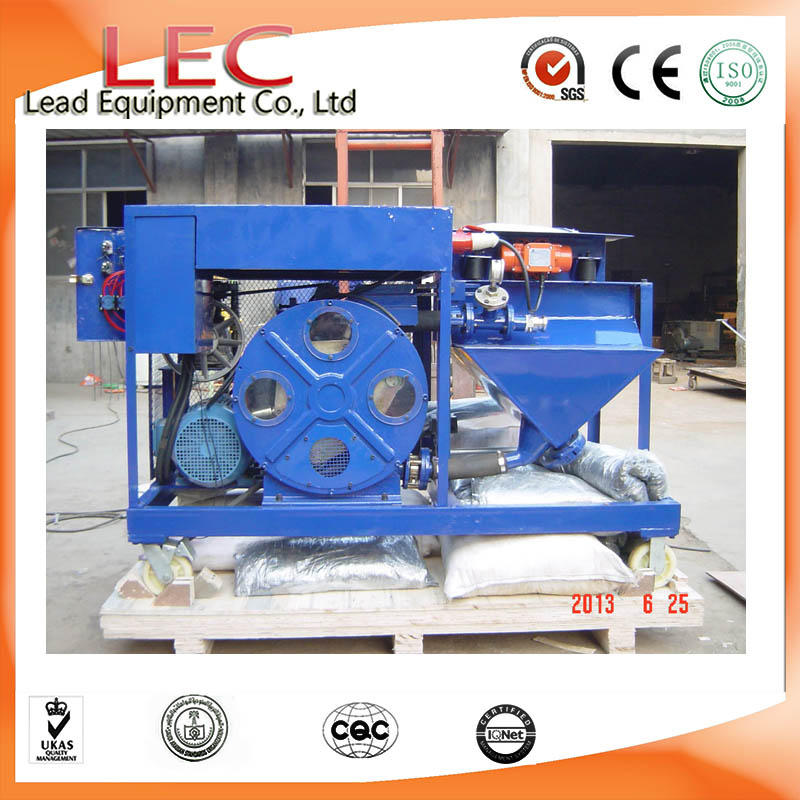

LMP40/10-H peristaltic type squeeze mortar spraying plastering machine
1. LMP40/10-H peristaltic type squeeze mortar spraying plastering machine Description:This pump is designed as the combination of LH38-430 hose pump (peristaltic type), mini air compressor and frequency converter.
Note: 1, the gearbox is heavy -duty Helical-bevel gear
2, WEG or China domestic electric motor can be optional.
3. we can also supply diesel engine type.
2. LMP40/10-H peristaltic type squeeze mortar spraying plastering machine Application:It is successfully used for spraying mortar in construction and 3D Panel, etc.
3. LMP40/10-H peristaltic type squeeze mortar spraying plastering machine Features:1. Rigid tooth flank helical gear
2. Nozzle specially design to get continuous spaying flow
3. Mini air compressor
|
Rated Output |
50L/min |
|
Rated Pressure |
4MPa(40bar/580PSI) |
|
Cylinder Dia. |
90mm |
|
Piston Stroke |
85mm |
|
Stroke/Minute |
95/min |
|
Inlet diameter |
75mm |
|
Outlet diameter |
50mm |
|
Max. Aggregate size |
5mm |
|
Water cement ratio |
1: 3 |
|
Power unit |
5.5KW(Electric); 10hp(diesel engine) |
|
10hp(Diesel)Chassis |
Skid or Tyre |
|
Weight |
450kg |
|
Overall Dimensions |
1715x1024x900(mm) |
Zhengzhou Lead Equipment Co., Ltd. Short name LEC, is a manufacturer specialized in R&D, manufacture and sale of shotcrete machine, gunite machine, gunning machine, grout pump, hose pump, concrete pump, mortar pump, foam concrete machine and other machines.
Now we have developed full series of dry-mix shotcrete machine and wet-mix shotcrete machine, output from 1.5m3/hour to 30m3/hour, electric motor, diesel engine, air motor and gasoline engine are available options for customization.
Shotcrete machine is mainly used for dry-mix shotcrete and wet-mix shotcrete. It has some obvious advantage such as advanced technology, perfect structure, stable performance, convenient operation and long service life etc. It is widely employed in mining, tunnel, culvert, subway, hydropower engineering, underground excavation engineering etc.
From years of experience Lead Equipment Co., Ltd. Has developed its own R&D and technician teams, which supports further development and customized service for clients.
We control quality of industrial hose pump throughout the whole process strictly, and certified by ISO9001: 2008, CE and SGS.
LEC has been exported to U. S. A, Canada, Mexico, Sweden, Spain, India, Malaysia, Singapore, Philippines, Indonesia, UAE, Colombia, Bangladesh, Pakistan, Thailand, Ukraine, Nepal, Bahrain, South Africa, Madagascar, and Korea etc., and has sales dealer/distributor in Malaysia, Ukraine, and Nepal. LEC products advantage is high quality with competitive price and excellent after-sale service.
