Product Specifications
| Prod Model: |
HT-LDC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage V: |
Range 0 ~ 300V Accuracy ± 05% ± 2d |
| Current A: |
Range 0 ~ 40A Accuracy ± 05% ± 2d |
| Power Kw: |
Range 0~12kw\Accuracy±05% |
| Power Factor: |
Range 03 to 0999 Accuracy ± 05% ± 2d |
| Output Mode: |
Each Power\Interval Power Optional |
| Count/Preset: |
0~999999 Times, Can Be Preset |
| Weight: |
100-500Kg |
| Power Source: |
AC220V |
| Type: |
Load Testing Tools |
Product Description

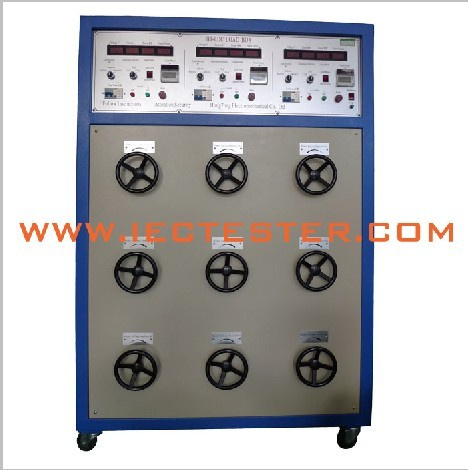

The load box is designed and manufactured according to IEC60884\IEC61058\IEC606691 standards and etc. It is applicable for household and similar fixed electrical installations switches and plug sockets breaking capacity and normal operation test, the rated voltage of the switch is not greater than 280V and the rated current less than 16A.
The load box has three independent stations, each with resistive, inductive and capacitive (fluorescent type) load three in one feature, they are switchable by adjusting the "Load Selection" switch. The interior of the load box is cooled by strong wind convection cooling. At the back of the load box there are wire connecting terminals, the load box outputs current voltage and power during the detection by connecting the wire with the test samples on the endurance test machine.
