Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type2: |
Skip Loader |
Product Description

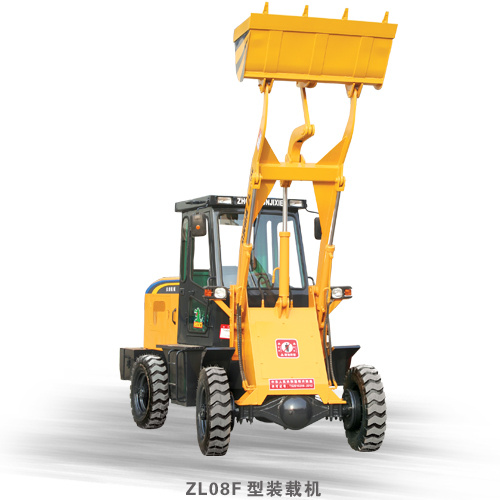

Loader
1. Using direct injection diesel engine as power, with easy startup and low oil consumption
2. With heavy-duty specific drive axle, own the ability to overcome obstacles, high load-carrying capacity.
3. Chassis uses hinged structure, with small turning radius and flexible turning, which applies to the operation in narrow space
4. This machine uses hydraulic operation, with simple structure, convenient operation, good performance and reliable quality
5. Deluxe cab with good view. Operating environment is comfortable and the deluxe seat can be adjusted. Not only for operate easily, naturally and accurately, but also good for reducing the fatigue.
6. Computer is adopted to optimize design for the bucket, which is with single tipping bucket cylinder, and "Z" type turning bucker structure, to realize the enormous shovel digging force.
7. Widely applying to the construction of agricultural engineering and small and medium building such as road, coal mine, brickyard, urban construction, kiln factory, stone material factory, prefabricated cement parts factory, etc.
|
|
ZL08F |
ZL10F |
ZL12F |
ZF918 |
ZL920 |
|
Motor |
C24 |
C 28 |
CZ2105 |
C4102 |
ZH4102 |
|
Rated Power |
17 kw, |
20 kw, |
25kw |
47 kw, |
47 kw, |
|
Rated Speed |
2200 r/min |
2200 r/min |
2400 r/min |
2400 r/min |
2400 r/min |
|
Bucket Capacity |
0.35 m3 |
0.5 m3 |
0.65 m3 |
0.7 m3 |
1.0 m3 |
|
Rated Load |
800 kg |
1000 kg |
1200 kg |
1800 kg |
2000 kg |
|
Total Weight |
1980 kg |
2700 kg |
2800 kg |
4000 kg |
5200 kg |
|
Max. Digging Force |
18 KN |
32 KN |
45 KN |
48.8 KN |
50 KN |
|
Lifting time of bucket |
4.8 S |
5 S |
5S |
5S |
5S |
|
Overall Length |
4300 mm |
4780 mm |
5200 mm |
5400 mm |
5650 mm |
|
Overall Height |
2330 mm |
2400 mm |
2600 mm |
2750 mm |
2800 mm |
|
Overall Width |
1430 mm |
1600 mm |
1680 mm |
1780 mm |
1900 mm |
|
Max. discharge height |
2450 mm |
2550 mm |
2700 mm |
3200 mm |
3200 mm |
|
Discharge distance |
700 mm |
800 mm |
900 mm |
900 mm |
900 mm |
|
Wheel base |
2000 mm |
2100 mm |
2100 mm |
2150 mm |
2450mm |
|
Tread |
1300 mm |
1350 mm |
1350 mm |
1450 mm |
1500mm |
|
Min Turning Radius |
4150 mm |
4150 mm |
4360 mm |
4500 mm |
4600 mm |
|
Tyre |
750-16 |
750-16 |
825-16 |
20.5/70-16 |
16/70-20 |
|
Driving System |
Mechanical drives |
Hydraulic converter |
|
Parking Brake |
Hand operated |
|
Steering System |
Articulated Frame with Mechanical steering |
|
Service Brake |
Four Wheel Hydraulic spread-shoed brake |
