Price: | US $ 120-320/Piece |
---|---|
Trade Terms: | FOB,CFR,CIF |
Min Order: | 1/Piece |
Pay Type: | T/T,Money Gram,Western Union |
Specifications | |||
Item | Description | ||
Operation system | Linux | ||
GUI | Setup system parameters with remote controller | ||
Security management | Support user password, supervisor password management; support encryption transmission | ||
Video | Video input/output | 4-channel video input, 1-channel video output; 1.0Vp-p, 75Ω | |
Dual stream | Support | ||
OSD | Time & date, vehicle ID, GPS etc | ||
Compression | H.264. Hi-silicon high performance processor is applied. | ||
Preview function | Single channel, 4-picture splicing preview, support event triggered full screen and splicing switching display function | ||
Video frame rate |
PAL: 100 frame/sec, up to 25 frame/sec for single channel NTSC: 120 frame/sec, up to 30 frame/sec for single channel |
||
Video resolution | CIF, HD1, D1, 4D1 adaptive | ||
Video quality | Level 1 to 4 video quality adaptive, level 1 best, level 4 lowest | ||
Video Bit Rate |
CIF: 256Kbps ~ 1.5 Mbps, 5 levels of bit rate optional HD1: 600Kbps ~ 2 Mbps, 5 levels of bit rate optional D1: 800Kbps ~ 3Mbps, 5 levels of bit rate optional 4D1: 800Kbps ~ 1.5Mbps, 5 levels of bit rate optional |
||
Audio | Audio input/output | 4-channel input; 1-channel output | |
Compression | G.726 | ||
Recording | Storage media | Support SD card with 64G maximum capacity | |
File format/system | ASF/ FAT32 | ||
Recording mode | Startup recording by default, support auto, timed, alarm & manual recording | ||
Recording search | Search recording video files by time, type, storage device, etc. | ||
Recording playback | Support local playback, support up to 4-channel synchronous playback, and analyze the vehicle message in the file at the same time | ||
Support fast forward, fast backward, play, pause controls, support 2, 4, 8, 16 times speed fast forward or fast backward, support the control of playback by time | |||
Alarm | Alarm input | 6-channel I/O alarm input | |
Alarm recording | Pre-recording function, 15 seconds pre-recording of alarm, recording time after alarm can be adjusted in between 30 sec ~ 30 min | ||
Alarm output | 1-channel alarm output | ||
Storage space | Support the setting of remain storage space alarm function | ||
Functional alarm | Over-speed alarm, g-sensor alarm, voltage alarm, snapshot alarm, motion detection alarm | ||
Communication interface | RS232, RJ45 10M/100M self-adaption Ethernet interface | ||
Wireless transmission (optional) | Built-in 3G wireless transmission module, WCDMA, CDMA2000, TD-SCDMA system optional; Compatible with GPRS, EDGE; Built-in Wi-Fi module for optional; | ||
GPS (optional) | Support external GPS module | ||
Data remote transmission | Support 3G/Wi-Fi transmission, Wi-Fi priority transmission strategy, remote download; | ||
PTZ control | Support PTZ control function by local remote controller or client software; | ||
Parameter configuration | Support parameter configuration | ||
G-sensor | Built-in | ||
System upgrade | Support SD card / Remote upgrade | ||
Power supply & consumption | Power supply management | ACC startup/shutdown; Hard disk lock startup/shutdown; Delay shutdown; Timing startup/shutdown | |
Input voltage | DC:+8V ~ +36V | ||
Output voltage | +12V@4*0.5A;[email protected] | ||
Power-off protection | Patent UPS power-off protection technology for optional, ensure the integrality of recording data when accidental power failure occurs | ||
Power consumption | Less than 10W in normal working state; less than 0.5W in standby mode | ||
Working environment | Temperature |
Normal:-20°C~ +60°C Hard disk pre-heating: -25°C~ +60°C |
|
Humidity | 10% to 95% | ||
Dimension | 142(W) x36(H) x123(D) mm. | ||
Weight | Net weight:550g, gross weight:1000g |

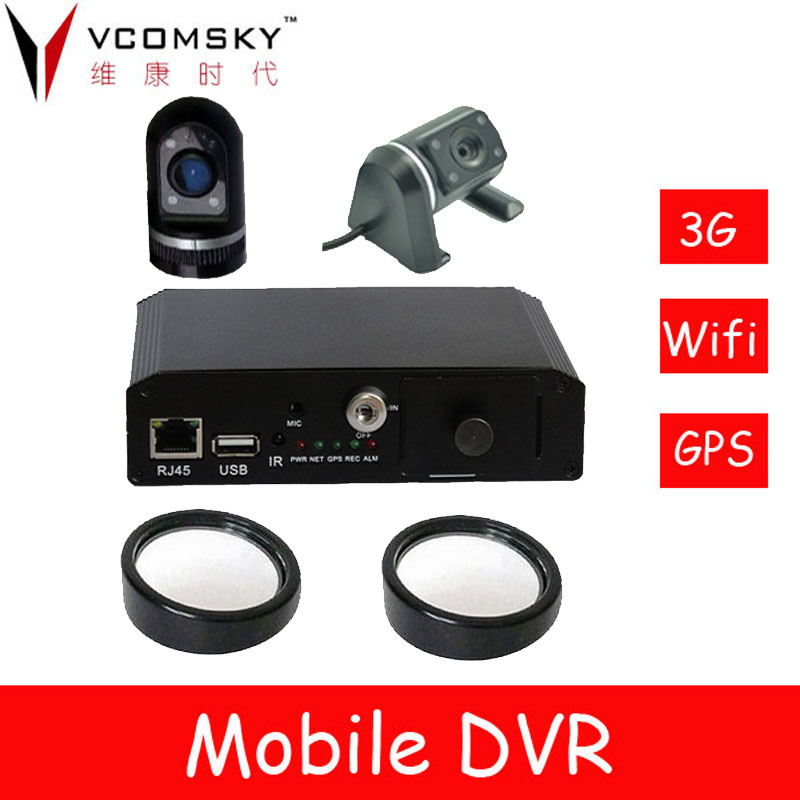

Prod Model: | VC-MDR S8000-GE |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Operation System: | Linux |
Gui: | Setup System Parameters with Remote Controller |
Security Management: | Support User Password, Supervisor Password Managem |
Video Input/Output: | 4-Channel Video Input, 1-Channel Video Output; 1.0 |
OSD: | Time & Date, Vehicle ID, GPS etc |
Compression: | H.264. Hi-Silicon High Performance Processor Is Ap |
Video Resolution: | CIF, HD1, D1, 4D1 Adaptive |
File Format/System: | Asf/ Fat32 |
Recording Search: | Search Recording Video Files by Time, Type, Storag |
Functional Alarm: | Over-Speed Alarm, G-Sensor Alarm, Voltage Alarm, S |
Compression Format: | H.264 |
Interface: | BNC |
