Shenzhen C Creative Trading Co., Ltd. >> Locking Assembly Parts

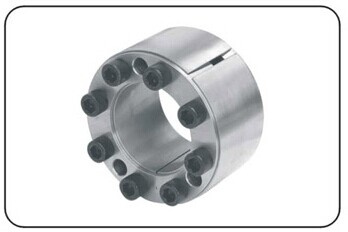

Locking Assembly Parts

Name: Locking Assembly Parts
Brand: China-Manufacturer-Directory.com
SKU: 735690355
Availability: InStock
Rating: 4.9 (94 reviews)

Supplier:	Shenzhen C Creative Trading Co., Ltd.
Price:	US $ 0.5-500/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	Z4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	as Below
Material:	Stainless Steel
Standard:	BSW
Connection:	Flange

Product Description

Advantage of our company:
1. Price advantage compare with the trading company, as we have our own factory .
2. compare with the factory we are easy communicated.
3 our products were produced under strict quality test system.
5. More than 10 years industry experience
6. Accept OEM, customization, customers' logo
7. The shortest delivery time
8. Welcome mini order
9. Multiplex-method of payment: Western Union, paypal,T/T,L/C at sight
10. Special discount and protection of sales area provide to our distributors.
we are worthy of an enquiry.

Product description
Adapter Sleeves is used for fixing conical self-aligning bearing (self-aligning ball bearing, self-aligning roller bearing) on the shaft without shoulder with simple structure, reliable operation and convenient change. It is widely in the belt conveying equipment in the fields of textile, light industry, paper-making industry, metallurgical industry. The Adapter Sleeves is composed of tapered adepter bush, locknut, lock washer (or retainer). The Adapter Sleeves with locknut and lock washer is only replaced with whole set. The parts not from same resource are not changeable.

Packaging & Shipping
1. Industial packing(Tube packing)----Low cost
2. 20Pcs tube packing-----Low cost, good Looking
3. 1Pcs Color box packing-----Good Looking for retail sale
Outer Cartons
1.Brown Neutral carton
2.Colorful carton with brand
Pallet
1.Wood pallet
2.Plastic pallet

dimension(mm)					Rated load		P_t(N/mm 2 )	M _a (N.m)	Weight (kg)
d	D	l	L	L₁	F_tkN P_ax(M_t=0)	M_tkN.m P_ax(M_t=0)	P_t(N/mm 2 )	M _a (N.m)	Weight (kg)
70	120	56	62	74	197	6.85	201	145	3.3
80	130	56	62	74	291	11.65	263	145	3.7
90	140	56	62	74	290	13.00	234	145	4.0
100	160	74	80	94	389	19.70	213	230	7.2
110	170	74	80	94	483	22.60	242	230	7.7
120	180	74	80	94	482	28.90	222	230	8.3
125	185	74	80	94	480	30.00	212	230	8.5
130	190	74	80	94	480	31.20	205	230	8.8
140	200	74	80	94	574	40.20	227	230	9.3
150	210	74	80	94	572	42.90	212	230	10.0
160	230	88	94	110	800	64.00	227	355	14.9
170	240	88	94	110	795	67.00	214	355	15.7
180	250	88	94	110	923	83.00	235	355	16.4
190	260	88	94	110	921	88.00	223	355	17.2
200	270	88	94	110	1050	105.00	242	355	18.8
210	290	110	116	134	1118	117.30	197	485	23.0
220	300	110	116	134	1120	123.00	189	485	27.7
240	320	110	116	134	1280	153.00	198	485	29.8
250	330	110	116	134	1282	160.20	205	485	31.0
260	340	110	116	134	1430	186.00	205	485	32.0
280	370	130	136	156	1650	230.00	192	690	46.0
300	390	130	136	156	1650	245.00	179	690	49.0
