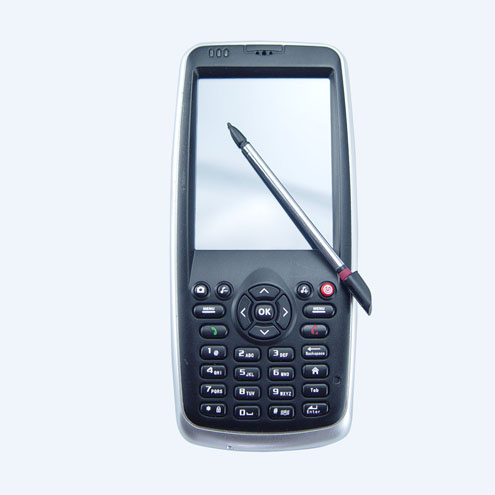

Product Specifications
| Prod Model: |
BEI360 |
| Memory Capacity: |
512MB |
| Type: |
Smartphone |
| OS: |
Windows |
| Screen Size: |
Color Touch Screen |
| CPU Type: |
Hisilicon K3 |
Product Description
Features:
1. Powerful performance
BEI360 is with high speed 533MHz processor, windows mobile6.5 OS. Integrate Huawei stable performance CPU. It provides large capacity memory of 128MB SDRAM 256MB ROM and support expansion memory up to 32G via Micro-SD card, ensures users run application smoothly.
2. Rugged smart terminal
With compact pocket-size design, BEI360 fits naturally in one hand, besides, handheld belt ensure user easy take. With IP54 protection, it can withstand 1.5m multiple drop onto concrete.
3. Barcode scanner
BEI360 is with built-in 1D CCD or Laser barcode scanner, and can easily transmit data information by Wi-Fi or GPRS in real time.
4. Field Mobility
With built-in SiRF GPS module ensures simple and fast detection of current location and thus accelerated positioning and navigation. It enables mobile workers to track the current location and to optimize the routes for field service. Voice communication improves mutual better contact.
5. Multiple Function
BEI360, with superior voice communication and data transmit features offers performance as a smart phone.
With 13.56Mor 125kHz RFID function.
1.3 Mega Pixel camera, with LED flash light, enable user capture images.
6. Market/ Application
BEI360 can be widely use for Logistics; Parking management; Field service; Mobile data collection; Cargo & workforce Monitoring; Spot Ordering; Post/parcel delivery; Warehouse management etc.
7. Logistics Spot ordering use PDA/Windows Mobile 6.5 smart phone/HF LF RFID reader/1Dimension CCD Laser barcode scanner/GSM GPRS with camera bluetooth
|
BEI360 Specifications |
|
Model No. |
BEI360 |
|
Operation System |
Windows Mobile 6.5 |
|
CPU |
Hisilicon K3, ARM 926E, 533MHz |
|
Memory |
128MB RAM + 256MB Flash ROM |
|
Expansion (MicroSD): 32G (Maximum) |
|
Display |
3.2'' TFT QVGA color touch screen; resolution 240*320 dpi |
|
Entry Method |
12 alpha/numeric keys, 12 function keys, 5 navigation keys, 2 scan keys, 1 reset key; |
|
Attached stylus |
|
Communication |
WLAN: IEEE802.11b/g |
|
USB/Serial port: Micro USB 2.0 |
|
Audio: Speaker/microphone |
|
GSM/GPRS: 850/900/1800/1900MHz (voice communication) |
|
Bluetooth: Ver. 2.1 + EDR class 2.0 |
|
Power |
Rechargeable 3.7V, 2400 mAh battery; Enclosed power supply,desktop charger; |
|
Charging time: 6~7 hours |
|
Functions |
RFID: LF:125khz/134.2Khz HF:13.56M |
|
Barcode Scanner: CCD/ Laser barcode scanner (optional) |
|
GPS: Integrated SIRF |
|
Camera: 1.3 mega pixel, Auto-focus, with flashlight |
|
Physical |
Dimensions (w x d x h): 152mm x 68mm x 27mm |
|
Weight: 260g (Include battery) |
|
Case: Black |
|
Durability |
Temperature in Operation: -10 to 50 °C |
|
Temperature in Storage: -40 to 60 °C |
|
Humidity in Operation: up to 90% (non-condensing) |
|
Humidity in Storage: up to 90% (non-condensing) |
|
Drop Test: 1.5m drop onto concrete |
|
Protection Rate: IP54 |
Barcode Electronics Industry Co.,Ltd. is an industrial PDA producer providing software and hardware OEM service. With over 10 years continuous efforts, the company now has excellent research develop team and manufacture competitive and good quality handheld PDA. Our main products include: 1D/2D laser CCD barcode scanner, UHF HF LF RFID card reader, Android Tablet PC Pad, Android Smart Phone, 3G Waterproof Mobile phone, bluetooth barcode thermal printer, laser bluetooth data collector, NFC RFID barcode card reading.Our products can be widely used in the fields of Logistics management, Finance, Retail, Government Monitoring, Healthcare,medical management, Warehouse Management, Asset Management, Food Industry, Ticketing printer, data collection system,etc.
