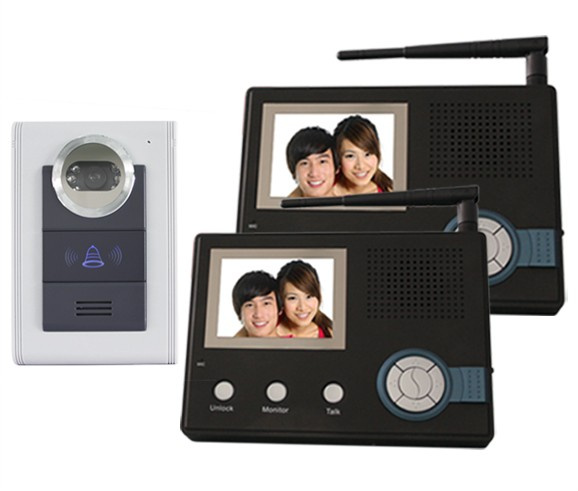

Long Distance Wireless Intercom System

Product Specifications

Prod Model:	TL616206 1+2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Adapter:	EU, Us, UK, Australia
Power Source:	Battery
Style:	One-to-Many
Wireless:	Wireless
Type:	Intercom Doorbell

Product Description

Long Distance 3.5inch Wireless Intercom System
1camera to more than 1monitors, at most 4monitors

Advantage:
Indoor unit with 3colors available: Black, antenna outside
Waterproof outdoor camera, use it outside
Photo function, record the pictures of visitors
Wireless, no need wire cable
Both wall-mount and desktop design for indoor unit
12chords for option as doobell
1outdoor can support 4monitors
Both outdoor and indoor unit with battery to work
with alarm function, when someone steal, it will alarm.
Description:
2.4GHz frequency, wireless transmission range is up to 250meters without obstructions.
Indoor units use 3.5inch TFT color display.
Easy to install, no wiring required for monitor, place it anywhere
Rain-proof camera, it work with no problem in rainy days
Unlock the door remotely using electronic lock (sold seperately)
Automatically capture Visitor's picture (even you are not at home) when visitor press call button
Camera with 6-LED for Night vision in the dark
Completely handsfree talking just after press talk button
Press monitor button anytime to view outside like surveillance camera (you can even hear the outside sound by pressing the TALK button) for 24hours
Indoor monitor with built-in rechargeable Lithium battery
Exact lithium battery Nokia BL-5C for outdoor unit
Built-in selectable 12PCS doorbell chime
Both units with built in antenna
1Camera with 2.3.4 monitors.
Monitor color available: Grey, red or white
Pass CE, RoHS approval
Where to Use it?
It is regularly used in villa, single house, single household which need 4screens.
Why choose it?
In modern life, Time is money and people is tired on working. The wireless video door phone is easy to replace the old wired video doorphone, since it bring more conventient but security life to people.

Specification:
Outdoor Camera

Camera Lens CMOS 300, 000 pixel
Diagonal is 120 degrees
Viewing Angle is 90 degrees
Night View 6PCS LED light / Infrared Light
Material ABS Plastic +Aluminum alloy
Input power 100-240VAC 50/60Hz
Output power DC 12V; 1A
Battery 3.7V, 1000mAh li-battery
Power Standby: 0.2W, Unlock: 12W
Wireless transmitting range Up to 350 meters in open air
Working Temperature 59F ~ 131F
Channels 64
Net Weight 140g / 0.3 lb
Power consumption Standby: 0.2W
Unlock: 12W
Modulation mode FHSS
Transmission power 17dBm
Size 103x150x30mm
Full charge time
Standby day 3hours
7days

Indoor Monitor
Monitor Screen 3.5 inch color screen
Resolution 320 x 240
Input power 100-240VAC 50/60Hz
Output power DC 5V; 1A
Battery type 3.7V 1350mAh Li-ion battery
Battery charging time
Standby day 3 hours (5 hours for 1st time charging)
7days
Power Consumption Standby: 0.1W, working: 2W
Modulation model FHSS
Communication 2.4GHz
Transmission Power 17dBm
Channels available 64
Memory Store up to 255 images of visitors
Net Weight 315g / 0.7 lb
Dimensions 185 W x 133 H x30 D mm

For example 1 to 2monitors Package Contents:
1 x CMOS Camera with 2.4 GHz Wireless Transmitter
2 x 3.5 Inch Screen Monitor with 2.4 GHz Wireless Receiver
2 x Wall Mounting Bracket for indoor monitor
2x 100-240V Power Adaptor for indoor monitor
1 x 100-240V Power Adaptor for outdoor Camera
1 x Li-ion battery for outdoor camera
1 x English Version Operation Manual
