Product Specifications
| Prod Model: |
ALF-P526 |
| Markets: |
South America,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Description: |

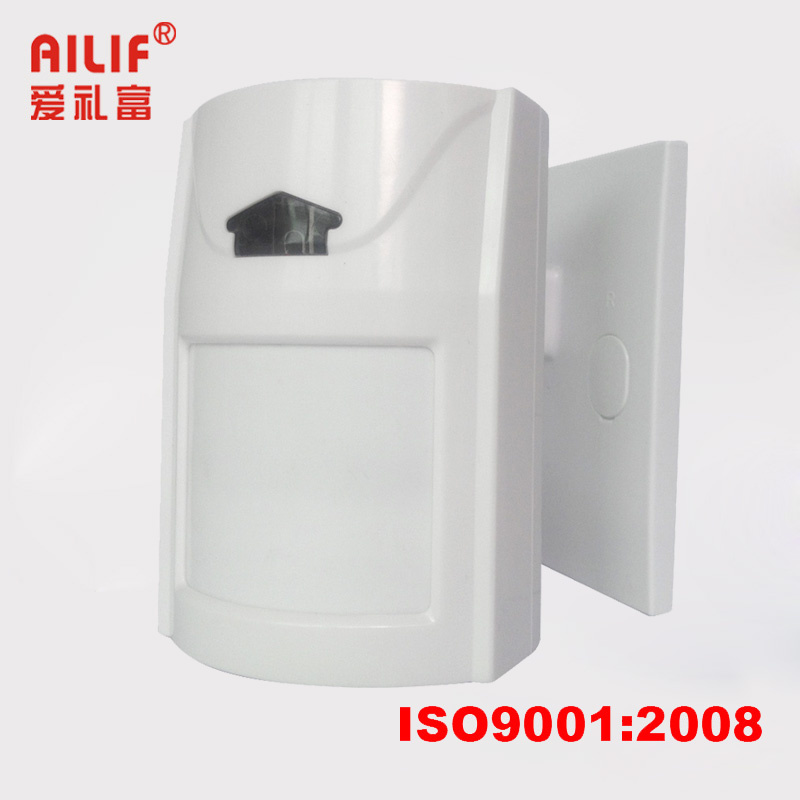

Long Range Passive Infrared Sensor Alf-P526 |
| Working Voltage: |
DC10V~16V(DC10V~24V Optional) |
| Working Current: |
≤20mA (DC12V) |
| Detection Distance: |
12m |
| Detection Angle: |
100 Degree |
| Mounting Heigh: |
Suggest 2.2m |
| Demension: |
90mm*62mm*44mm |
| Sensor Type: |
Pyroelectric Infrared Sensor |
| Color: |
White |
| Case Material: |
PC |
Product Description
Description of Long Range Passive Infrared Sensor:
The product is a wired wide angle PIR detector. It adopts advanced technology in signal processing, and provides an excellent detection ability. When an intruder enter into the detecting area, an infrared heating signal, received by the fresnel lens, would be sent out and focused on the infrared sensor. After compare, analysis and calculation by a microprocessor, it would output an accurate alarm signal. It is used for safety protection in the dwelling houses, villas, plant warehouses, shopping malls offices and so on.
Features of Long Range Passive Infrared Sensor:
1. Adopting MCU control for PIR detector
2. Auto temperature compensation
3. Anti white light strength>6500LUX
4. Alarm output: NC/NO optional
5. Pulse counting 1P/2P optional
6. LED ON/OF optional
7. Adopting SMT design, superhigh ability of diamagnetism
8. Environment humidity: ≤ 95%RH(no condensation)
9. Alarm switch: Electromagnetic relay or solid state optronics relay optional
10. Alarm output: NC/NO optional Contact capacity: 28VDC, 100mA
11. Anti-tamper switch: Normal closed, no voltage output Contact capacity: 28VDC, 100mA
12. Demension: 90mm*62mm*44mm
Advantage of Long Range Passive Infrared Sensor:
1. The same product, the lowest price.
2. The same price, the best quality.
3. The same quality, the fast delivery time.
To provide our customers with best price and quality is our long term target.
Company Introduction:
(1)Having our own factory which provides you the most competitive price for Long Range Passive Infrared Sensor.
(2CE, FCC, ROHS, IP55 for some products and ISO9001 certificate make you satisfied with quality when using our products.
(3)Professional team provide you the latest design and satisfying sevices.
Thanks for your time of viewing.
Please contact me freely to get more information for Long Range Passive Infrared Sensor.
|
Model |
Long Range Passive Infrared Sensor ALF-P526 |
|
Working voltage |
DC10V~16V(DC10V~24V optional) |
|
Working current |
≤20mA (DC12V) |
|
Detection distance |
12m |
|
Detection angle |
100 degree |
|
Mounting |
wall mounted |
|
Mounting height |
suggest 2.2m |
|
Type of sensor |
dual low noise pyroelectric infrared sensor |
|
Operating temperature |
-10degrees~+50degrees |
|
Environment humidity |
≤95%RH(no condensation) |
|
Alarm switch |
electromagnetic relay or solid state optronics relay optional |
|
Alarm output |
NC/NO optional;Contact capacity: 28VDC, 100mA |
|
Anti-tamper switch |
NC, no voltage output;Contact capacity: 28VDC, 100mA |
|
Demension |
90mm*62mm*44mm |
