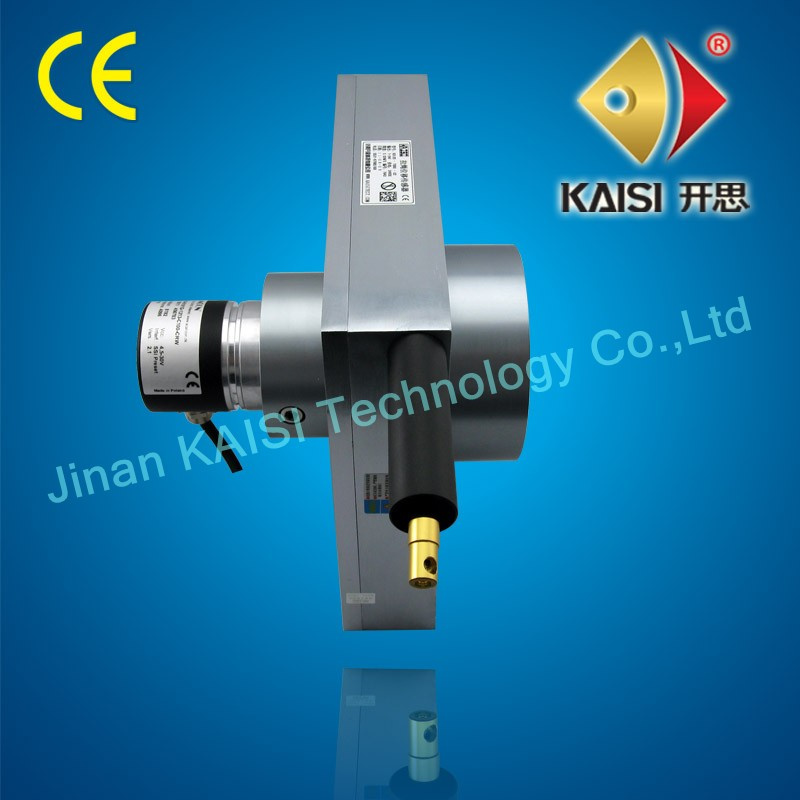

Long Stroke Rope Position Sensor 20 Meters Ks180-20000 Pull Wire Encoder Potentiometer

Name: Long Stroke Rope Position Sensor 20 Meters Ks180-20000 Pull Wire Encoder Potentiometer
Brand: China-Manufacturer-Directory.com
SKU: 678367732
Availability: InStock
Rating: 4.8 (72 reviews)

Supplier:	Jinan Kaisi Technology Co., Ltd.
Price:	US $ 1020/Piece
Min Order:	5/Piece
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Prod Model:	KS180-20000 series
Usage:	Position Sensor

Product Description

Series KS180
1. Output types:
-Analogue: Potentiometer, 0-10V, 0-5V, 4-20mA
-Digital: TTL/push-pull/OC
-Digital-Abosoute: SSI,
2. Linearity
-Analogue output ± 0.1% of FS
-Digital/Digital-absolute ± 0.5% of FS

About KAISI:
Jinan KAISI Technology Co., Ltd is located in Shangdong Province of China, KAISI is a manufacturer of high quality draw wire position sensor for industrail use.
KAISI has been the largest research and development sites and manufacture in China by now, and has a dozen patents for utility model and appearance. All of the positon sensor have been certificated by CE.
If you want to order a large quantity, pls contact me to negotiate price.

We have an online store, the short name is Jinan KAISI. If my trademanager is not online, please leave me a message and there will be my telephone number and email address in the Auto-response.

Output type	Digital	Analogue
Effective stroke	0-20, 000mm	0-20, 000mm
Sensor element	Encoder	Potentiometer
Stainless steel	0.8mm, 1.0mm, Plastic-coated	0.8mm, 1.0mmPlastic-coated
Output	OC(PNP) Push-pull	0-5KΩ , 0-10KΩ , Customised
	TTL	4-20mA(Two-wire/Four-wire system)
	SSI	0-5V; 0-10V; (Three-wire/Four-wire system)
Translation circute	No	Built-in, External, External module
Output zero and output full	No	Adjustable
Linearity	± 0.05%FS	± 0.1%FS, ± 0.25%FS, ± 0.5%FS
Repeatability	0.01%	0.01%
Resolution(mm)	0.25, 0.15, 0.075, etc	Infinitesimal
Max. Velocity	2000mm/S	2000mm/S
Vibration frequency	50HZ	50HZ
Response frequency	300K Hz	2000HZ
Power	Due to output	< 1W
Working voltage	5V 5-24V	10-30V(built-in), 12V, 24V, 28V(outlay)
Starting force	15N	15N
Weight	5000g	3000g
Working temp range	-25C-+85C	-45C-+125C
Service life	> 5 Mio; > 10 Mio	> 5 Mio; > 10 Mio
Anti- vibration	10HZ-1500HZ; 10G	10HZ-1500HZ; 10G
Cable length	4M (standard)	2M(standard)
Housing component	Titanium-anodised Aluminium, the coating is a hartanodic oxidation that protects the sensor from corrosion	Titanium-anodised Aluminium, the coating is a hartanodic oxidation that protects the sensor from corrosion
Protection Class	IP65	IP65

Jinan KAISI Technology Co. Ltd is located in Shandong Province of China, KAISI is a manufacturer of high quality draw wire position transducers fo industrail use. Due to its small overall size, its short assembly time and it is a cost-effective and flexible solution for a wide range of industrail application.
