Product Specifications
| Prod Model: |
MSFP-1.25G-LX |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wavelength: |
1310nm |
| Connector: |
Duplex LC Connector |
| Support: |
Single 3.3V Power Supply |
| Distance: |
10km |
| Data Rate: |
1.25GB/S |
| Hot-Pluggable SFP Footprint: |
Support |
| Operating Temperature Range: |
-40c to 85c |
| Ddm: |
Support |
| Vcc: |
3.15 to 3.60 Volts |
| Certification: |
RoHS |
| Connection Structure: |
LC |
| Application: |
Communication |
| Type: |
Single-Mode or Multi-Mode Fiber Optical |
Product Description

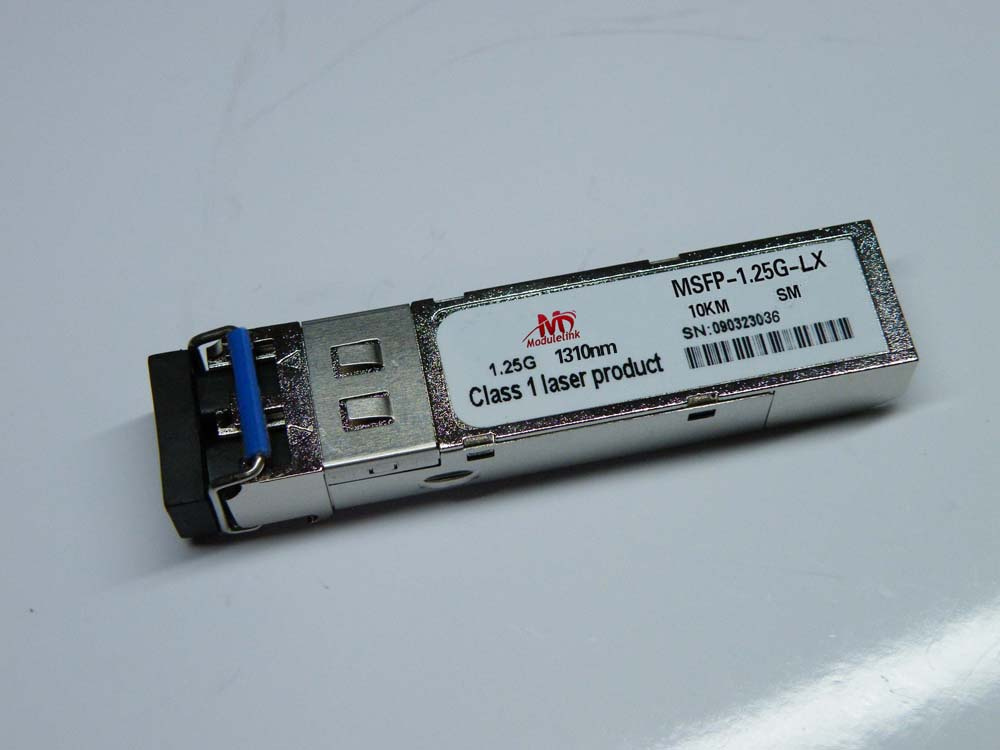

Long-wavelength ge SFP, LC connector lx/lh transceiver 10km transceiver msfp-1.25g-lx
Product features
Up to 1.25 GB/s bi-directional data links
Hot-pluggable SFP footprint
1310nm fabry-perot laser transmitte
Duplex LC connector
Low power dissipation
Metal enclosure, for lower EMI
Up to 10km on 9/125µ M smf
Single 3.3V power supply
Operating temperature range: -40c to 85c
Applications
1.0625GB/s fibre channel
1.25GB/s gigabit ethernet
Notes:
1. Connected directly to tx data input pins. AC coupled thereafter.
2. Or open circuit.
3. Into 100 ohms differential termination.
4. 20 to 80 %
5. Loss of signal is lvttl. Logic 0 indicates normal operation; Logic 1 indicates no signal detected.
6. Receiver sensitivity is compliant with power supply sinusoidal modulation of 20 Hz to 1.5 MHz up to specified value applied through the recommended power supply filtering network.
